Frame
Single die-cast magnesium (60 x 22 x 41")
-
Rims
Black magnesium
-
Tires
20" x 2.125"
-

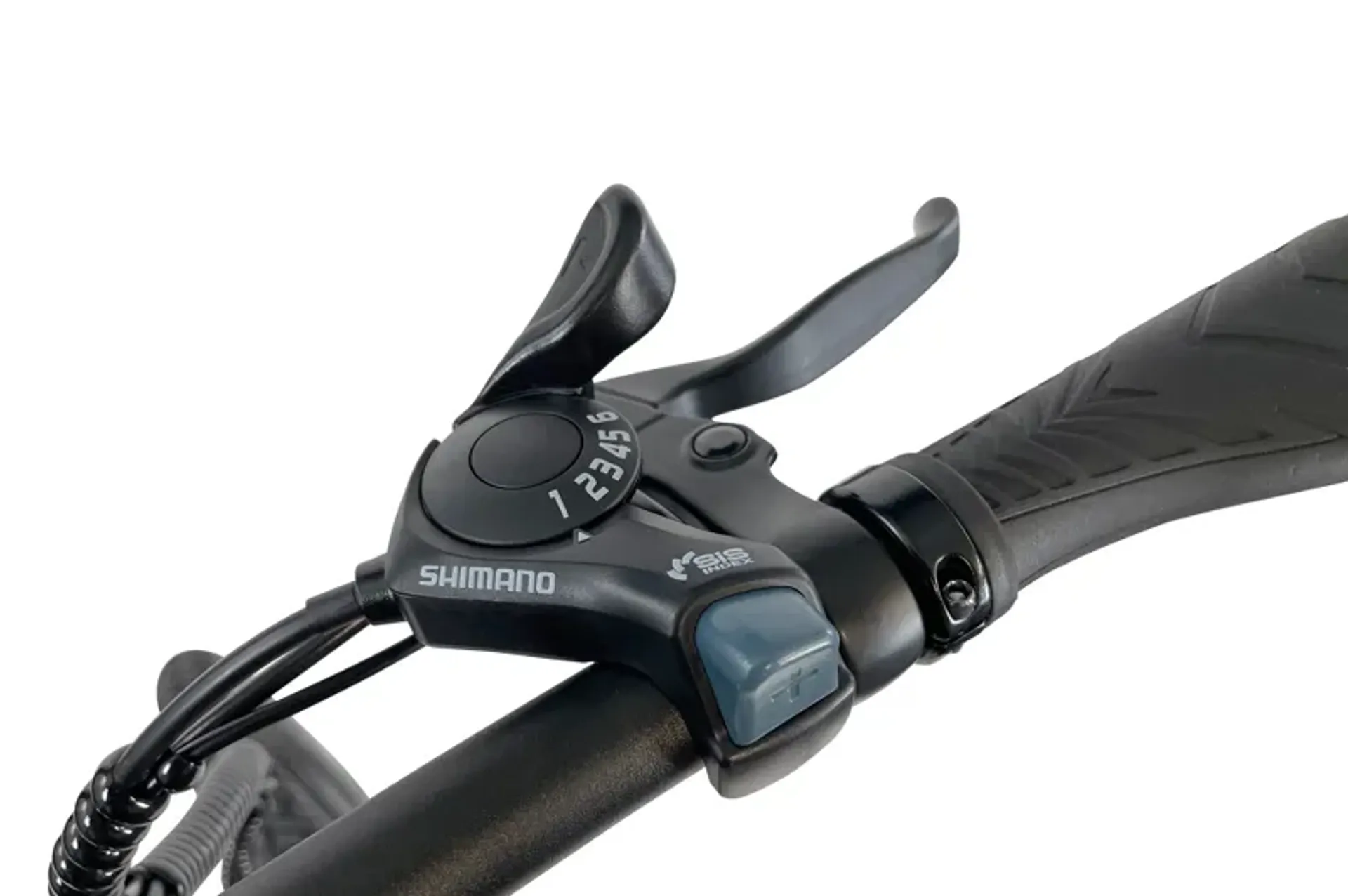

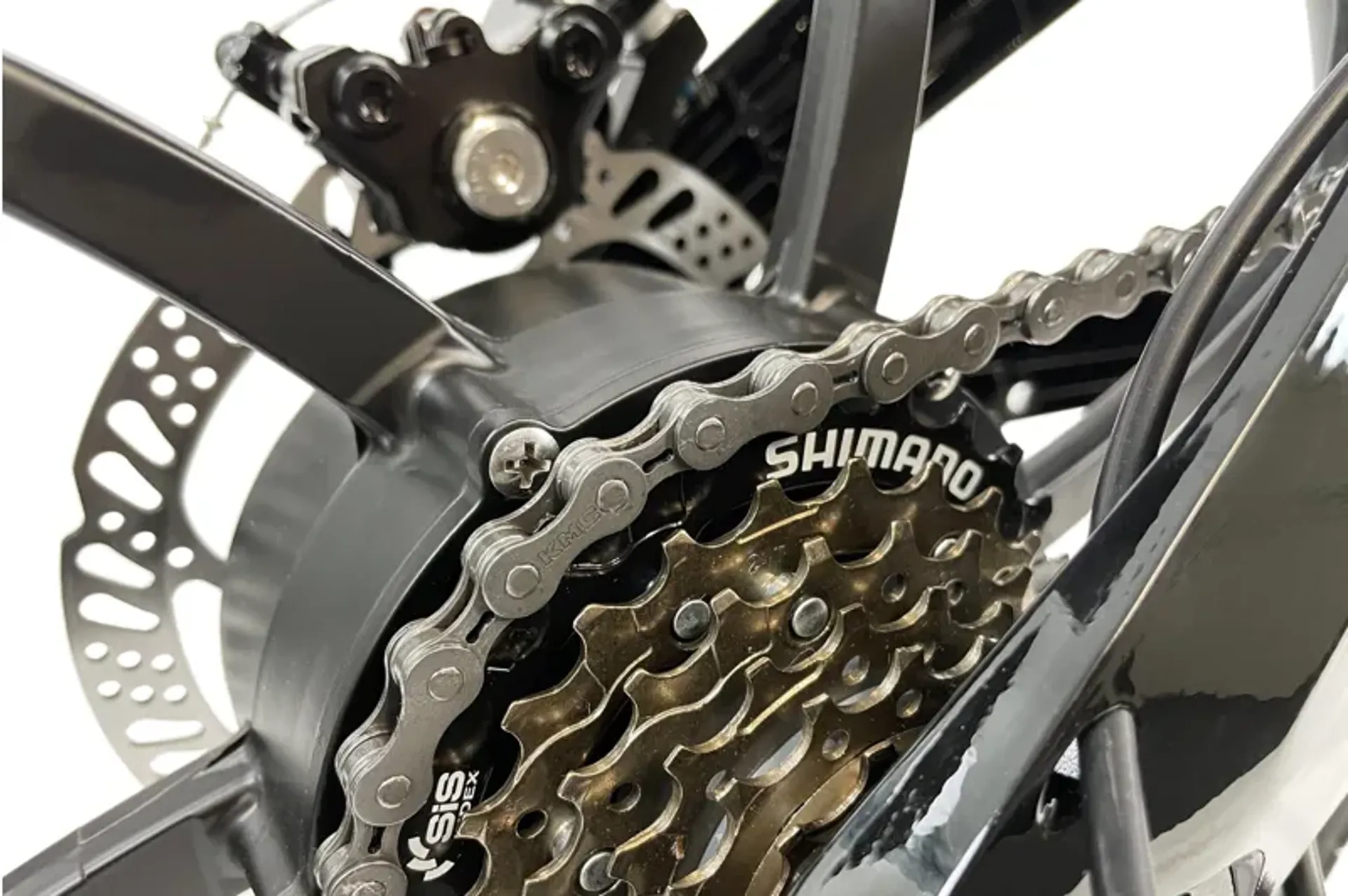

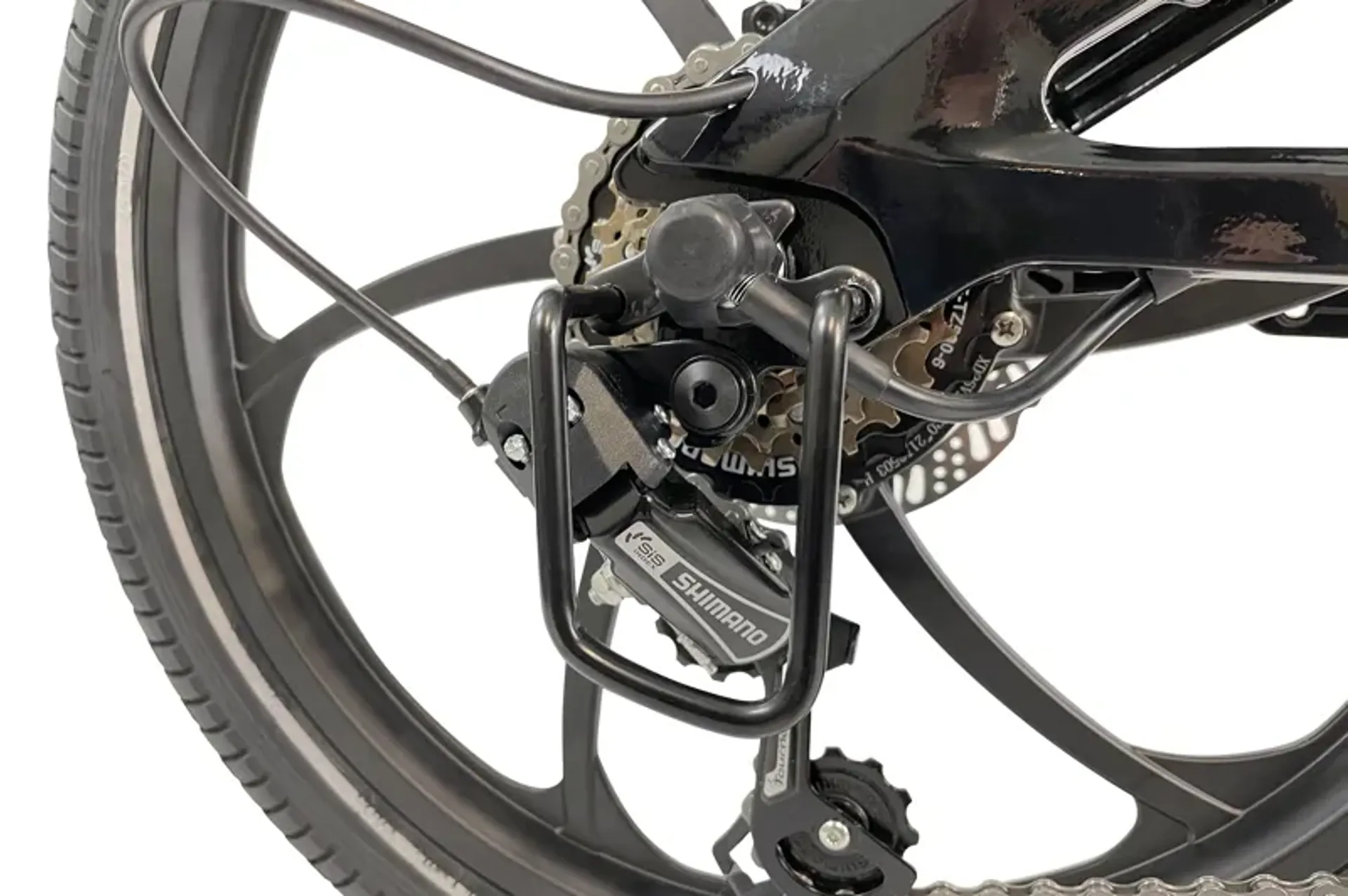

Gears
Shimano 6-speed SIS derailleur (44T/14T-28T)
-
Brakes (front/rear)
Disk brakes, 160mm front / 180mm rear
-
Headset
Semi-Integrated
-
Maximum riding weight
265 lbs (120 kg)
-
Motor
Integrated in the rear wheel, DC 36V/350W, 40~45 Nm, brushless, maintenance-free
-

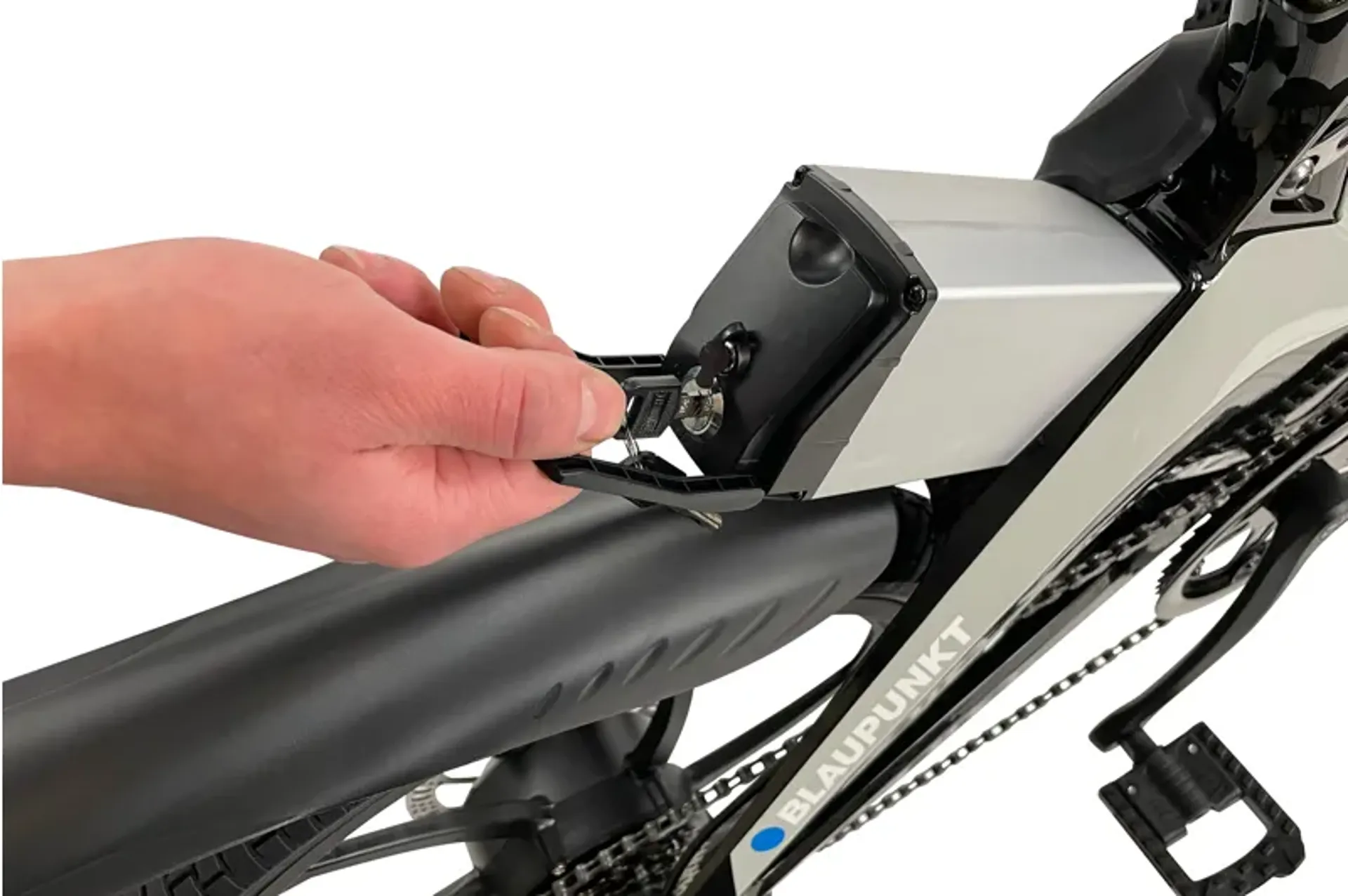

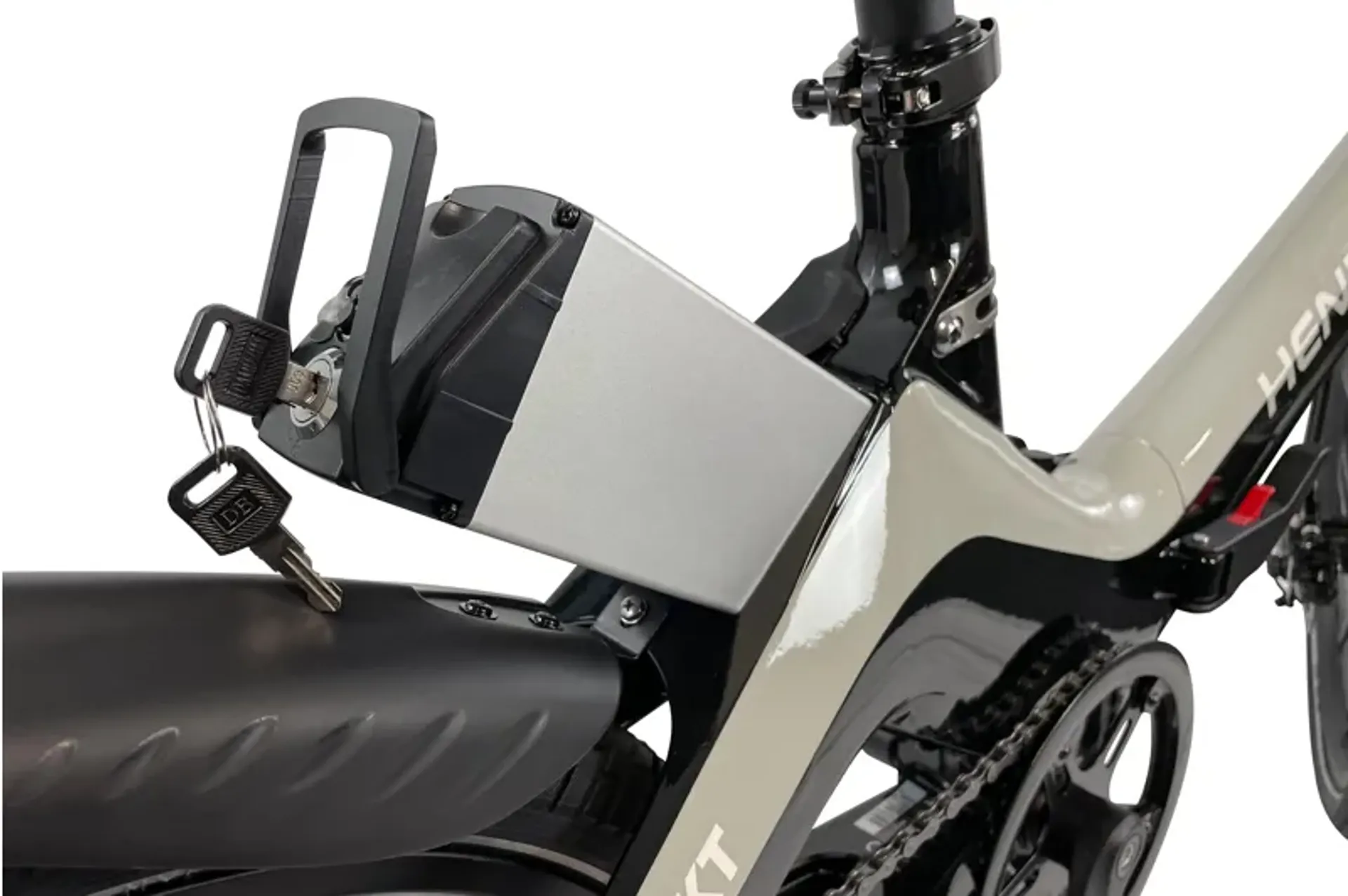

Battery
36V/10.5 Ah LG lithium-ion battery with integrated BMS (Battery Management System)
-
Controller
36V/15A DC
-
Sensors
Cadence & speed sensor
-
Driving modes
3 levels of pedal and throttle assist
-

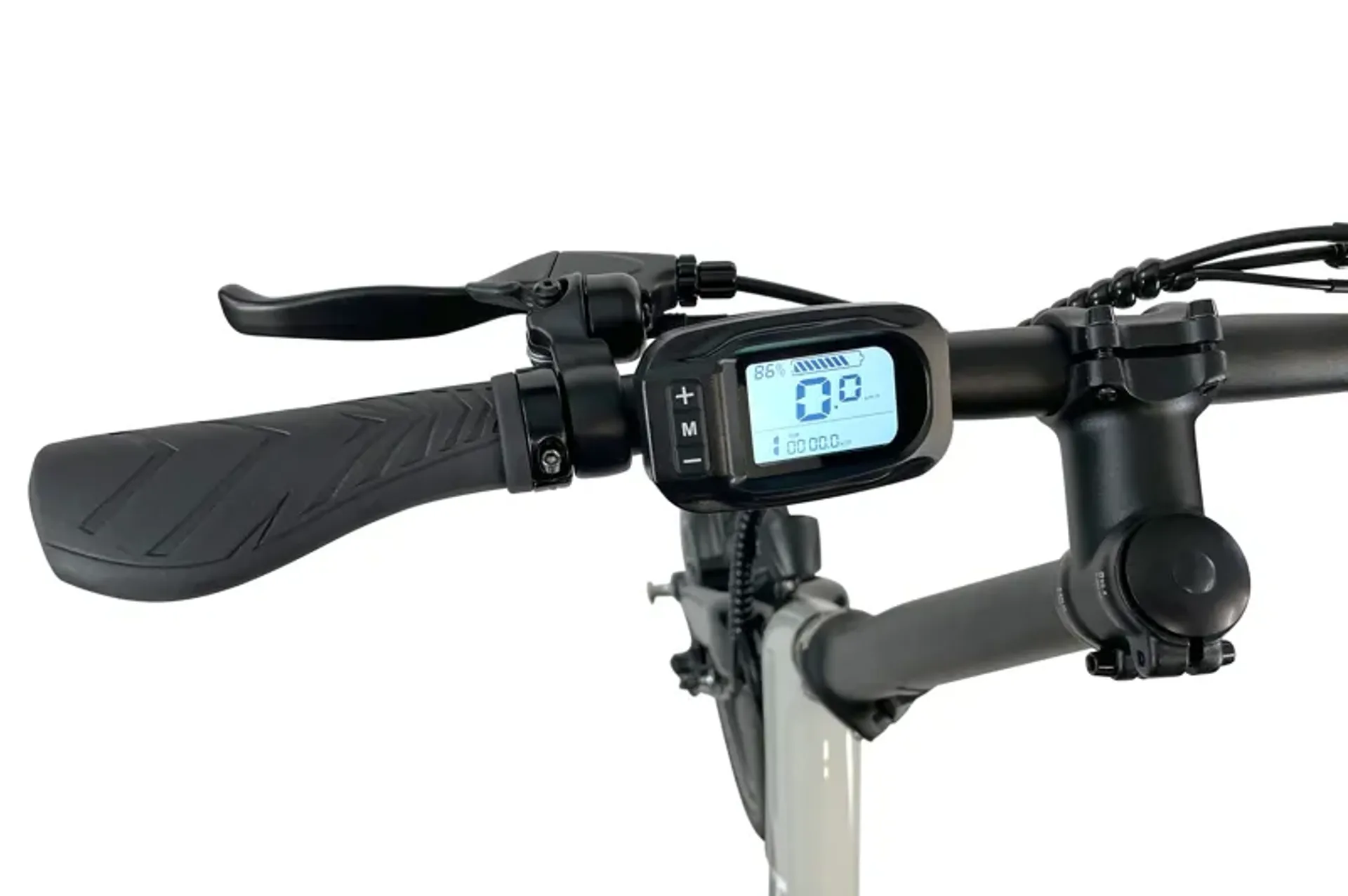

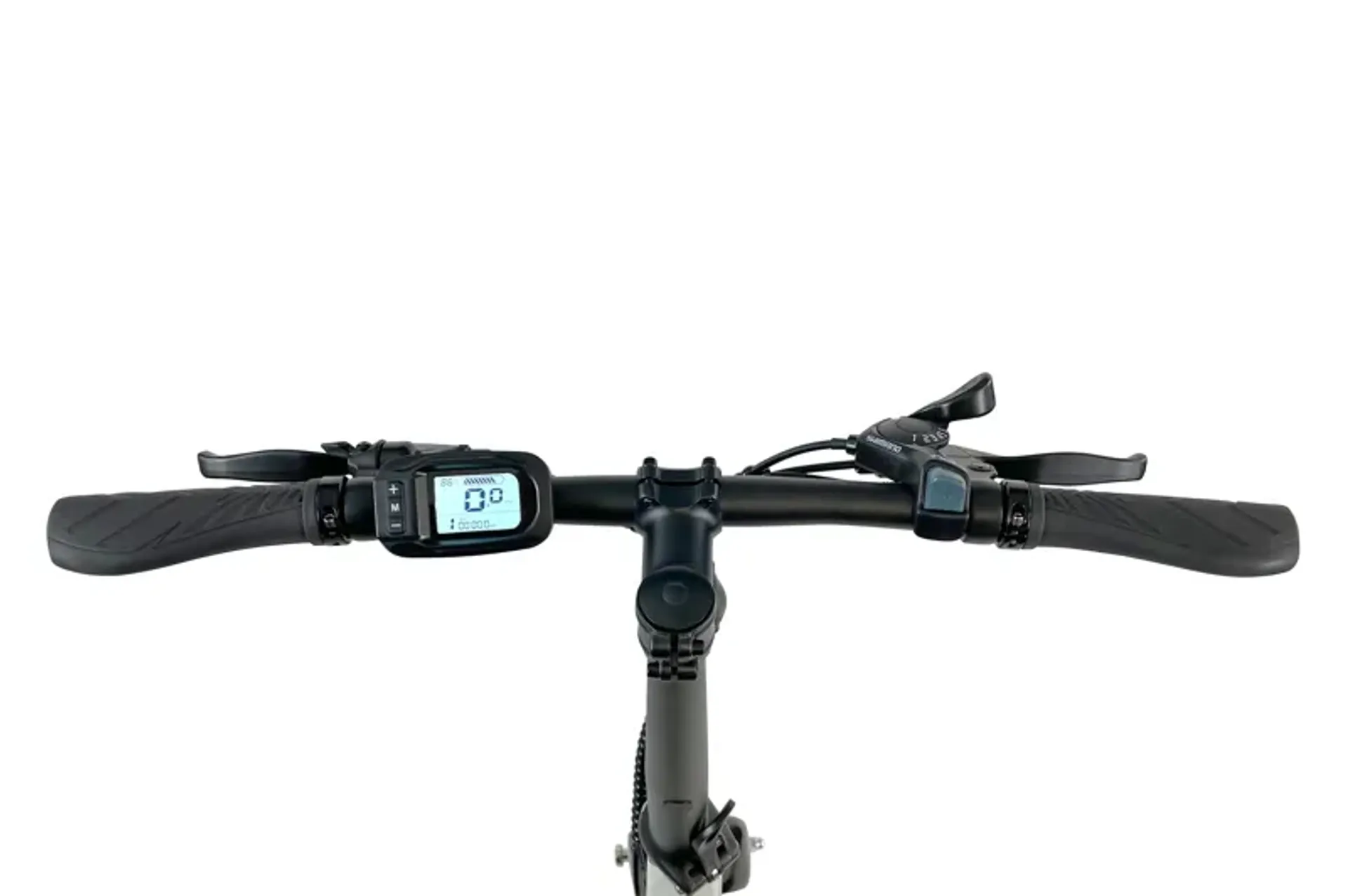

Bicycle computer
LC display with three function keys, backlight. Functions: speed, ODO, TRIP, TIME, PAS LEVEL, battery, light, auto power off, error display
-
Charger
Wide range power pack (AC 100 - 240 volts), 42V, 2A
-
Charging time
About 4-6 hours
-
Range
Up to 44 miles (70 km)*
-
Top speed (supported)
Max. 20 mph (32 km/h)
-
Lighting & Reflectors
Front LED headlight with integrated reflector, powered by bicycle battery
Rear-mounted standard reflector, reflecting pedals, reflecting strips on tire walls
-
Size (ready to ride)
Approx. 60 x 22 x 41" (1520 x 570 x 1040 mm) (LxWxH)
-

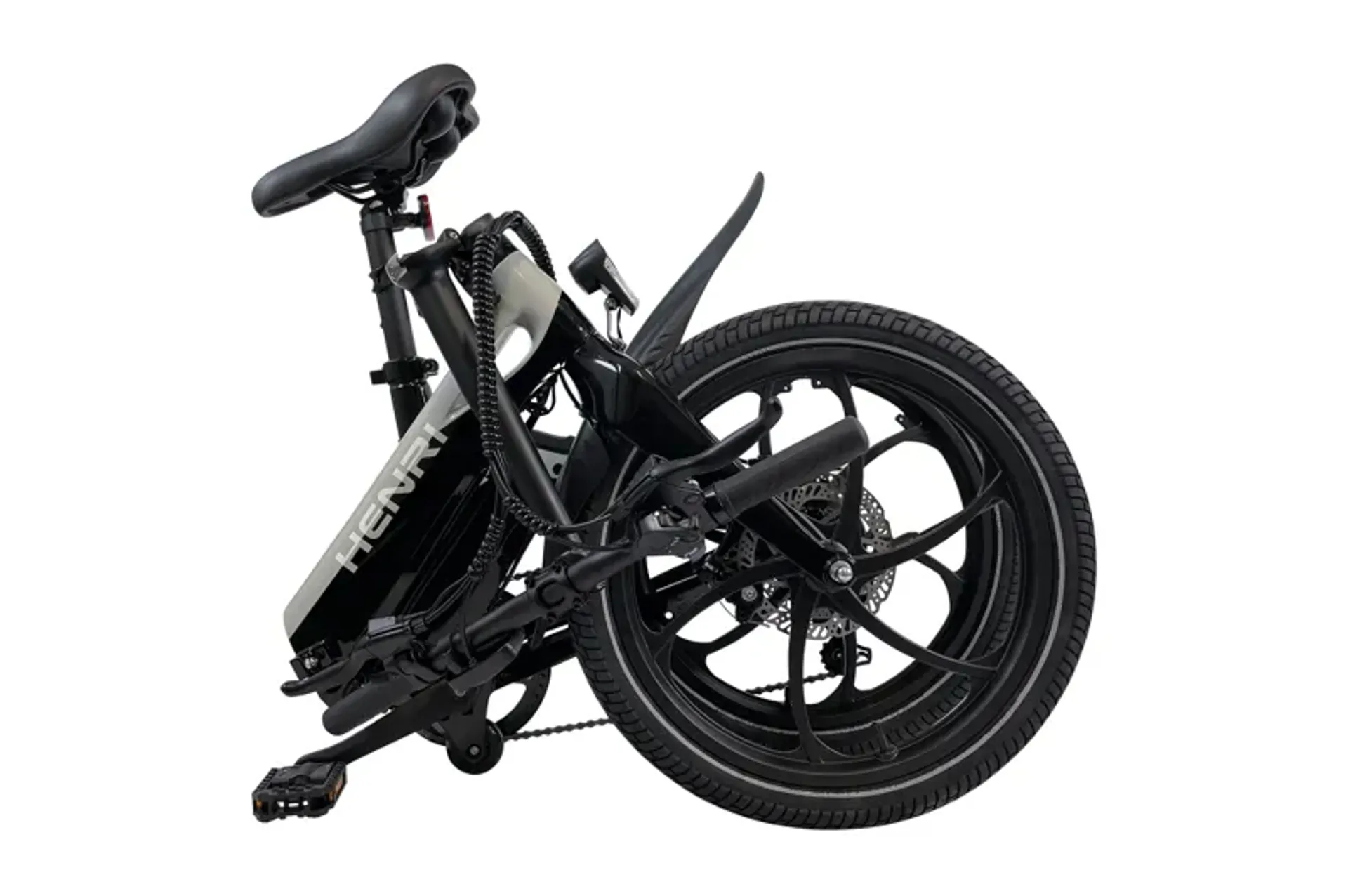

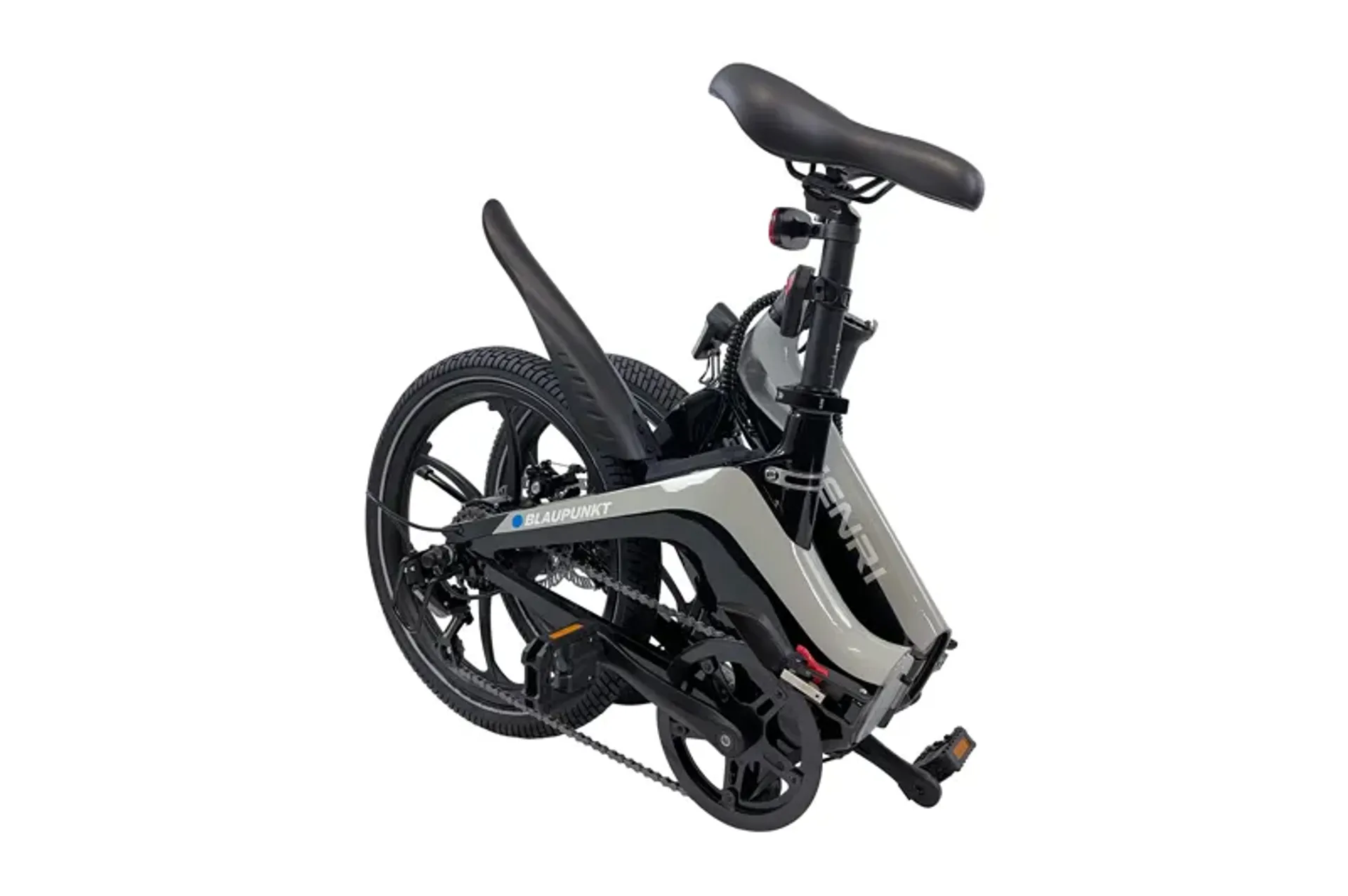

Size (folded)
Approx. 31.5 x 20 x 23.5" (800 x 500 x 600 mm) (LxWxH)
-
Wheel Size
20" x 2.125"
-
Handlebar height
13.4" (340mm)
-
Handlebar width
22" (560 mm)
-
Head tube length
4.3" (108mm)
-
Stand over height
18" (457mm)
-
Saddle height
min 32" max 40" (813 - 1,016mm)
-
Seat post tube
Ø 1.23" (31.6 mm)
-
Wheelbase
40" (1016 mm)
-
Ground clearance
8" (200 mm) (up to the transport roller)
-
Frame height
24" (600 mm)
-
Weight (including battery)
Approx. 47 lbs (21 kg)
-
Battery weight
Approx. 5 lbs (2 kg)
