The Trax LT is a lightweight, powerful e-bike built for effortless commutes. Featuring a 500W motor, 480Wh battery, and hydraulic disc brakes.
The Trax LT is a lightweight, powerful e-bike built for effortless commutes. Featuring a 500W motor, 480Wh battery, and hydraulic disc brakes.
Troxus Usa

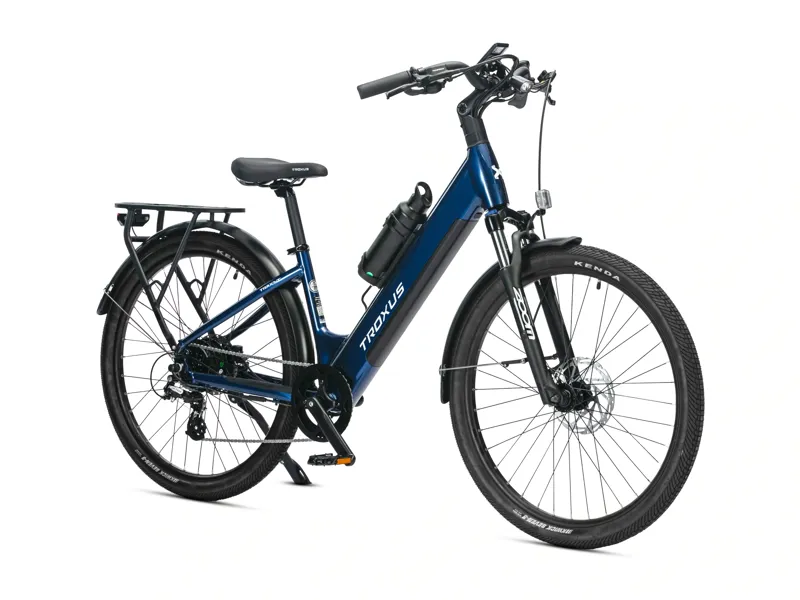

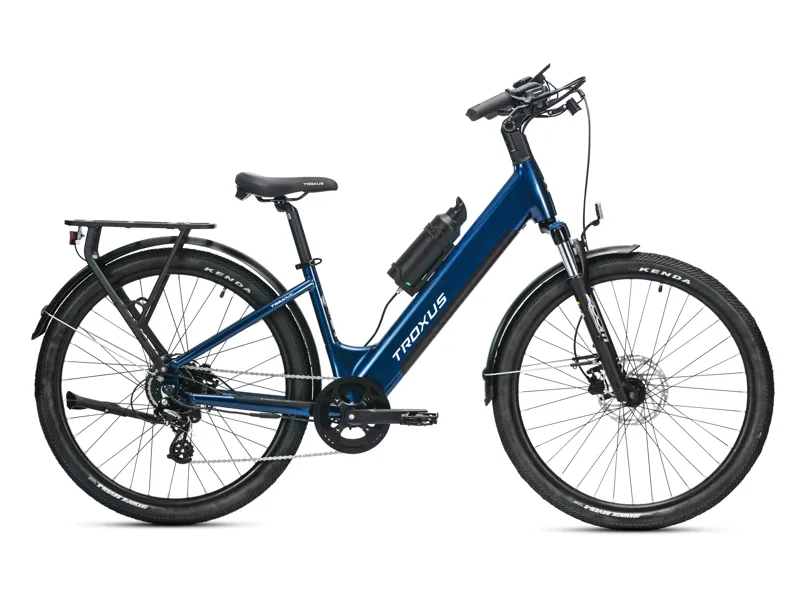

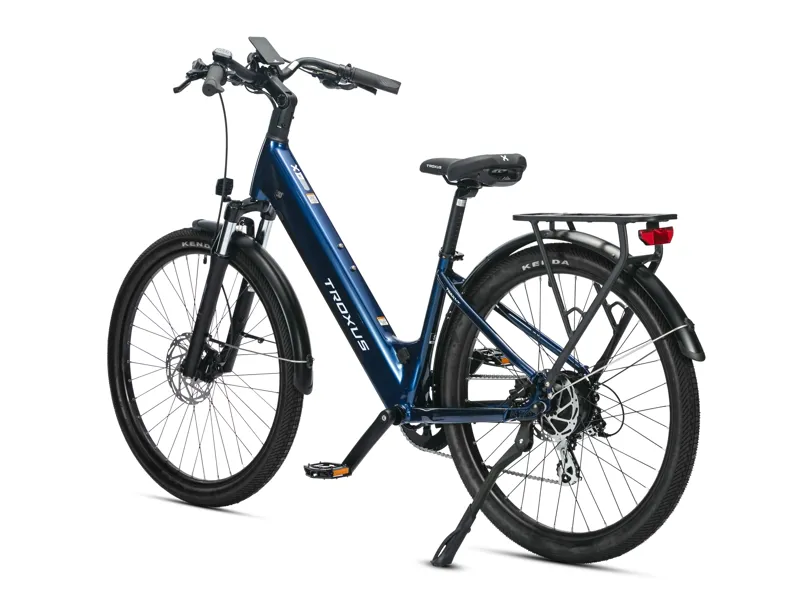

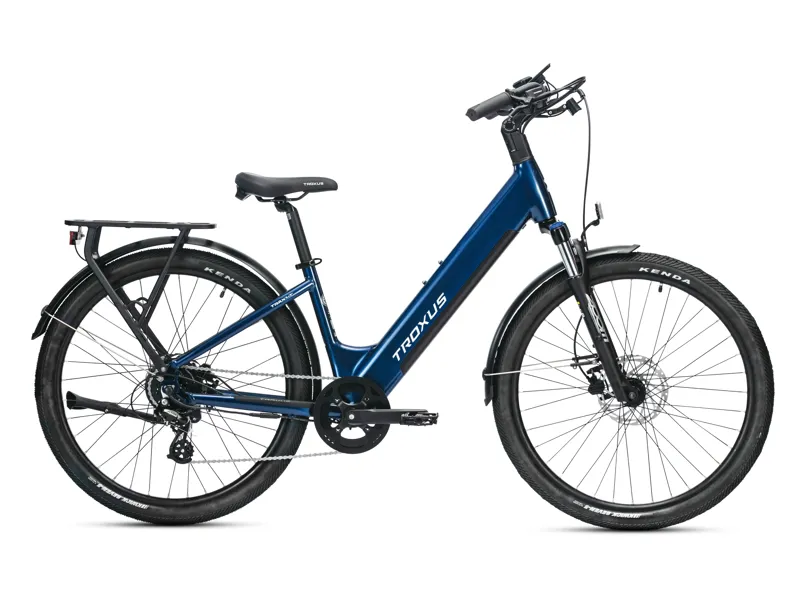

Troxus Usa Trax LT Step-Thru - Dusk Blue

$1,599.99 $1,899.99 16% off
Size Guide
Troxus Usa Trax LT Step-Thru - Biscotti
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Troxus Usa Trax LT Step-Thru - Dusk Blue

Brand:Troxus Usa

Code:TTLSIDBDUSK BLUE

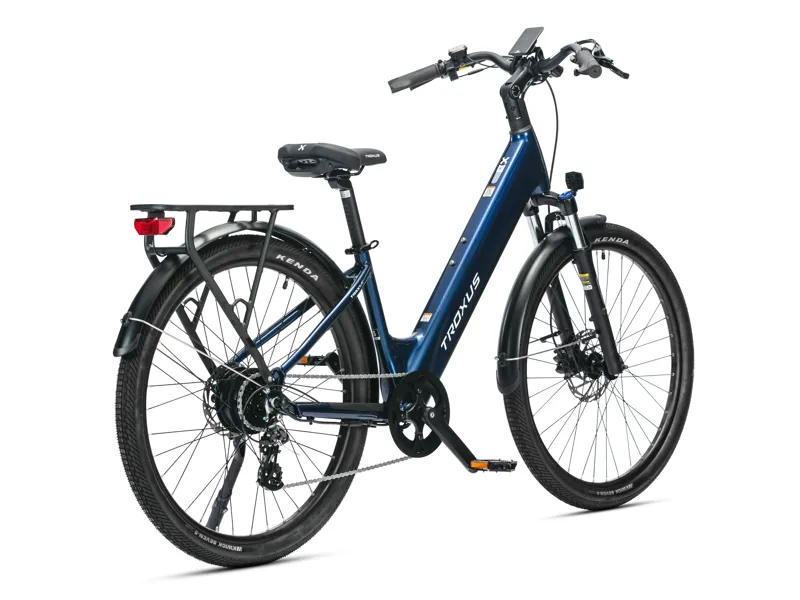

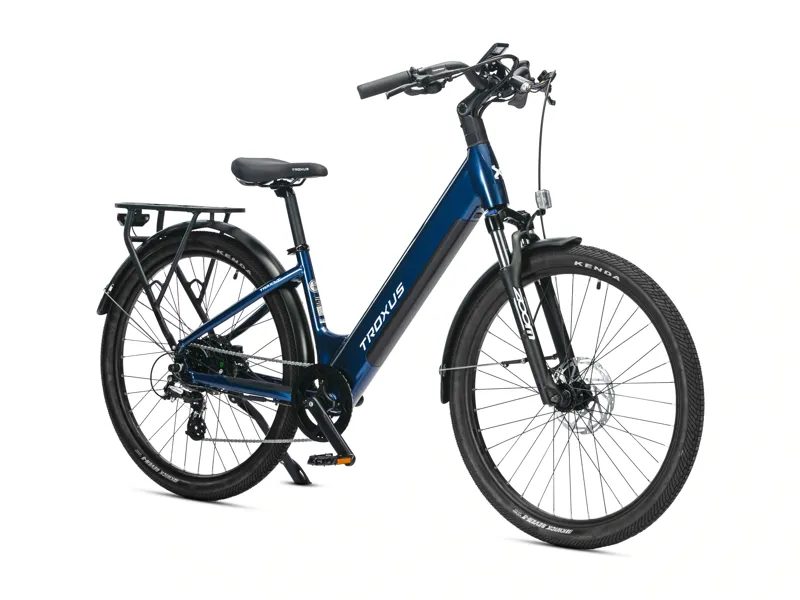

The Trax LT is an ultimate partner for urban adventures. Lightweight yet remarkably powerful, this e-bike is built for effortless commutes and smooth, enjoyable rides.

Powered by a 500W peak power motor and a durable 480Wh battery, the Trax LT conquers hills and navigates busy streets with ease. For extended journeys, an optional 240Wh battery is available for increased range. The bike features wide, semi-slick tires and a suspension fork to handle everything from rough pavement to cinder bike paths. A backswept handlebar, mounted on an adjustable stem, provides a comfortable, upright position that can be fine-tuned to individual preference.

The Trax LT stands out as a great value for suburban commuters and weekend adventurers. Riders can switch between torque and cadence sensor modes for control, while a Bluetooth-enabled color display allows for tracking stats and connectivity. Reliable hydraulic disc brakes deliver powerful stopping power for secure rides.

Features:

  • 500W peak power motor
  • 480Wh battery

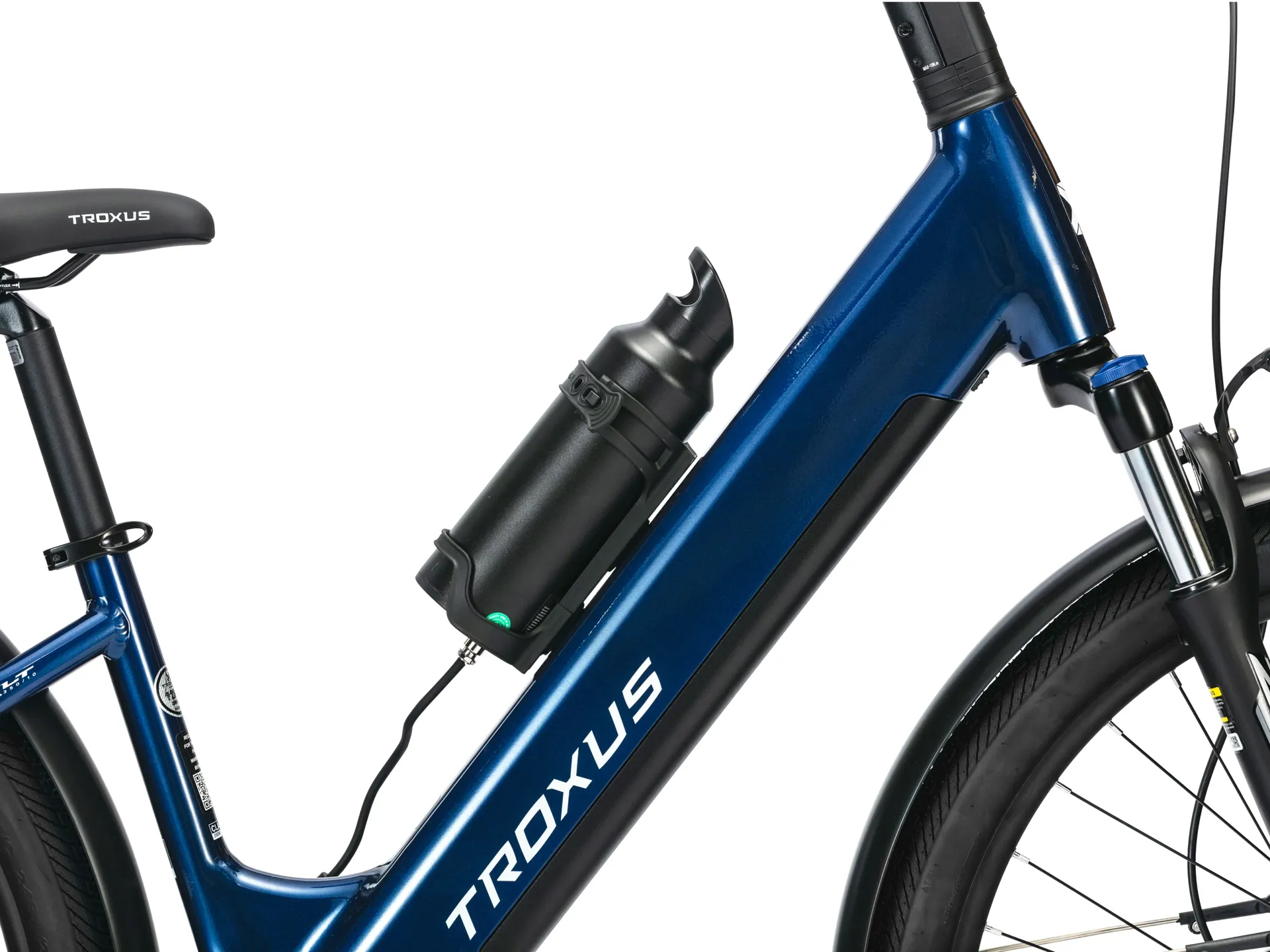

  • Optional 240Wh battery extender pack
  • Hydraulic disc brakes
  • Bluetooth-enabled color display
  • Lights, fenders, and MIK-compatible rear rack
  • Suspension fork
  • Backswept handlebar with adjustable stem
  • Torque and cadence sensor modes
Technical Information
  • Max speed
    Up to 20 MPH
  • Range
    Up to 55 miles per charge / Up to 80+ miles w/extra battery
  • Weight limit
    285 lbs
  • Net weight
    57 lbs
  • Motor
    Jiabo 48V 500W+ peak power hub-drive motor, 50Nm peak torque
  • Battery
    UL-2271 certified, internal, removable, lithium ion, 48V/10Ah (480Wh) with Samsung cells, w/ option for additional 240Wh piggy-back battery

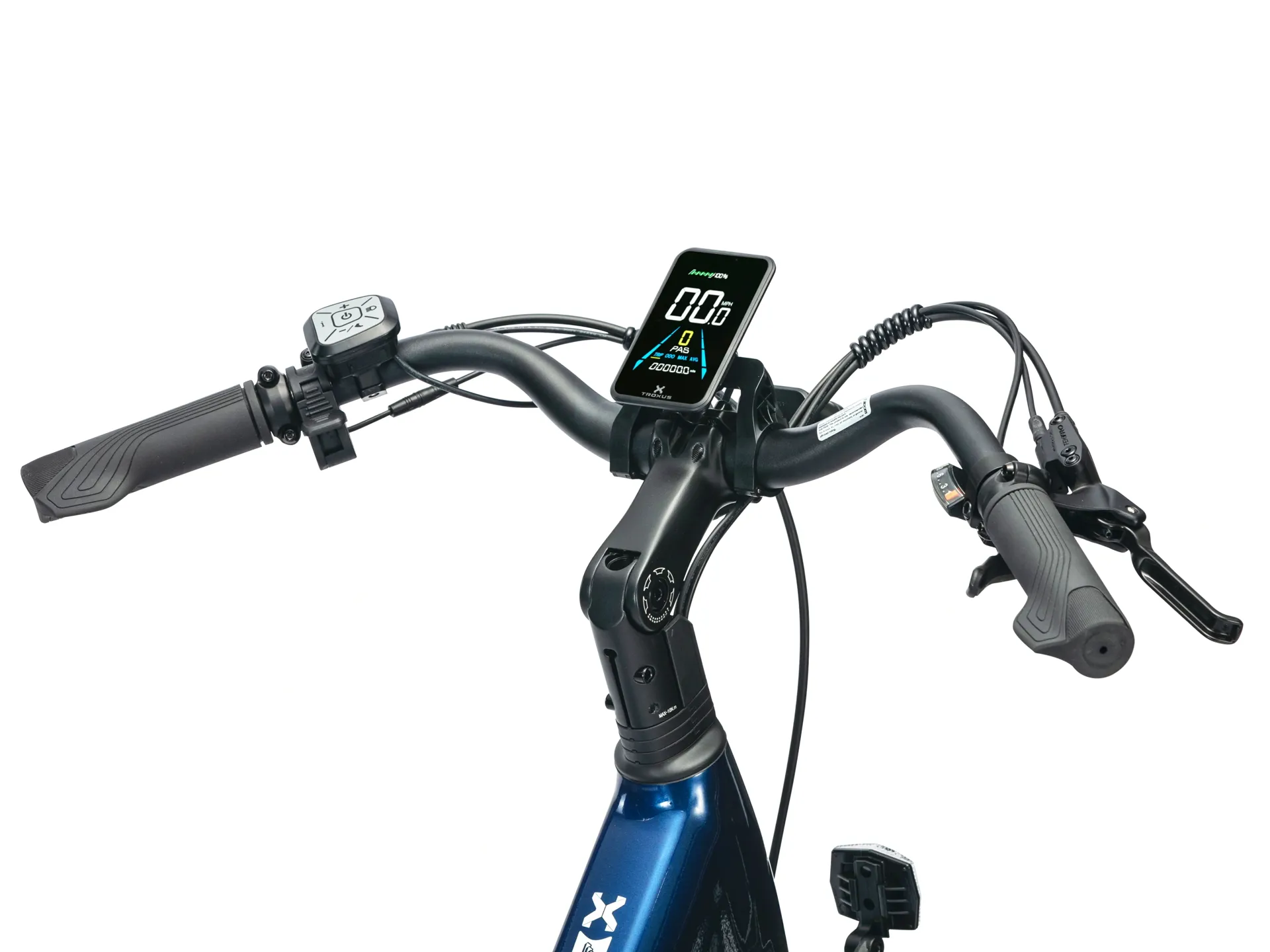

  • Display
    Color display, Bluetooth, w/ multi-function remote
  • Sensor
    Switchable torque and cadence sensor modes
  • Pedal assist
    0-5 level pedal assist
  • Charger
    2A / 100-240V input / 54.6V output
  • Lights
    Front light & rear light
  • Controller
    48Vx15A/12V
  • Frame
    Hydroformed aluminum step-thru lightweight frame
  • Fork
    Zoom front suspension fork, 65mm travel
  • Chain
    KMC 1/2"x3/32"
  • Crankset
    Aluminum, 44T, w/ alloy chainring & single chainguard, square taper, 170mm
  • Rear derailleur

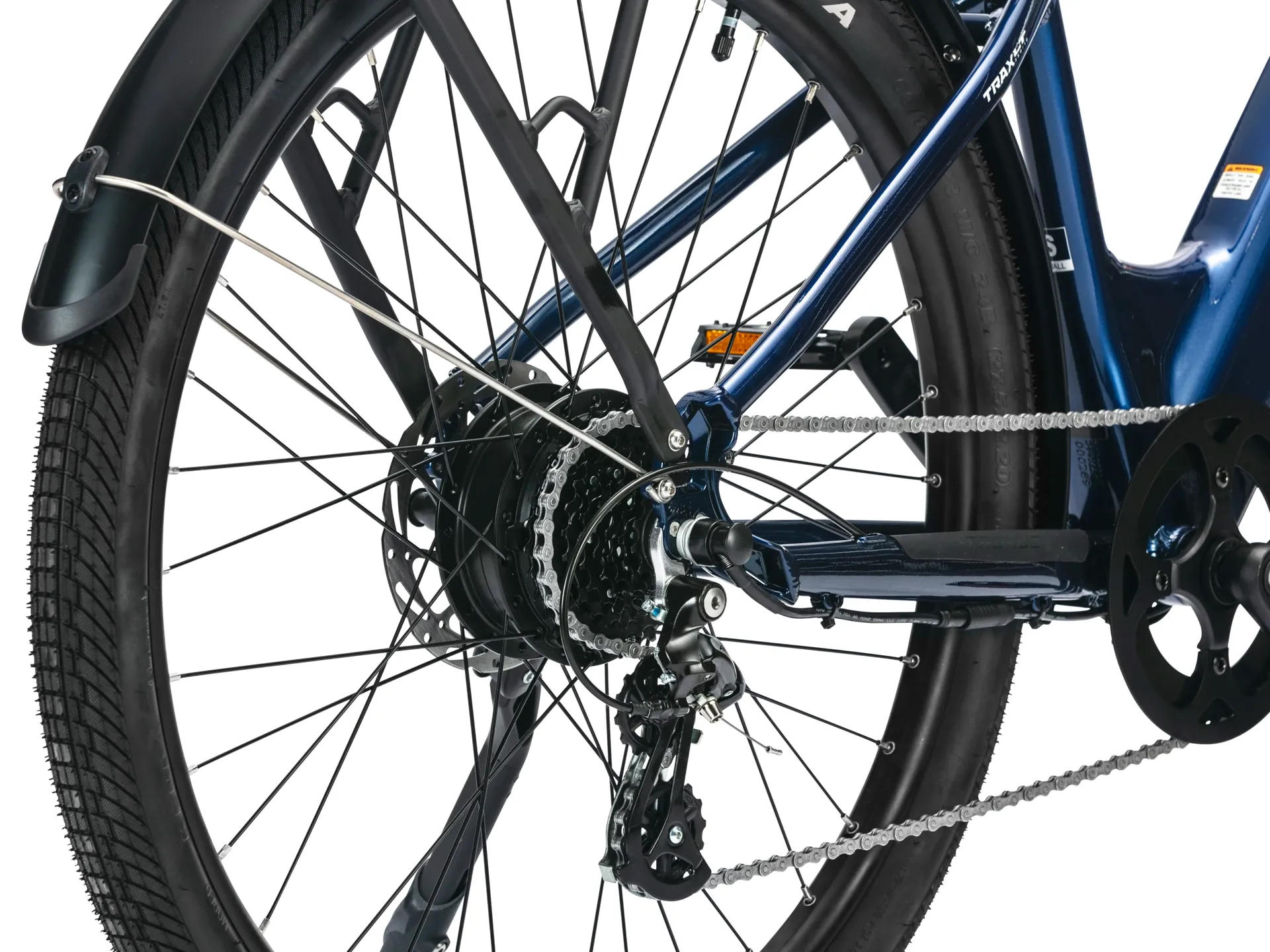

    Shimano RD-M310-L, Altus, 8-speed
  • Cassette
    Shimano 8-speed, 12-32T
  • Shifter
    Shimano 8-speed
  • Bottom bracket
    Square taper sealed bearings, torque & cadence sensors included
  • Tires
    KENDA 27.5"x2.2"
  • Front hub
    Alloy, 36H, 100mm, 3/8" axle

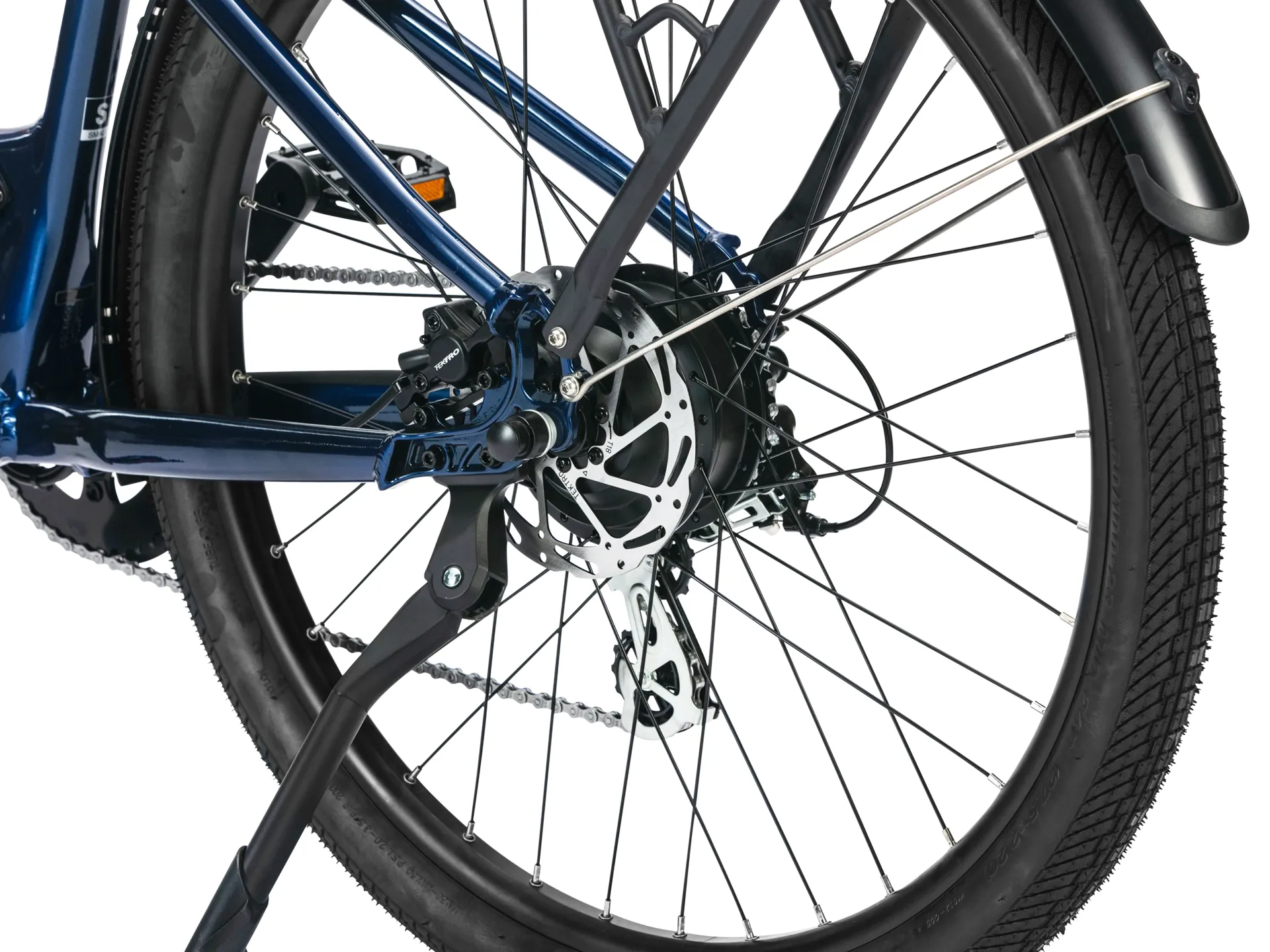

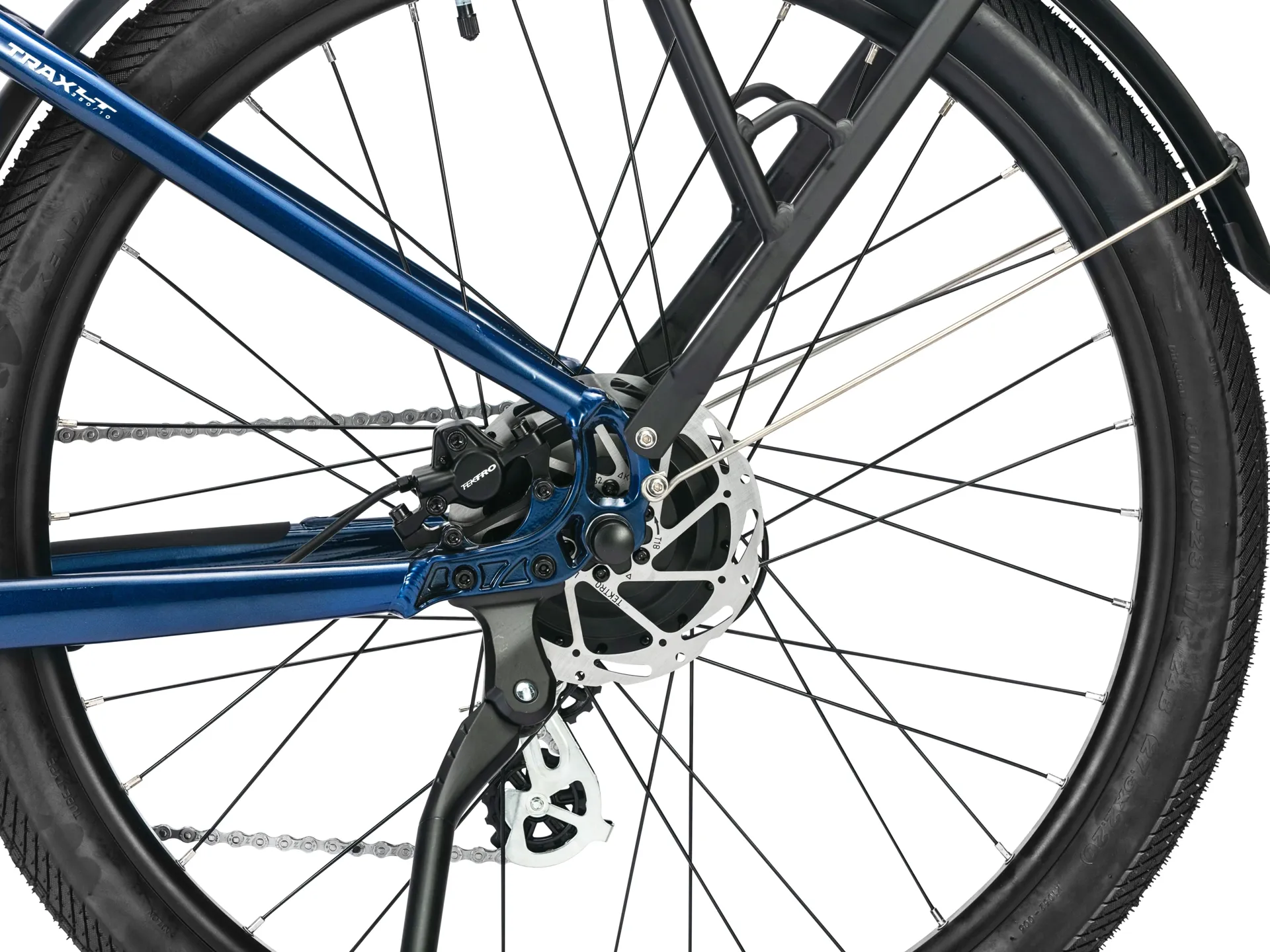

  • Rear hub
    Jiabo 48V 500W, 50Nm peak torque
  • Rims
    Alloy double wall, 27.5"x2.0" w/ eyelets
  • Spokes
    Stainless 14G front / 13G rear
  • Brakes

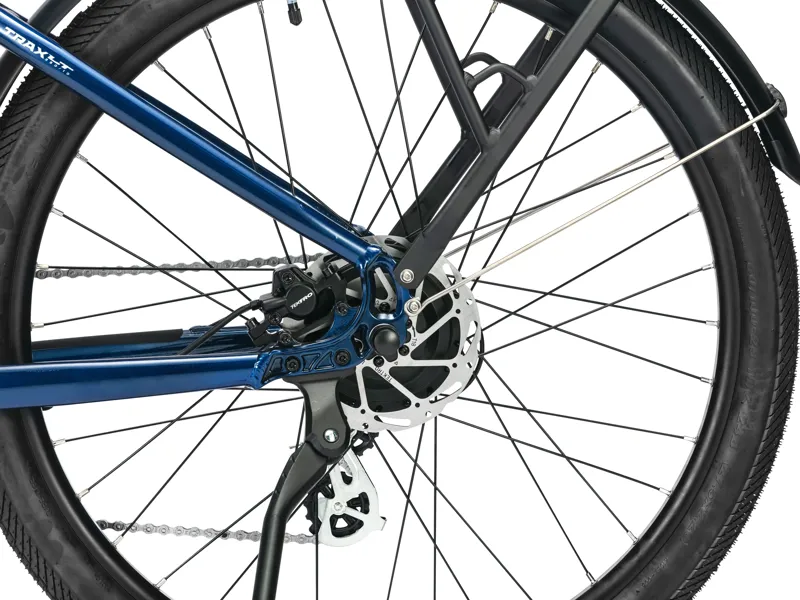

    Tektro hydraulic, w/ brake sensors
  • Rotors
    180mm / 180mm
  • Saddle
    DDK DE-430 comfort, 200mm wide
  • Seat post
    Alloy, 30.9x400mm, adjustable
  • Seat post clamp
    Alloy, 35mm w/ quick release
  • Stem
    Zoom alloy, forged, adjustable, TDS-D634B-8/FOV, ext. 90mm, ICR type w/ internal cable routing
  • Handlebar
    Zoom alloy, 31.8mmx650mm wide, 35º backsweep
  • Grips
    Ergonomic comfort
  • Pedals
    9/16" alloy platform with reflectors
  • Headset
    Gyneyea T192KS-56, threadless 57/56mm, w/ internal cable routing

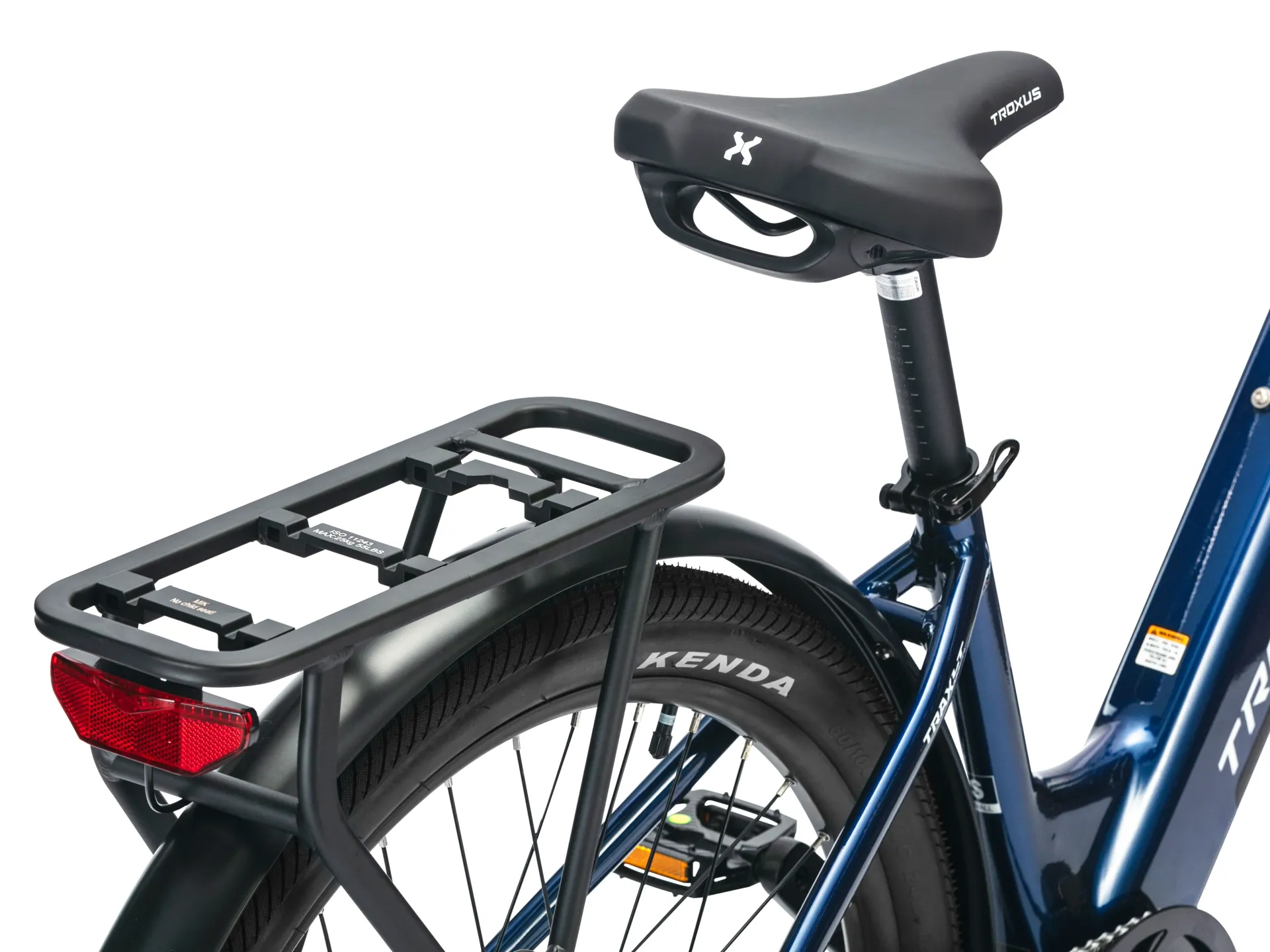

  • Rack
    Lightweight alloy rear model / MIK-compatible rear rack
  • Fender
    Plastic, 27.5"
  • Kickstand
    Adjustable side kickstand
Sizing Information
Troxus Trax LT Step-Thru Geometry Diagram

Geometry Specifications

Measurement Small (15.5 in) Medium (17.5 in)
Wheel Size 27.5 in x 2.2 in 27.5 in x 2.2 in
A - Seat Tube Length 394 mm 445 mm
B - Seat Tube Angle 72.5˚ 72.5˚
C - Head Tube Length 150 mm 150 mm
D - Head Tube Angle 68˚ 68˚
E - Effective Top Tube Length 611 mm 626 mm
F - Bottom Bracket Height 291 mm 291 mm
G - Bottom Bracket Drop 60 mm 60 mm
H - Chainstay Length 455 mm 455 mm
I - Fork Offset 44 mm 44 mm
J - Wheelbase 1143 mm 1158 mm
K - Frame Reach 410 mm 425 mm
L - Frame Stack 640 mm 640 mm
Fork Travel 65 mm 65 mm
Fork Height 490 mm 490 mm

Performance Specifications

Feature Details
Max Speed Up to 20 MPH
Range Up to 55 Miles Per Charge / Up to 80+ Miles with Extra Battery
Weight Limit 285 lbs
Net Weight 57 lbs

E-Systems

Component Specification
Motor Jiabo 48V 500w+ Peak Power Hub-Drive Motor, 50Nm Peak Torque
Battery UL-2271 Certified, Internal, Removable, Lithium Ion, 48V/10Ah (480Wh) with Samsung Cells, Option for Additional 240Wh Piggy-Back Battery
Display Color Display, Bluetooth, with Multi-Function Remote
Sensor Switchable Torque and Cadence Sensor Modes
Pedal Assist 0-5 Level Pedal Assist
Charger 2A / 100-240V Input / 54.6V Output
Lights Front Light and Rear Light
Controller 48Vx15A/12V

Components

Component Specification
Frame Hydroformed Aluminum Step-Thru Lightweight Frame
Fork Zoom Front Suspension Fork, 65mm Travel
Chain KMC 1/2 in x 3/32 in
Crankset Aluminum, 44T, with Alloy Chainring and Single Chainguard, Square Taper, 170mm
Rear Derailleur Shimano RD-M310-L, Altus, 8-Speed
Cassette Shimano 8-Speed, 12-32T
Shifter Shimano 8-Speed
Bottom Bracket Square Taper Sealed Bearings, Torque and Cadence Sensors Included
Tires KENDA 27.5 in x 2.2 in
Front Hub Alloy, 36H, 100mm, 3/8 in Axle
Rear Hub Jiabo 48V 500W / 20 MPH, 50Nm Peak Torque
Rims Alloy Double Wall, 27.5 in x 2.0 in with Eyelets
Spokes Stainless 14G Front / 13G Rear
Brakes Tektro Hydraulic, with Brake Sensors
Rotors 180mm / 180mm
Saddle DDK DE-430 Comfort / 200mm Wide
Seat Post Alloy, 30.9 x 400mm, Adjustable
Seat Post Clamp Alloy, 35mm with Quick Release
Stem Zoom Alloy, Forged, Adjustable, TDS-D634B-8/FOV, Ext. 90mm, ICR type with Internal Cable Routing
Handlebar Zoom Alloy, 31.8mm x 650mm Wide, 35˚ Backsweep
Grips Ergonomic Comfort
Pedals 9/16 in Alloy Platform with Reflectors
Headset Gyneyea T192KS-56, Threadless 57/56mm, with Internal Cable Routing
Rack Lightweight Alloy Rear Model / MIK-Compatible Rear Rack
Fender Plastic, 27.5 in
Kickstand Adjustable Side Kickstand
