The Trax Plus 500W/15Ah is a high-performance commuter e-bike built to conquer city streets and urban terrain with a 500W motor and 720Wh battery.
The Trax Plus 500W/15Ah is a high-performance commuter e-bike built to conquer city streets and urban terrain with a 500W motor and 720Wh battery.
Troxus Usa

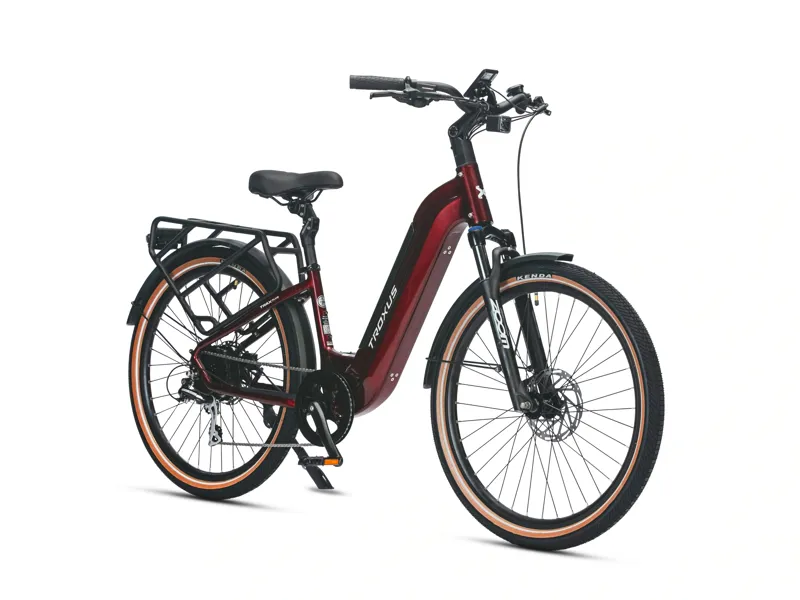

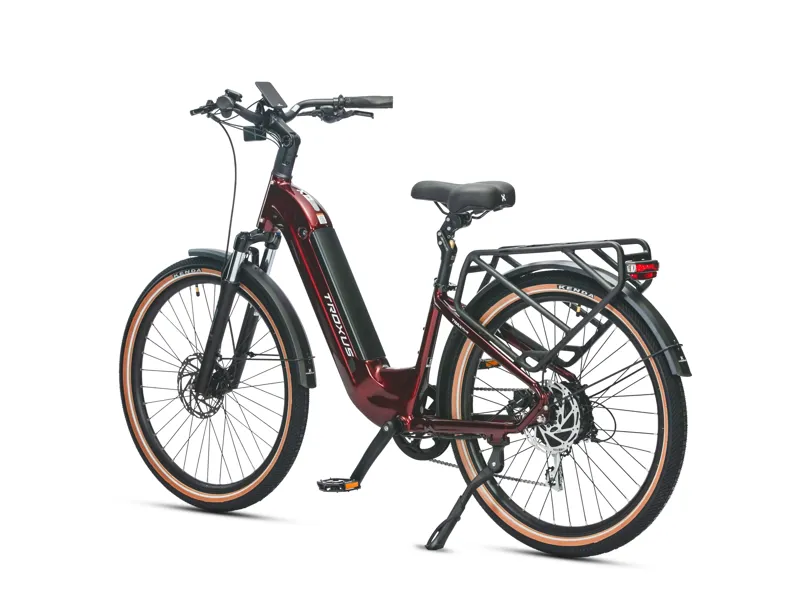

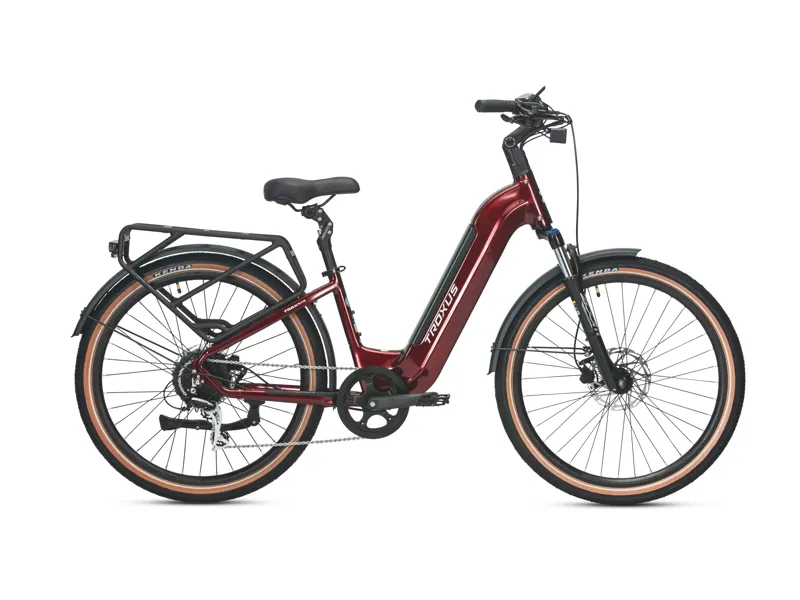

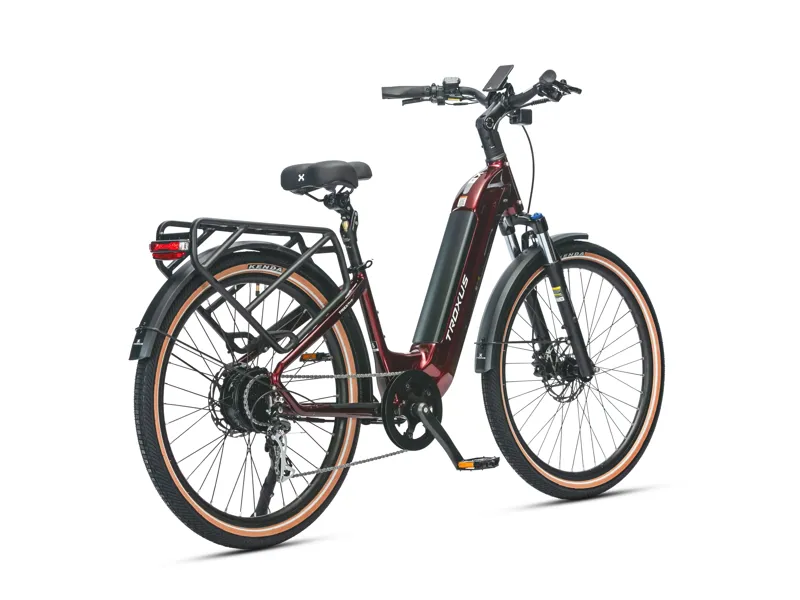

Troxus Usa Trax Plus 500/15 Step-Thru Medium - Metallic Red

$1,999.99 $2,299.99 13% off
Size Guide
Troxus Usa Trax Plus 500/15 Step-Thru Small - Metallic Red Troxus Usa Trax Plus 500/15 Step-Thru Large - Deep Moss Troxus Usa Trax Plus 500/15 Step-Thru Medium - Chalk Troxus Usa Trax Plus 500/15 Step-Thru Small - Chalk
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Troxus Usa Trax Plus 500/15 Step-Thru Medium - Metallic Red

Season:2025/2026

Brand:Troxus Usa

Code:10870100302

The Trax Plus 500W/15Ah is the ultimate high-performance commuter e-bike, built to conquer city streets and harsh urban terrain with ease.

Powered by a robust 500W motor and a long-lasting 720Wh battery, this bike delivers all the power needed for any ride. The smooth suspension seat post adds a layer of comfort.

Effortlessly glide through city streets and neighborhood roads with this electric cruiser bike built for smooth, everyday rides. Comfortable and stylish, it transforms daily commutes, errands, and relaxed weekend spins into enjoyable experiences, making every trip feel easy and fun.

Features:

  • 500W motor
  • 720Wh battery
  • Suspension seat post
  • Step-thru frame design
Technical Information
  • Frame size
    Small / 15", Medium / 17", Large / 20"
  • Wheel size
    27.5"x2.2"
  • Seat tube length
    381mm, 432mm, 500mm
  • Seat tube angle
    72˚
  • Head tube length
    150mm
  • Head tube angle
    68˚, 69˚
  • Effective top tube length
    613.5mm, 639mm, 645mm
  • Bottom bracket height
    296mm
  • Bottom bracket drop
    55mm
  • Chainstay length
    480mm
  • Fork offset
    42mm
  • Wheelbase
    1163mm, 1168mm, 1183mm
  • Frame reach
    410mm, 425mm, 440mm
  • Frame stack
    626mm, 631mm
  • Fork travel
    65mm
  • Fork height
    480mm
  • Max speed
    Up to 20 MPH on throttle / Up to 28 MPH on pedal assist
  • Range
    Up to 70 miles per charge
  • Maximum load
    383 lbs
  • Net weight
    68.5 lbs
  • Motor
    Ananda® 48V/500W hub-drive motor, 65Nm max. torque
  • Battery
    UL-2271 certified, internal, removable, lithium ion, 48V/15Ah (720Wh) with Samsung® cells

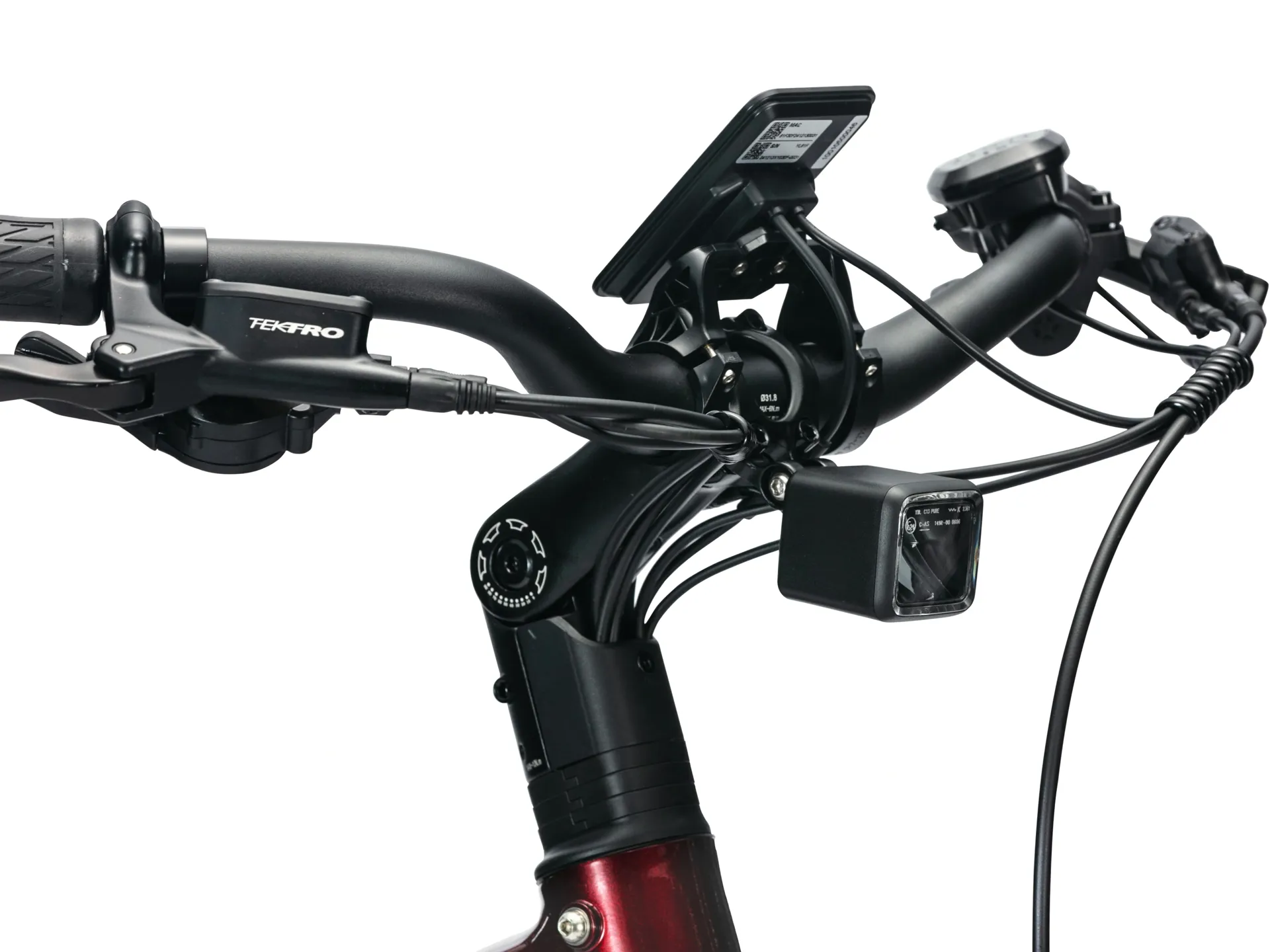

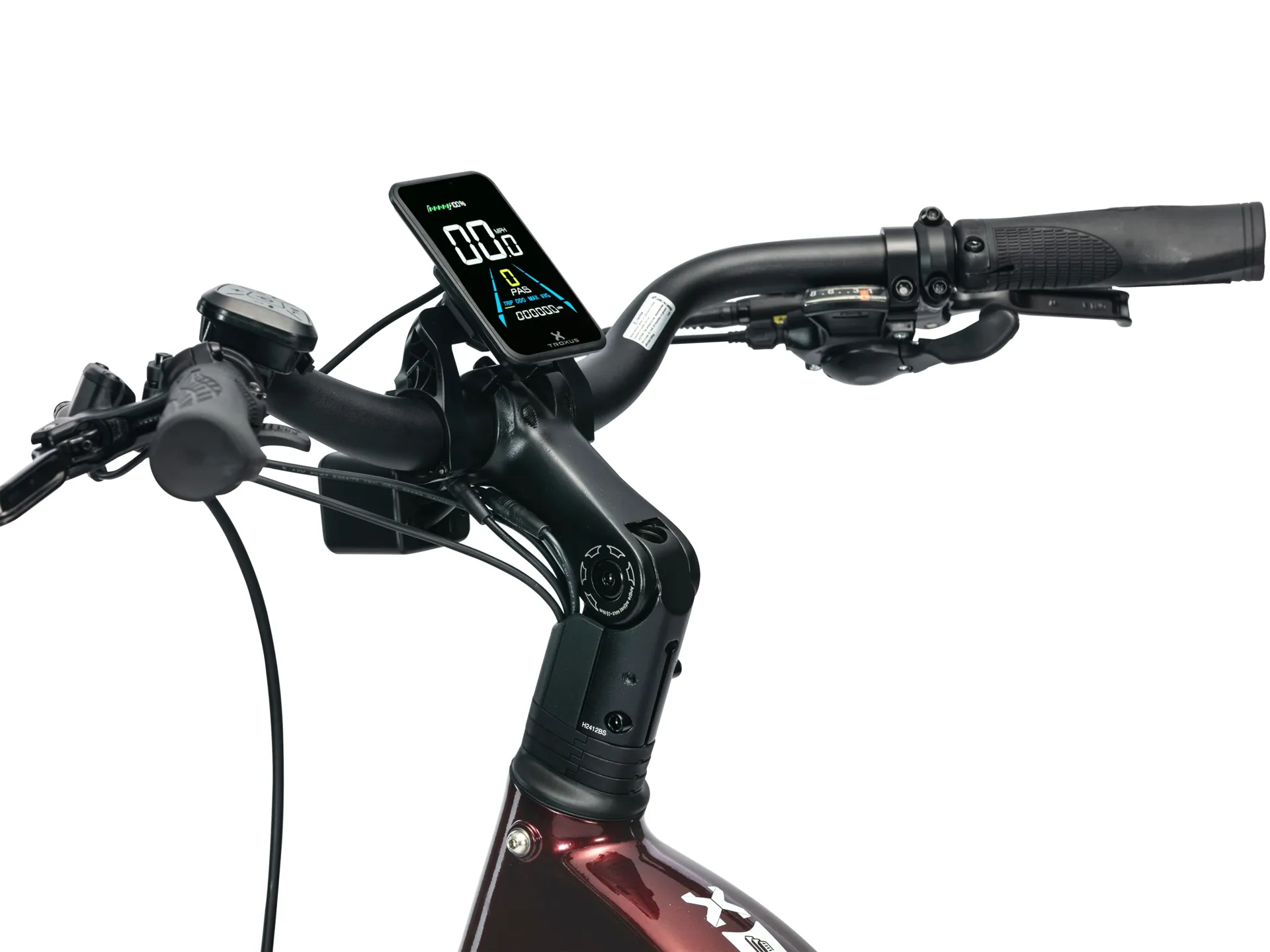

  • Display
    Color display, Bluetooth, turn light signals, multi-function remote
  • Sensor
    Switchable torque and cadence sensor modes
  • Pedal assist
    0~5 level pedal assist
  • Charger
    2A / 100-240V input / 54.6V output
  • Lights
    Front light & rear light
  • Controller
    48Vx18A/12V
  • Frame
    Hydroformed aluminum frame
  • Fork
    Zoom® front suspension fork, 65mm travel
  • Chain
    KMC® 1/2"x3/32"
  • Crankset
    Aluminum, 46T, single alloy chainguard, square taper, 170mm

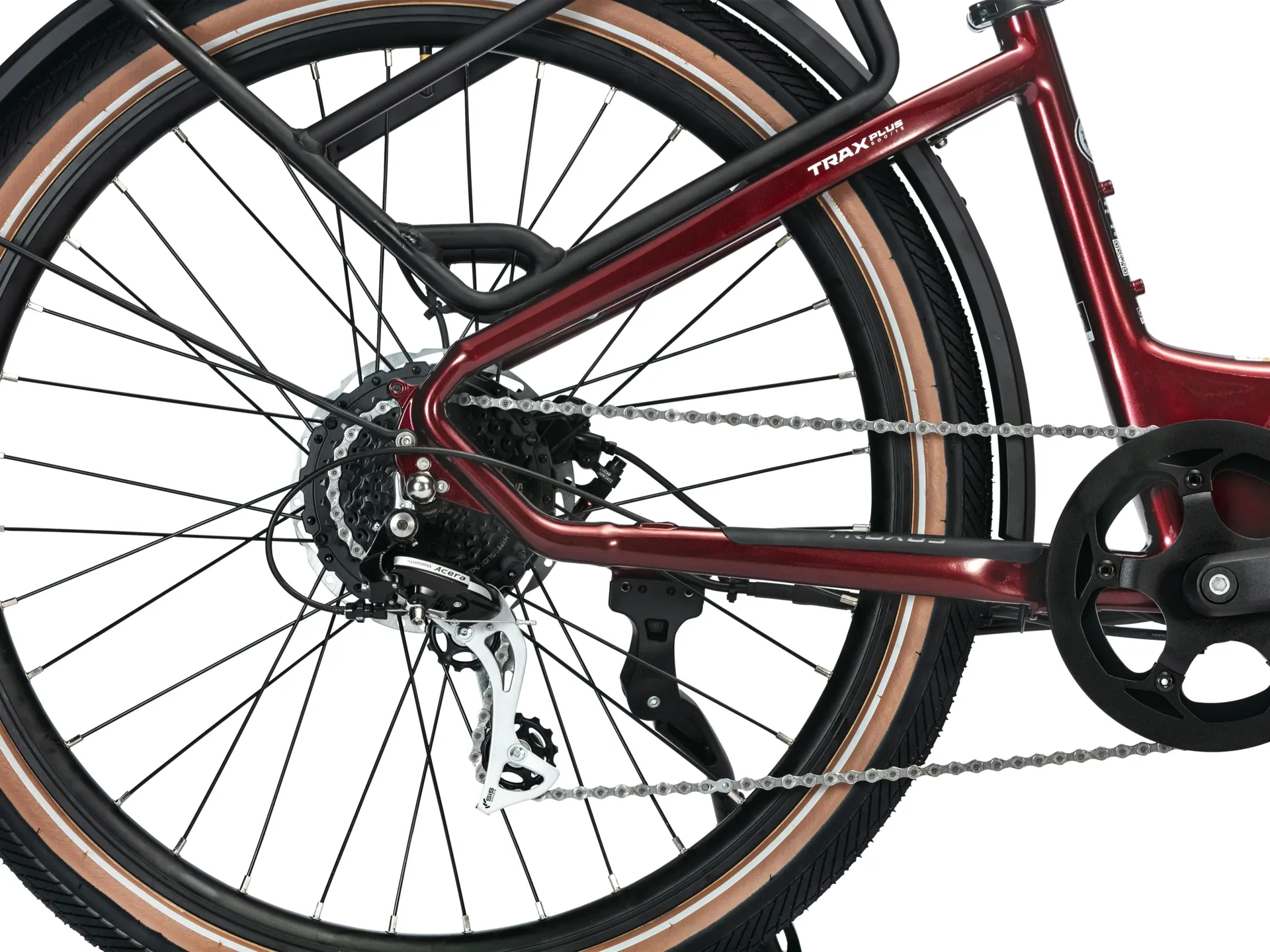

  • Rear derailleur
    Shimano® RD-M3020-8, Acera, 8-speed
  • Cassette
    Shimano 8-speed, 12-32T
  • Shifter
    Shimano® 8-speed
  • Bottom bracket
    Square taper sealed bearings, torque & cadence sensors included
  • Tires
    KENDA® 27.5"x2.2", reflective stripes, puncture-resistant, E-50 rated
  • Front hub
    Alloy, 36H, 100mm, 3/8" axle w/ nuts

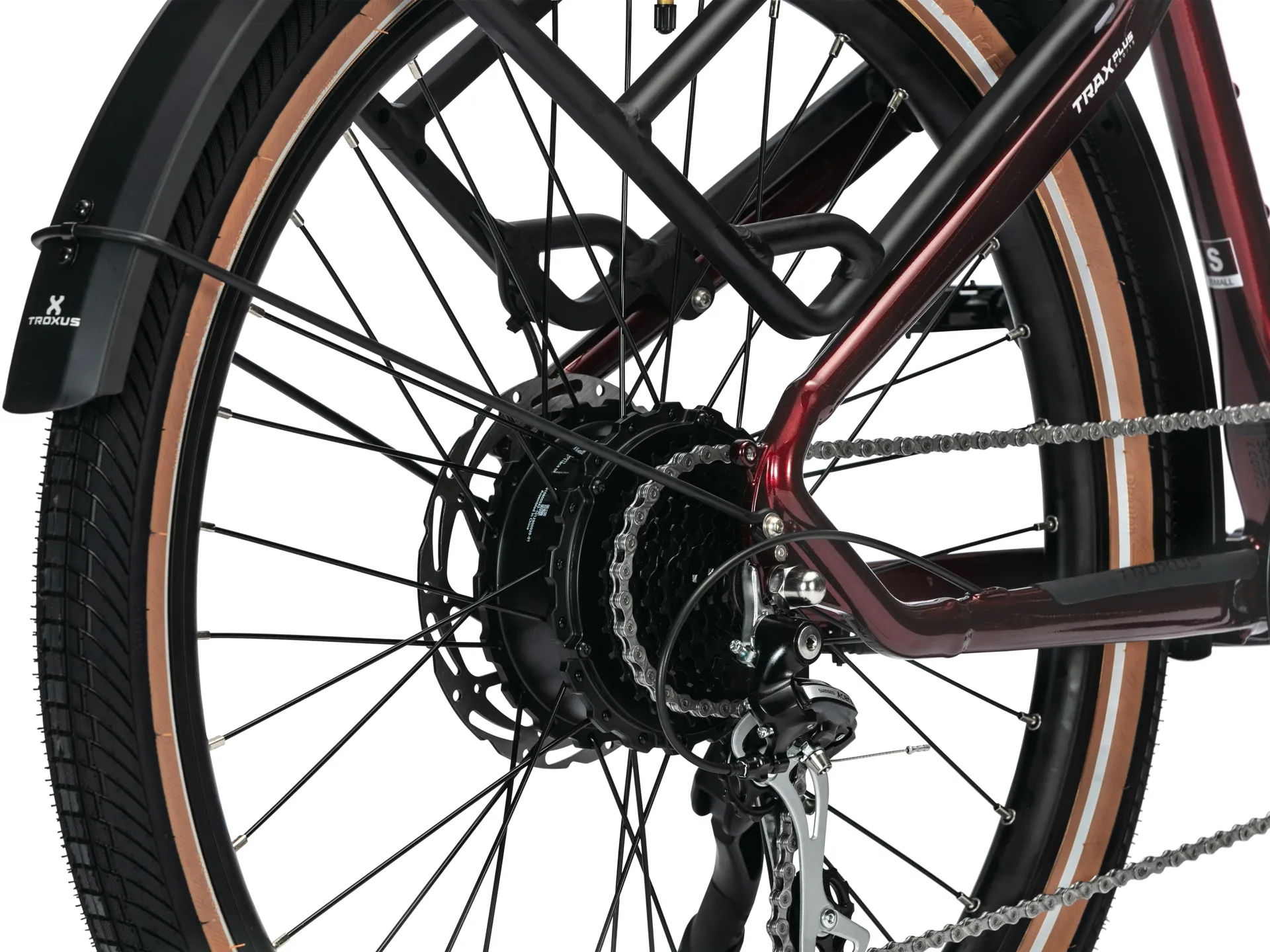

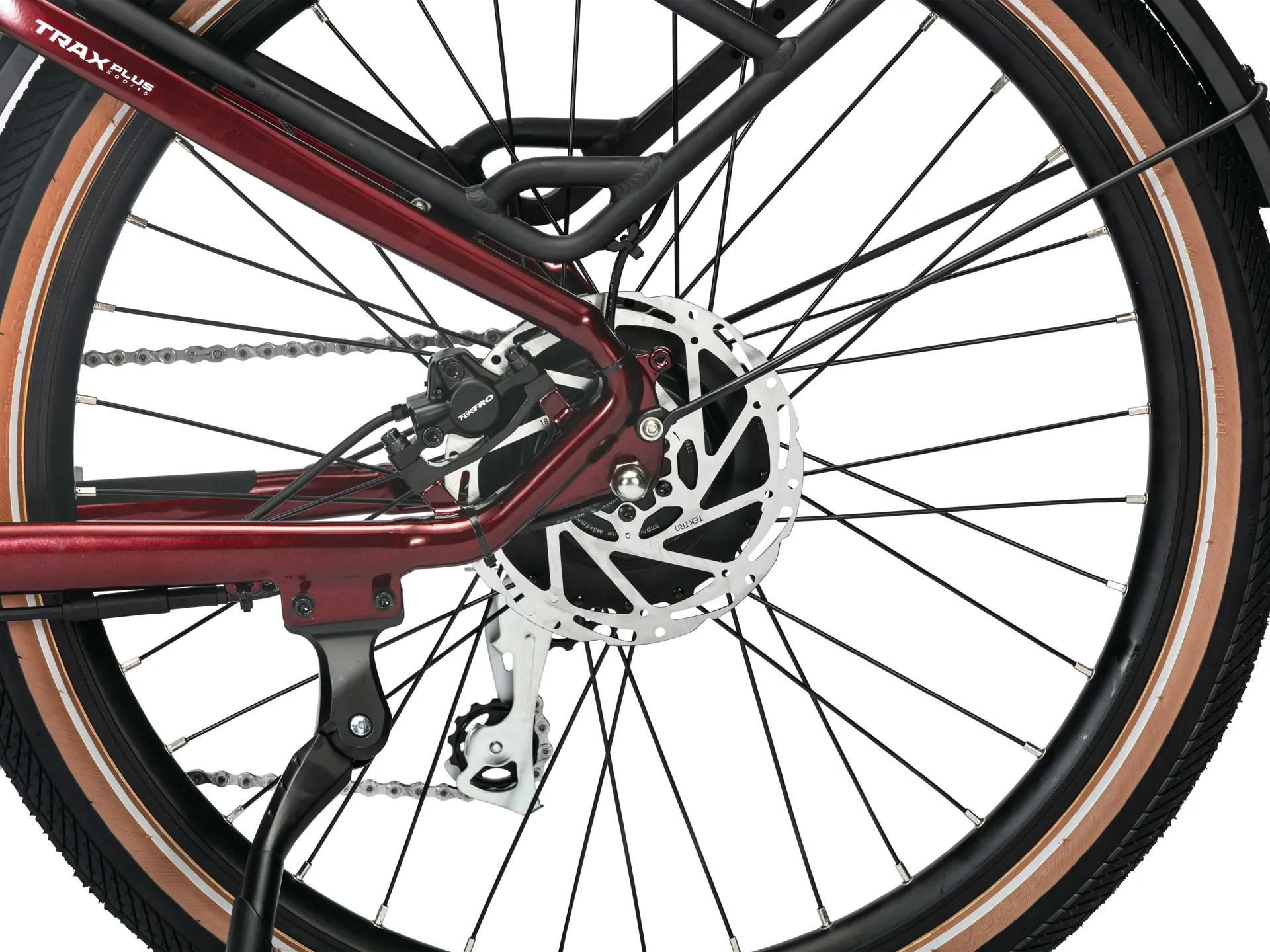

  • Rear hub
    48V 500W, 65Nm
  • Rims
    Alloy single wall front / double wall rear, 36H, 27.5"x2.2", w/ eyelets
  • Spokes
    Stainless 13G front / 12G rear
  • Brakes
    Tektro® hydraulic, w/ brake sensors
  • Rotors
    180mm
  • Saddle
    DDK DE-430 comfort, 200mm wide

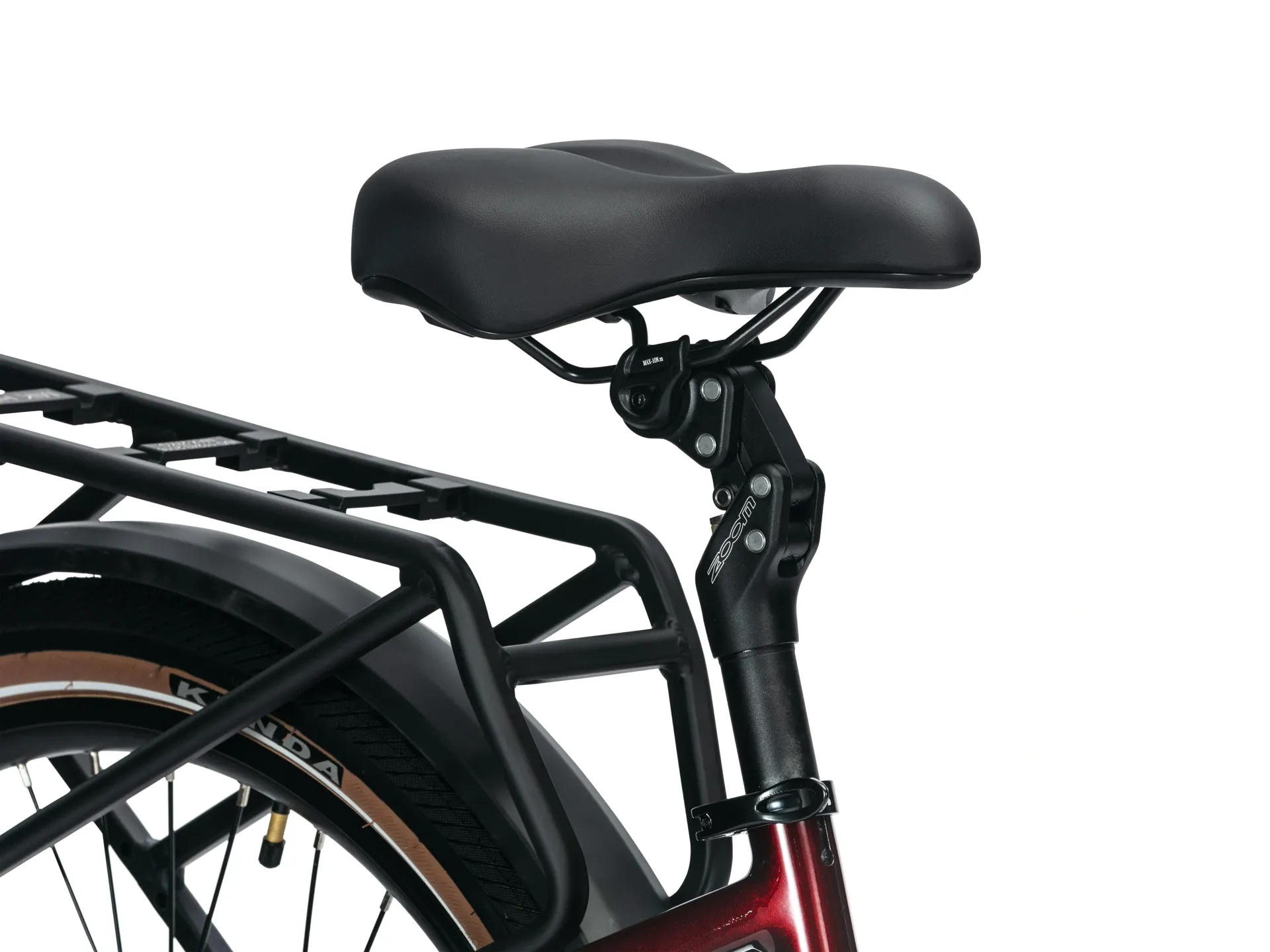

  • Seat post
    Troxus w/ suspension, alloy 30.9x400mm, adjustable
  • Seat post clamp
    Alloy, 35mm w/ quick release
  • Stem
    Zoom® alloy, forged, adjustable, TDS-D634B-8/FOV, ext. 90mm, ICR type w/ internal cable routing
  • Handlebar
    Zoom® alloy, 31.8mmx620mm, 35˚ backsweep
  • Grips
    Ergonomic comfort
  • Pedals
    Alloy, 9/16" axles, w/ BS reflectors
  • Headset
    Gyneyea T192KS-56, threadless 57/56mm, w/ internal cable routing

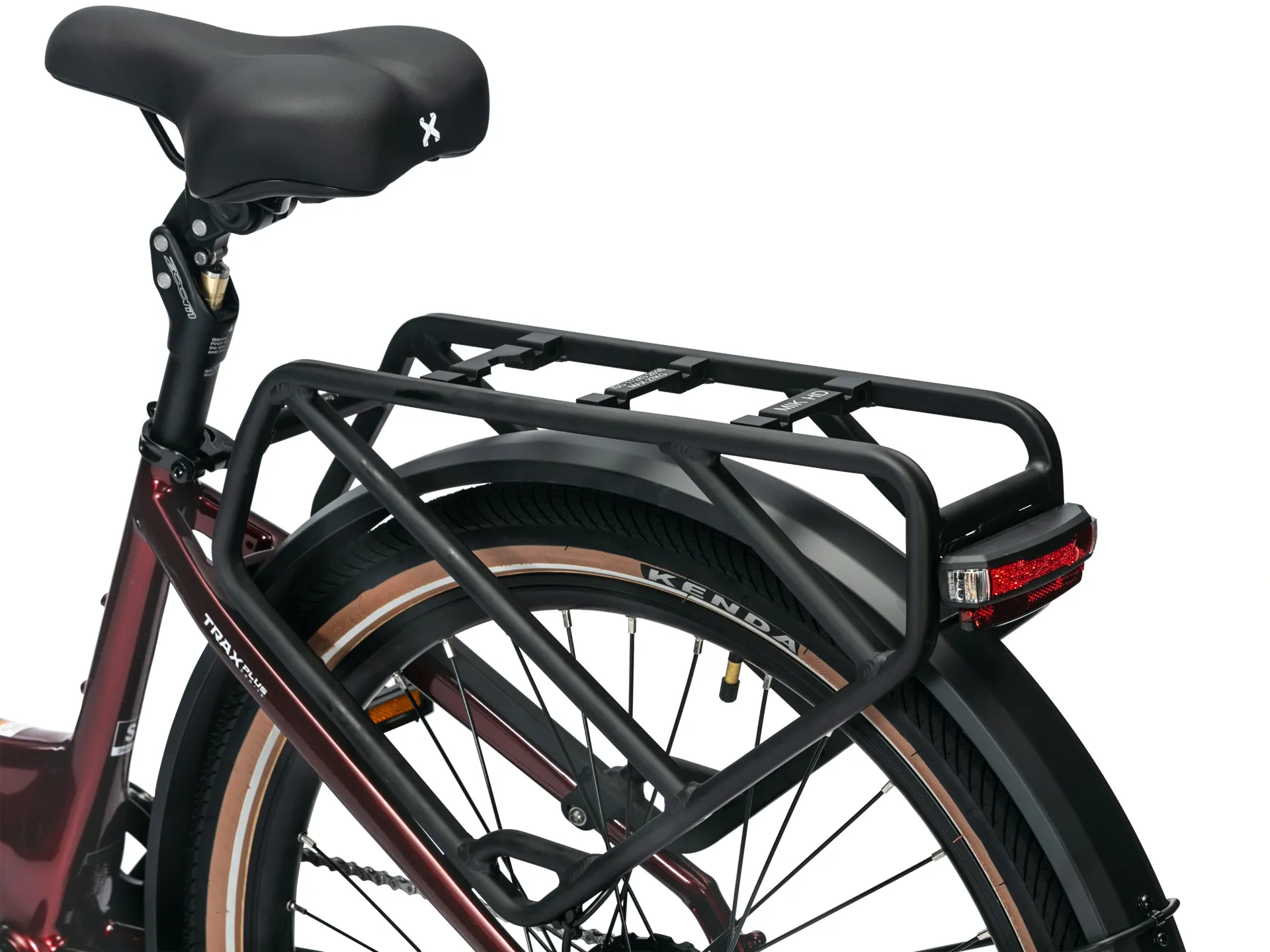

  • Rack
    Alloy rear model, MIK-compatible rear rack
  • Fender
    Alloy, 27.5", full coverage
  • Kickstand
    Adjustable side kickstand
Sizing Information

Geometry and Specifications

Size Model Frame Size Wheel Size Seat Tube Length (mm) Seat Tube Angle Head Tube Length (mm) Head Tube Angle Effective Top Tube Length (mm) Bottom Bracket Height (mm) Bottom Bracket Drop (mm) Chainstay Length (mm) Fork Offset (mm) Wheelbase (mm) Frame Reach (mm) Frame Stack (mm) Fork Travel (mm) Fork Height (mm)
Small Step Thru 15 in 27.5 in x 2.2 in 381 mm 72˚ 150 mm 68˚ 613.5 mm 296 mm 55 mm 480 mm 42 mm 1163 mm 410 mm 626 mm 65 mm 480 mm
Medium Step Thru 17 in 27.5 in x 2.2 in 432 mm 72˚ 150 mm 69˚ 639 mm 296 mm 55 mm 480 mm 42 mm 1168 mm 425 mm 631 mm 65 mm 480 mm
Large Step Over 20 in 27.5 in x 2.2 in 500 mm 72˚ 150 mm 69˚ 645 mm 296 mm 55 mm 480 mm 42 mm 1183 mm 440 mm 631 mm 65 mm 480 mm

Performance

Specification Details
Max Speed Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
Range Up To 70 Miles Per Charge
Weight Limit 383 lbs
Net Weight 68.5 lbs

E-Systems

Component Specification
Motor Ananda 48V/500W Hub-Drive Motor, 65Nm Max. Torque
Battery UL-2271 Certified, Internal, Removable, Lithium Ion, 48V/15Ah (720Wh) with Samsung Cells
Display Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote
Sensor Switchable Torque And Cadence Sensor Modes
Pedal Assist 0-5 Level Pedal Assist
Charger 2A / 100-240V Input / 54.6V Output
Lights Front Light & Rear Light
Controller 48Vx18A/12V

Components

Component Specification
Frame Hydroformed Aluminum Frame
Fork Zoom Front Suspension Fork, 65mm Travel
Chain KMC 1/2 in x 3/32 in
Crankset Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm
Rear Derailleur Shimano RD-M3020-8, Acera, 8-Speed
Cassette Shimano 8-Speed, 12-32T
Shifter Shimano 8-Speed
Bottom Bracket Square Taper Sealed Bearings, Torque & Cadence Sensors Included
Tires KENDA 27.5 in x 2.2 in, w/ Reflective Stripes, Puncture-Resistant, E-50 Rated
Front Hub Alloy, 36H, 100mm, 3/8 in Axle w/ Nuts
Rear Hub 48V 500W/ 28 MPH, 65Nm
Rims Alloy Single Wall Front / Double Wall Rear, 36H, 27.5 in x 2.2 in, w/ Eyelets
Spokes Stainless 13G Front / 12G Rear
Brakes Tektro Hydraulic, w/ Brake Sensors
Rotors 180mm / 180mm
Saddle DDK DE-430 Comfort, 200mm Wide
Seat Post Troxus w/ Suspension, Alloy 30.9mm x 400mm, Adjustable
Seat Post Clamp Alloy, 35mm w/ Quick Release
Stem Zoom Alloy, Forged, Adjustable, TDS-D634B-8/FOV, Ext. 90mm, ICR type w/ Internal Cable Routing
Handlebar Zoom Alloy, 31.8mm x 620mm, 35˚ Backsweep
Grips Ergonomic Comfort
Pedals Alloy, 9/16 in axles, w/ BS reflectors
Headset Gyneyea T192KS-56, Threadless 57/56mm, W/ Internal Cable Routing
Rack Alloy Rear Model, MIK-Compatible Rear Rack
Fender Alloy, 27.5 in, Full coverage
Kickstand Adjustable Side Kickstand
