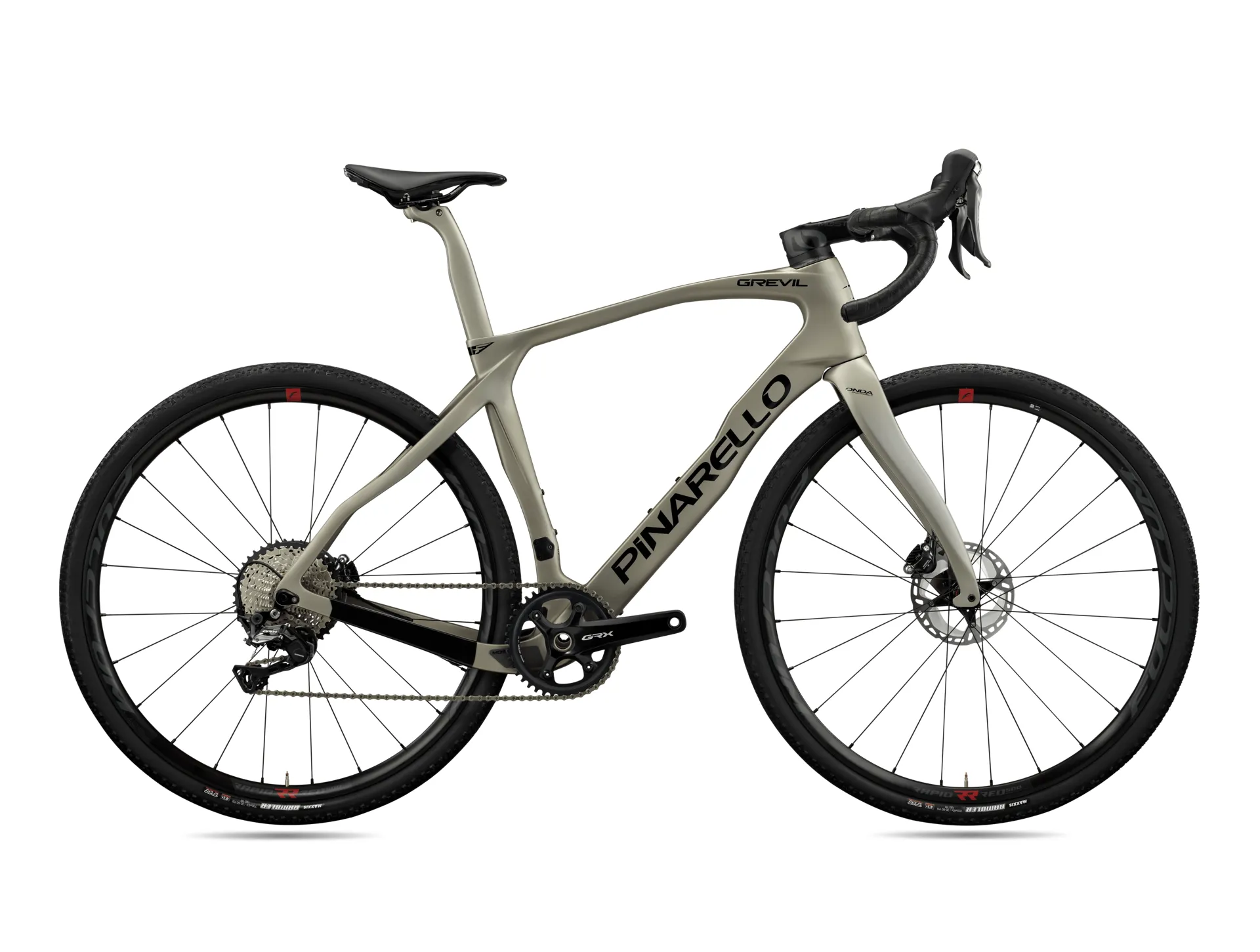

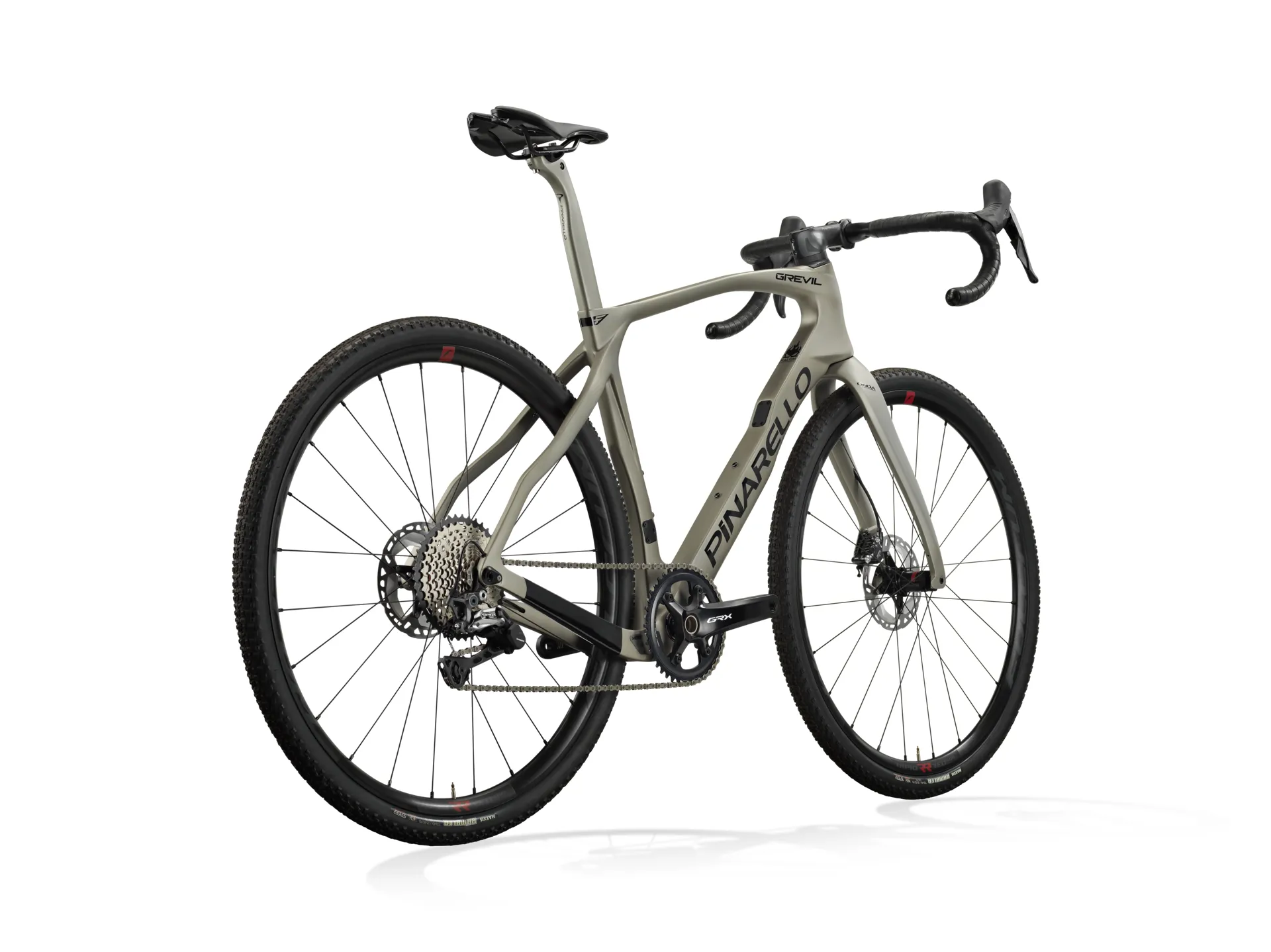

If you want to win a Gravel race, this is the bike for you. This is the off-road DOGMA.

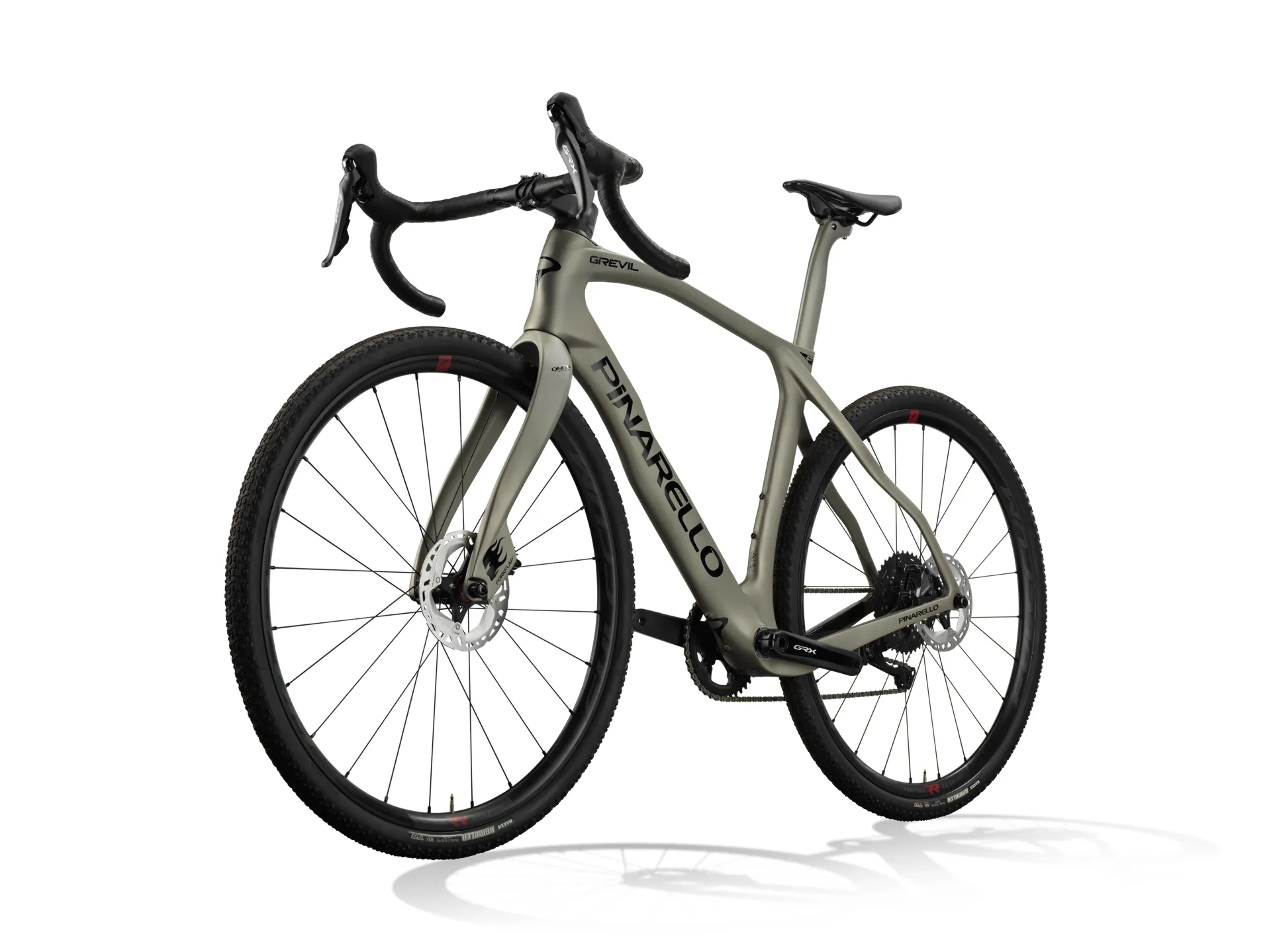

The versatile GREVIL F is ready for anything. It can accommodate any kind of wheel or tyre combination, adapting to your every need, giving you the freedom to push the limits and compete with yourself. Even off road, aerodynamics count. Every watt saved brings you closer to victory, so the GREVIL F’s design puts a major focus on aerodynamics and rigidity.

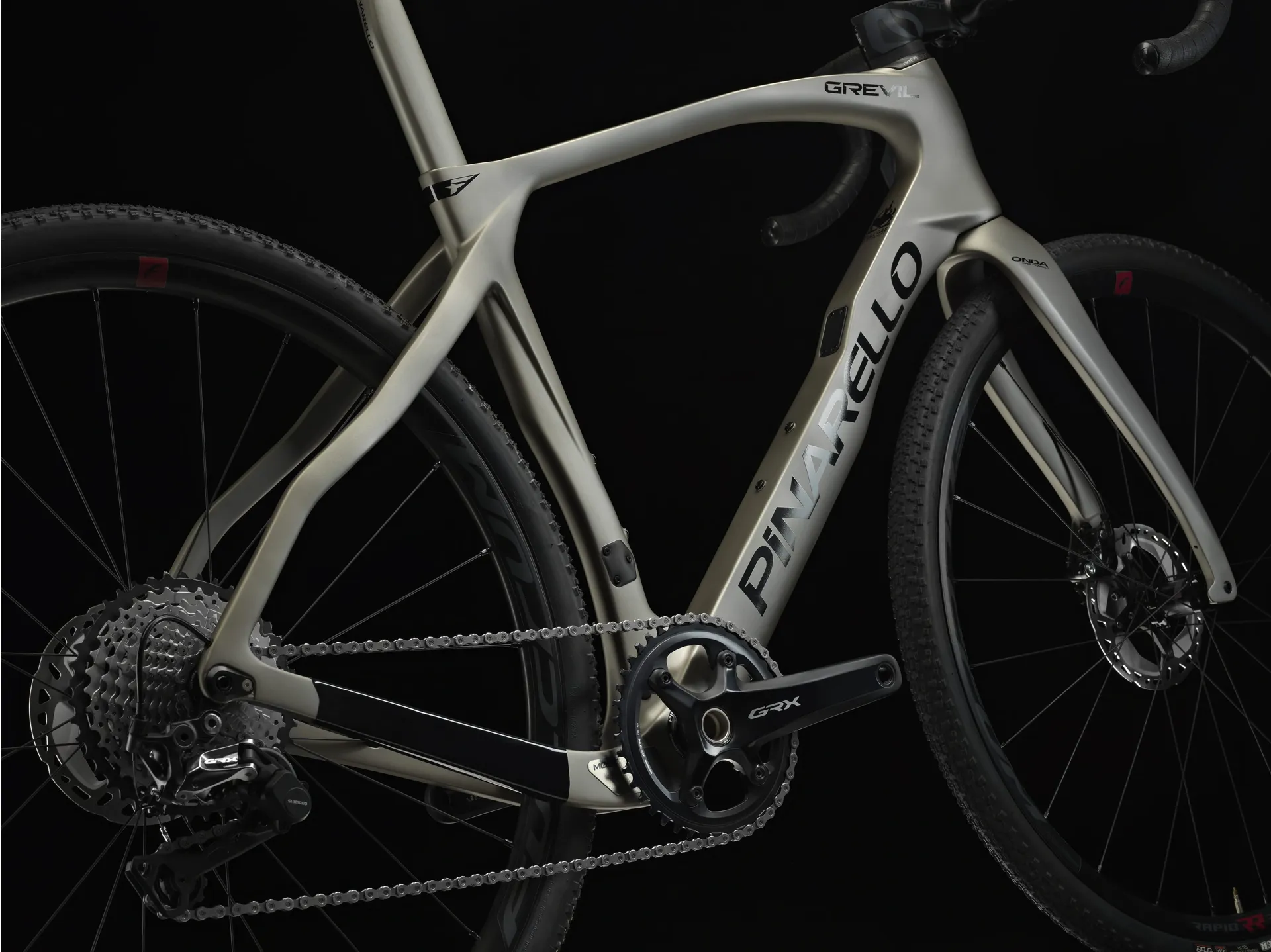

Gravel races often exceed 200km, with speeds reaching 70km/h, every watt saved brings the rider a little bit closer to victory. The GREVIL F features a differentiated geometry and rake to ensure the same trail and control across all frame sizes. Compared to a traditional road bike, the GREVIL F has a shorter reach and higher stack to create an elongated position, offering better comfort and handling. An increased seat tube angle allows for greater wheel clearance, while the modified fork angle and rake ensure better handling and riding comfort. Chain stays measure between 422-425mm, providing the best compromise between responsiveness and comfort, and are compatible with 700c or 650b wheels.

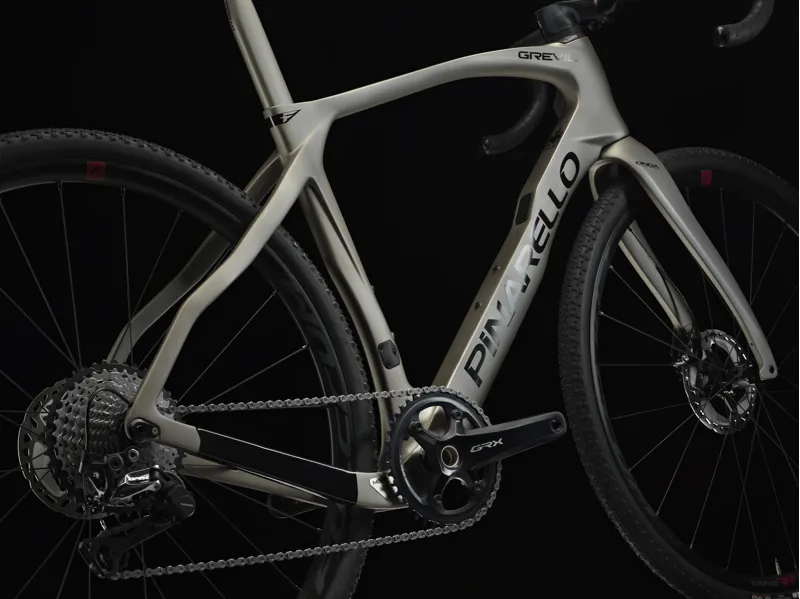

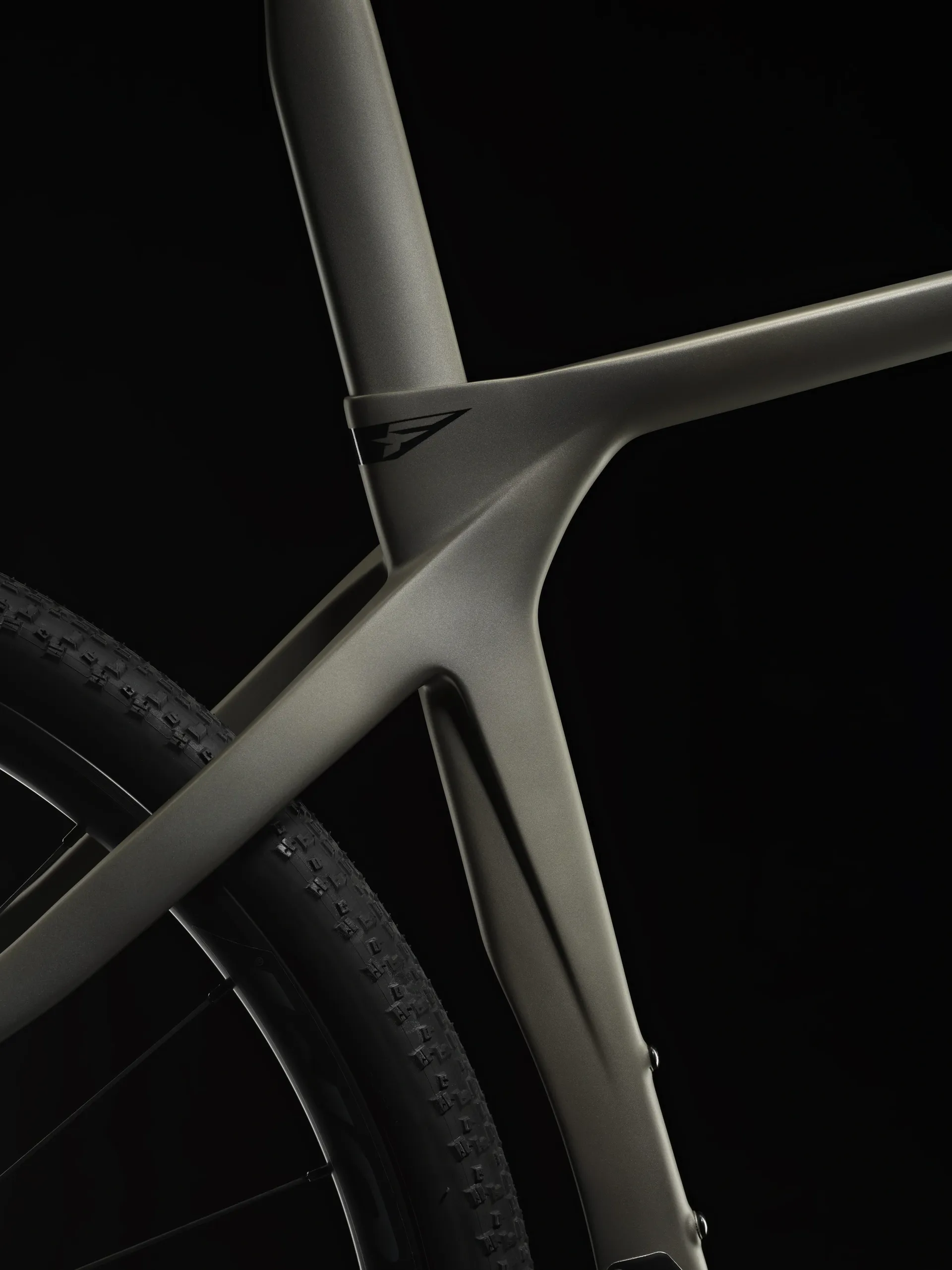

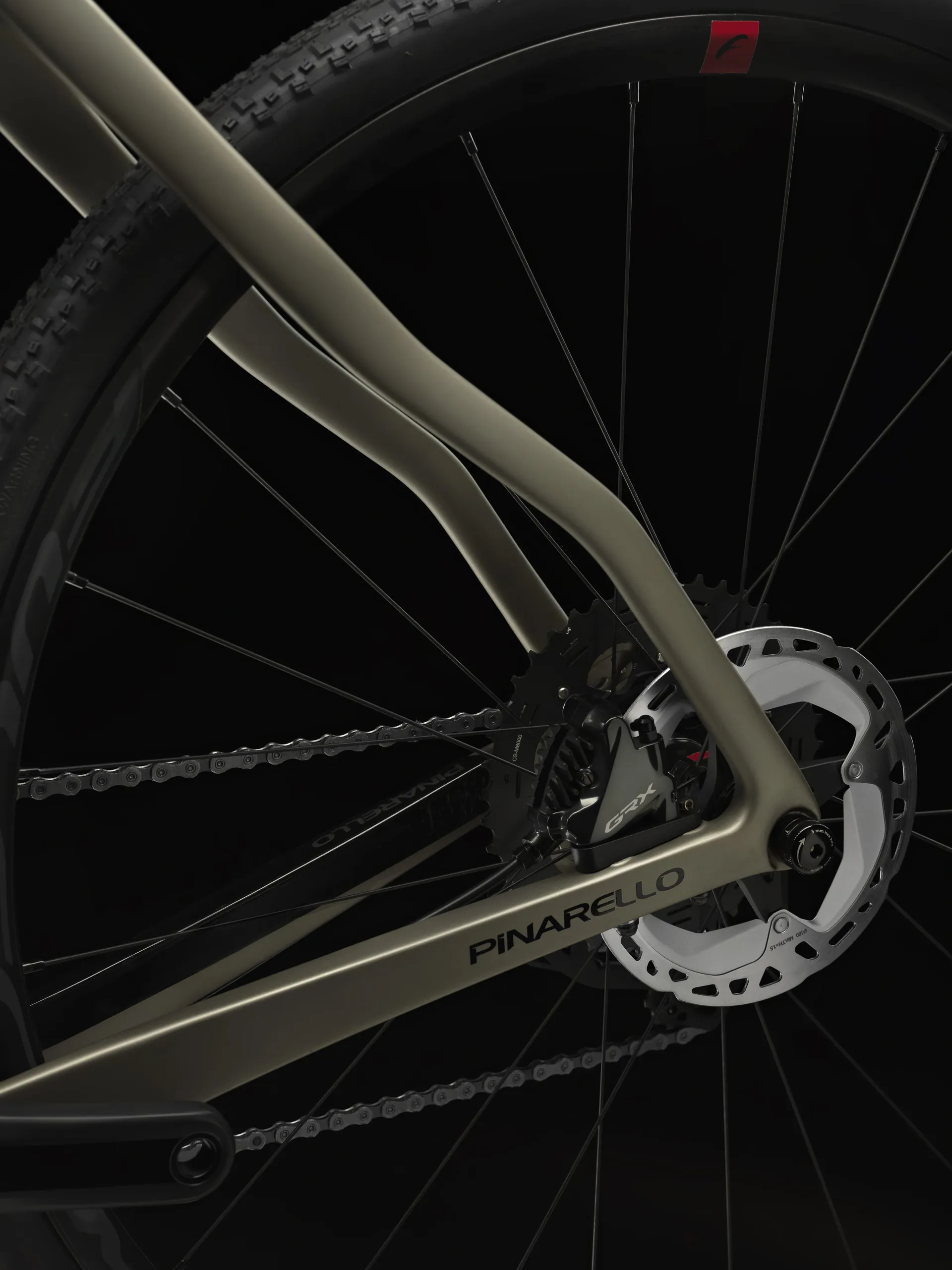

The Twin Arms design provides maximum energy transmission and vibration absorption. The right chain stay is rotated downwards, as is the right seat stay, to have both rear triangles symmetrical with a uniform response to pedal strokes. Different connection points for the seat stays allow the seat tube to absorb impacts coming from the rear wheel in a more uniform way.
Features:

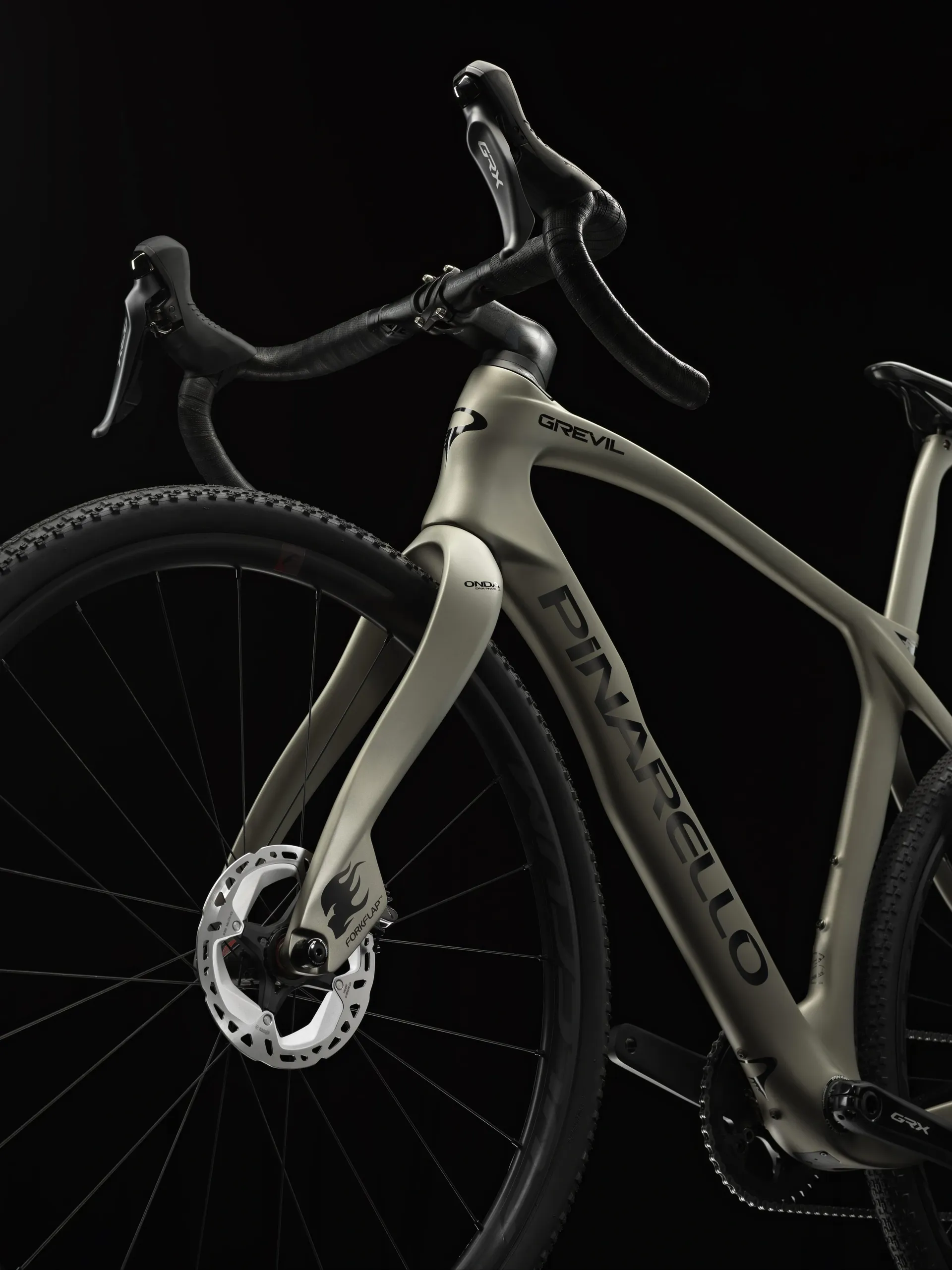

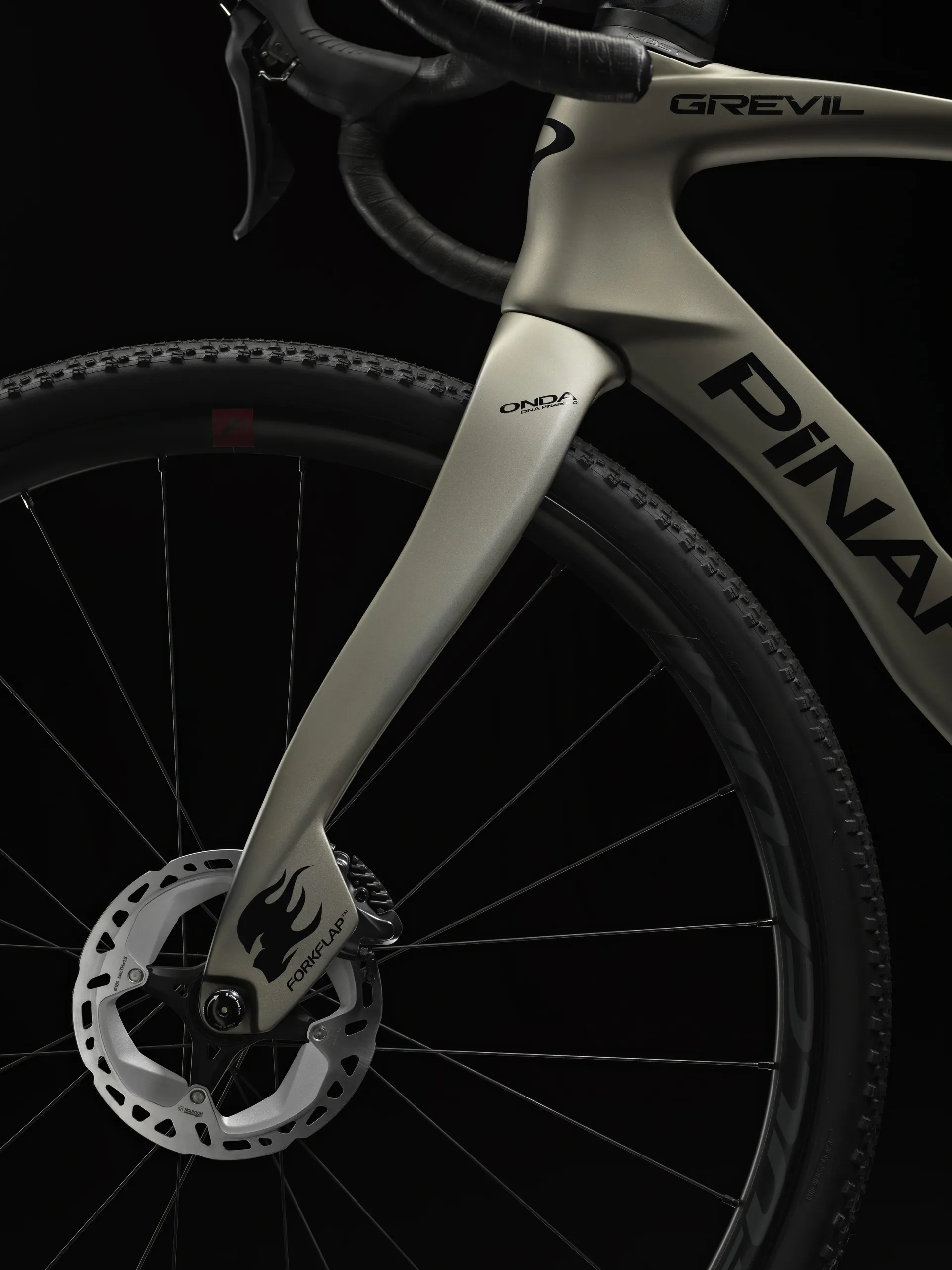

- Fork Flap: Stabilises the flow of air on the front end and greatly improves the aerodynamic penetration coefficient.
- Flat Back Profile: Derived from the DOGMA, this profile reduces aerodynamic drag on the tube, especially when there are bottles present.
- TiCR: The complete integration of all cables offers aerodynamic improvement and allows for greater ease when loading bags.

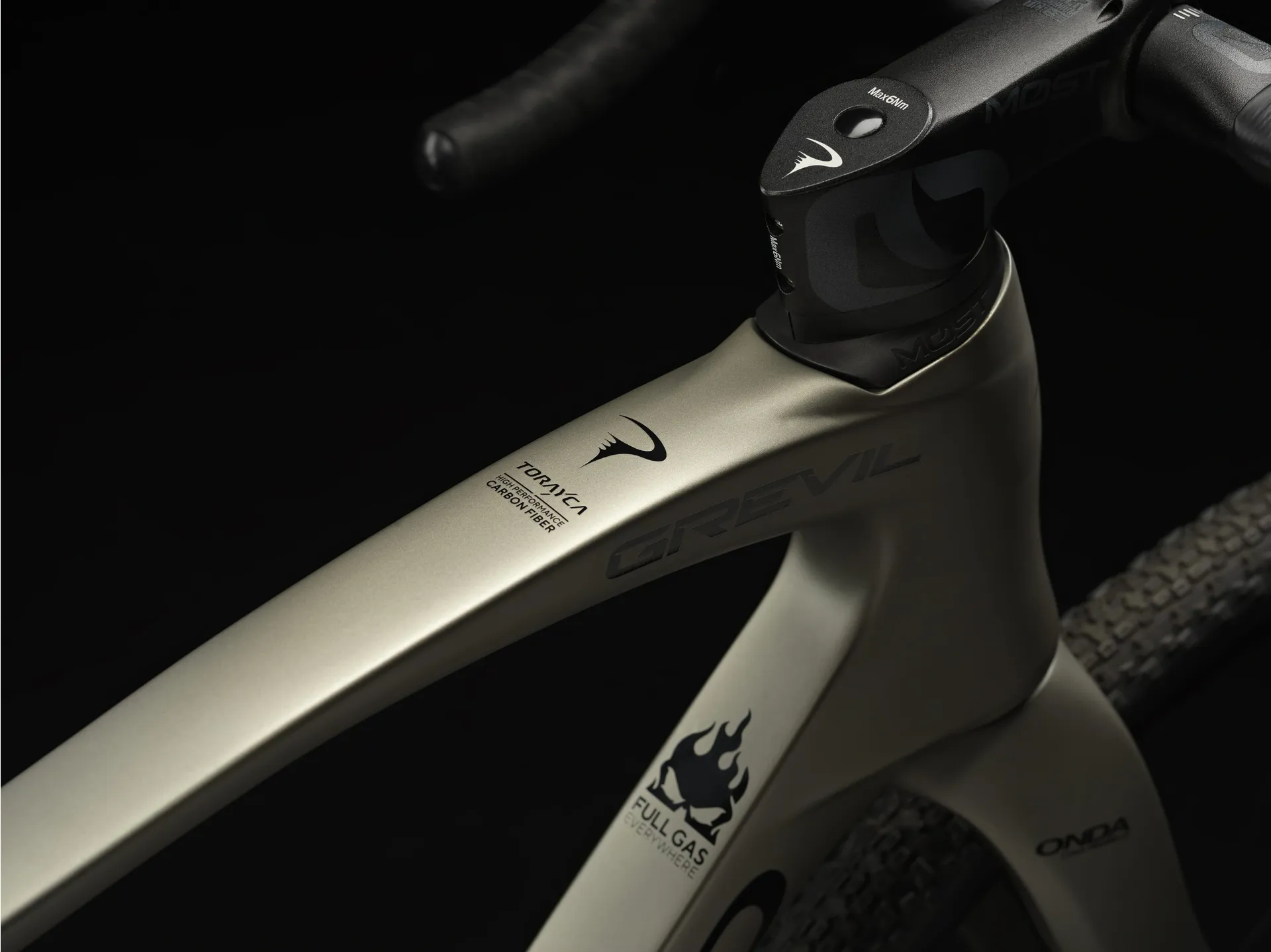

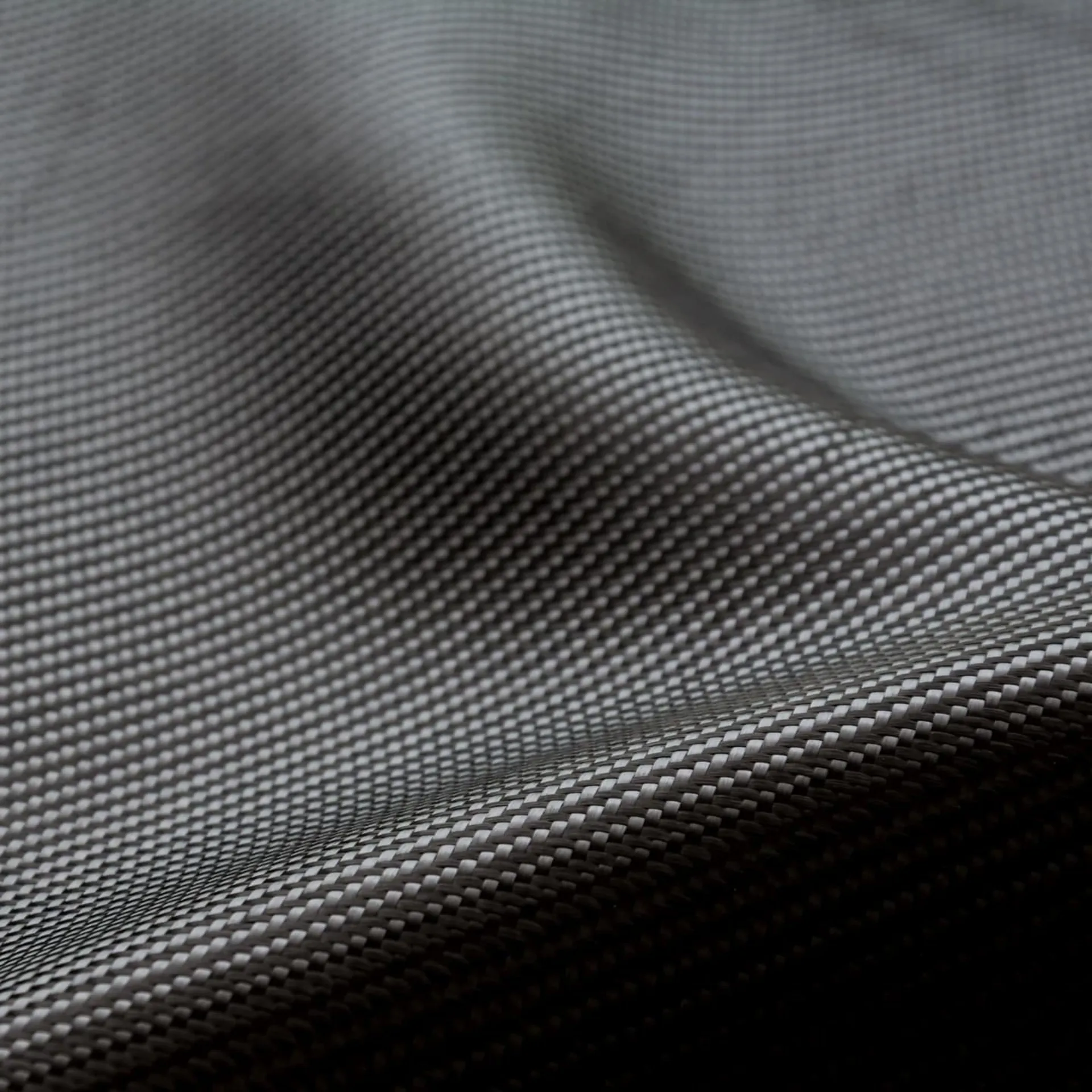

- T700 Carbon Fiber: Pinarello uses T700 from Toray, combining the perfect mix of HM (high modulus) and HT (high strength) fibers to achieve the ultimate balance of rigidity and vibration absorption.
