Confluence is Salsa's light electric gravel bike, made for those who want to squeeze more adventure into each day with 40Nm of torque assist.
Confluence is Salsa's light electric gravel bike, made for those who want to squeeze more adventure into each day with 40Nm of torque assist.
Salsa

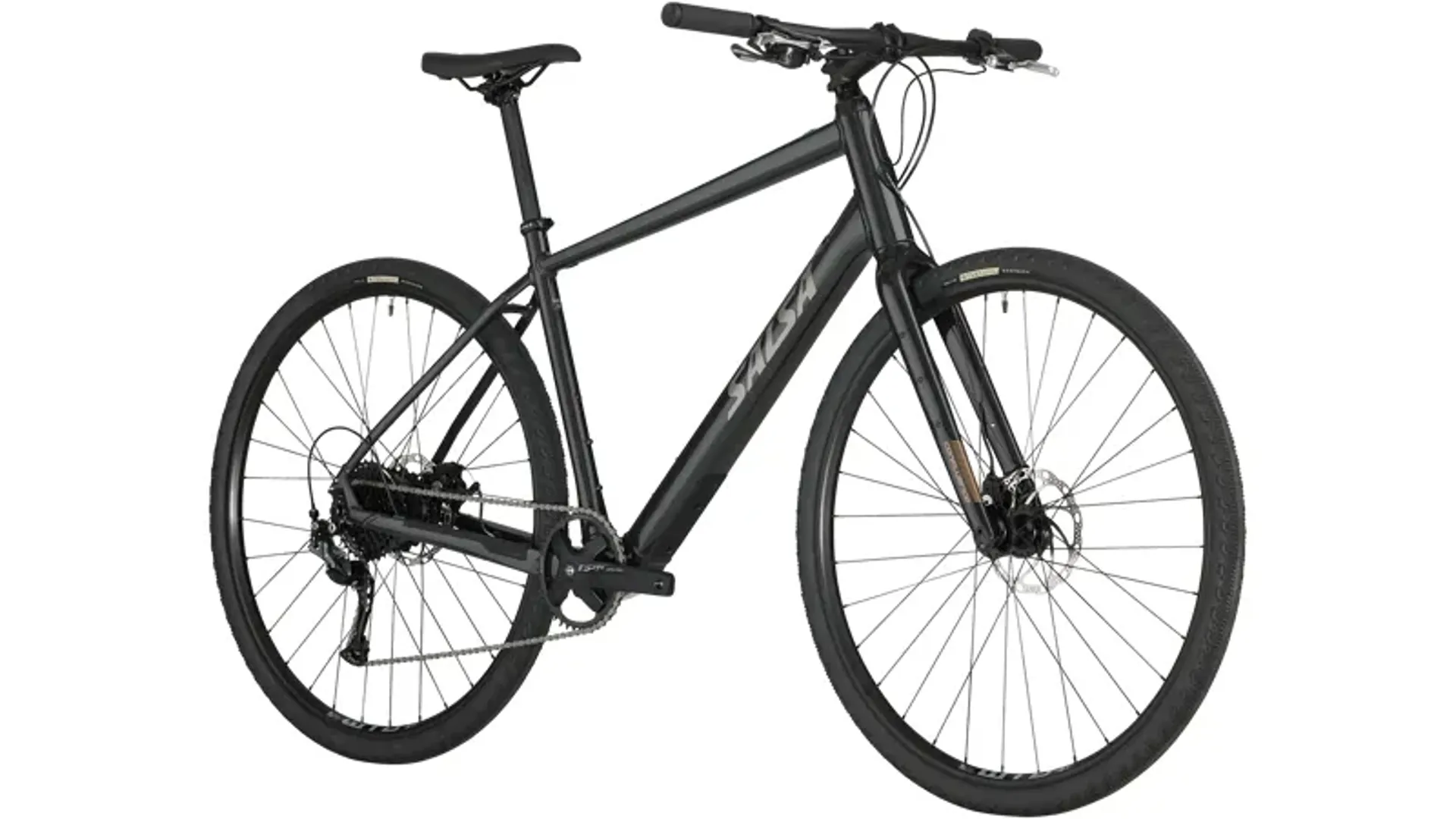

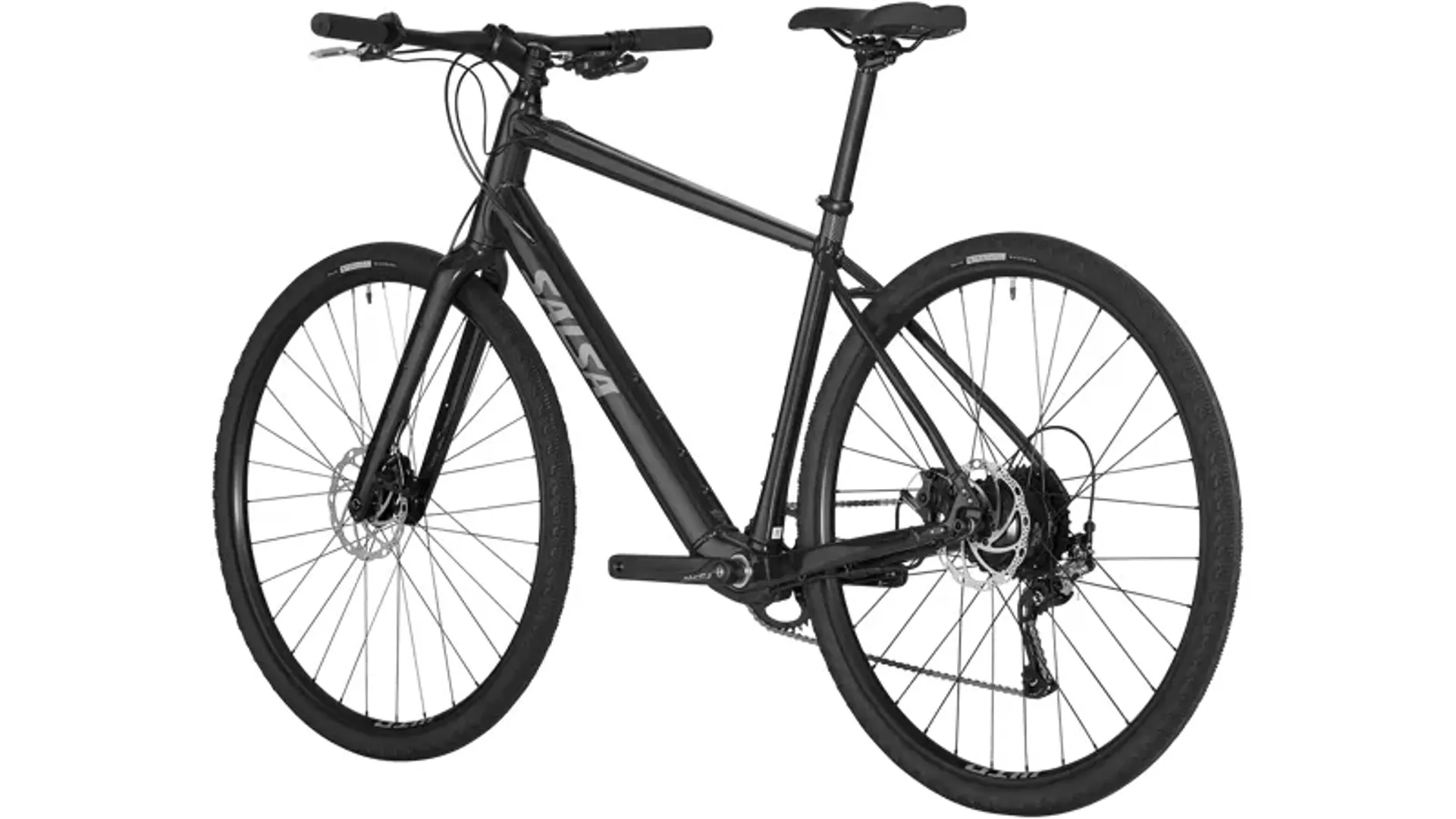

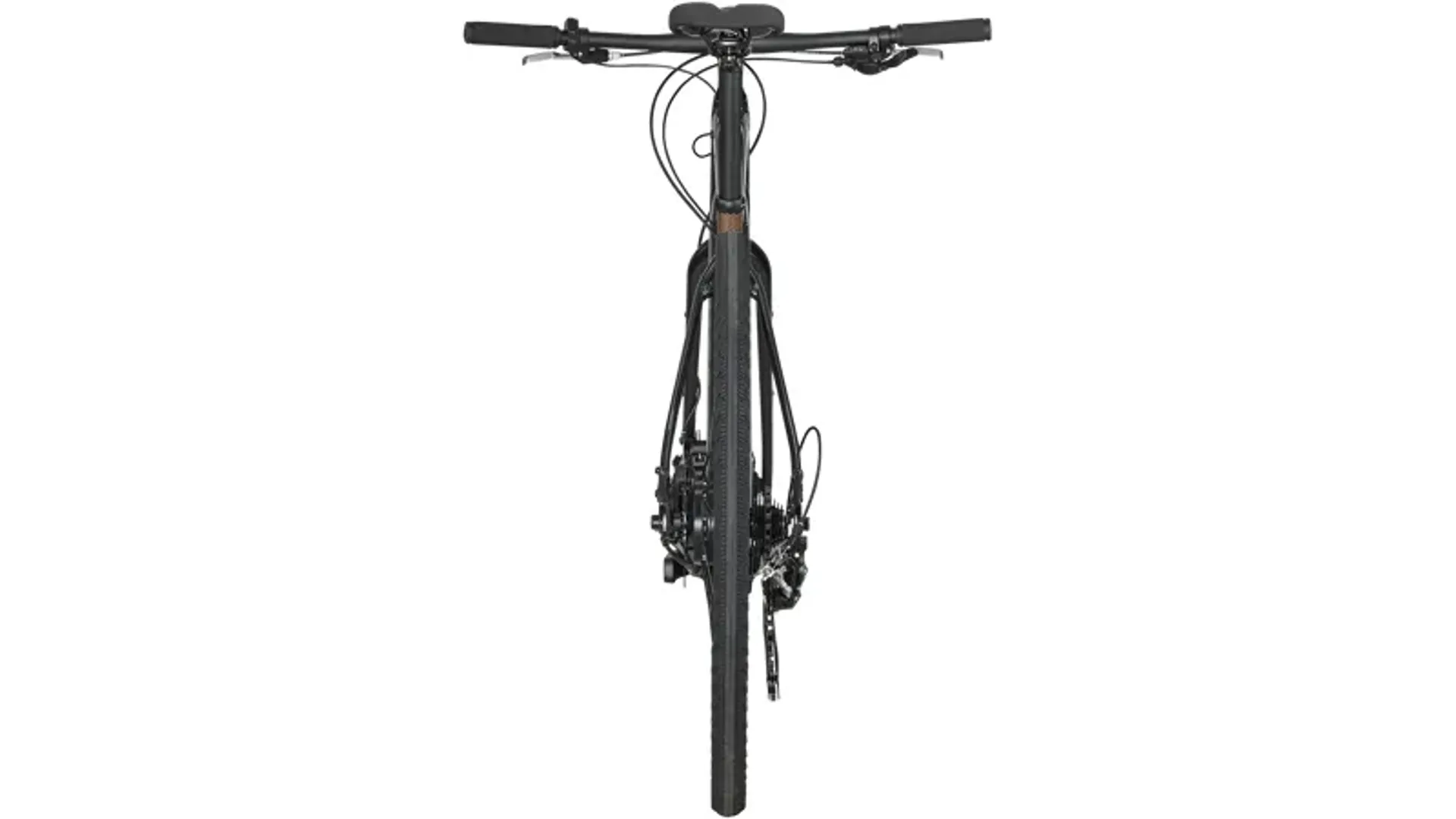

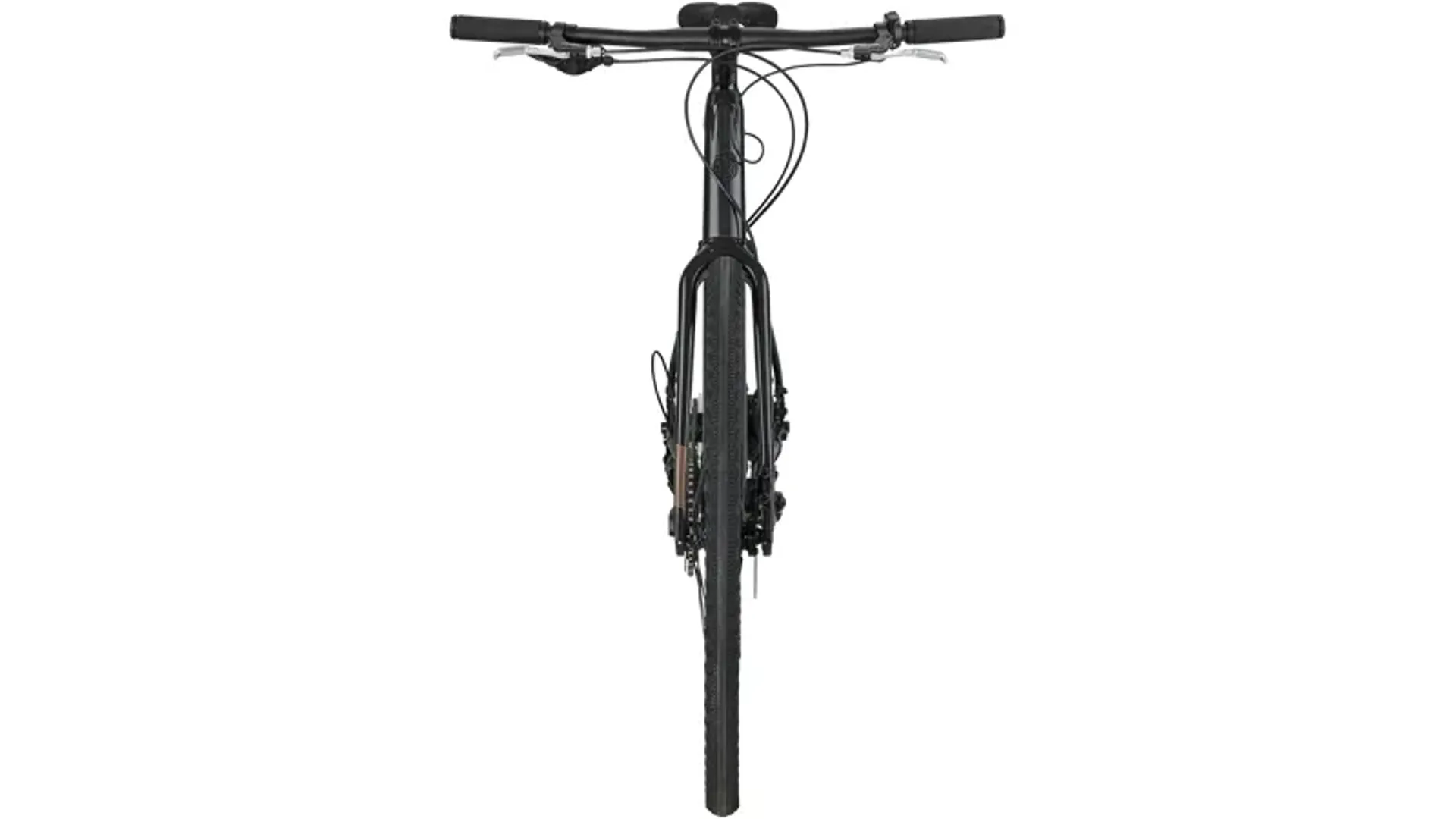

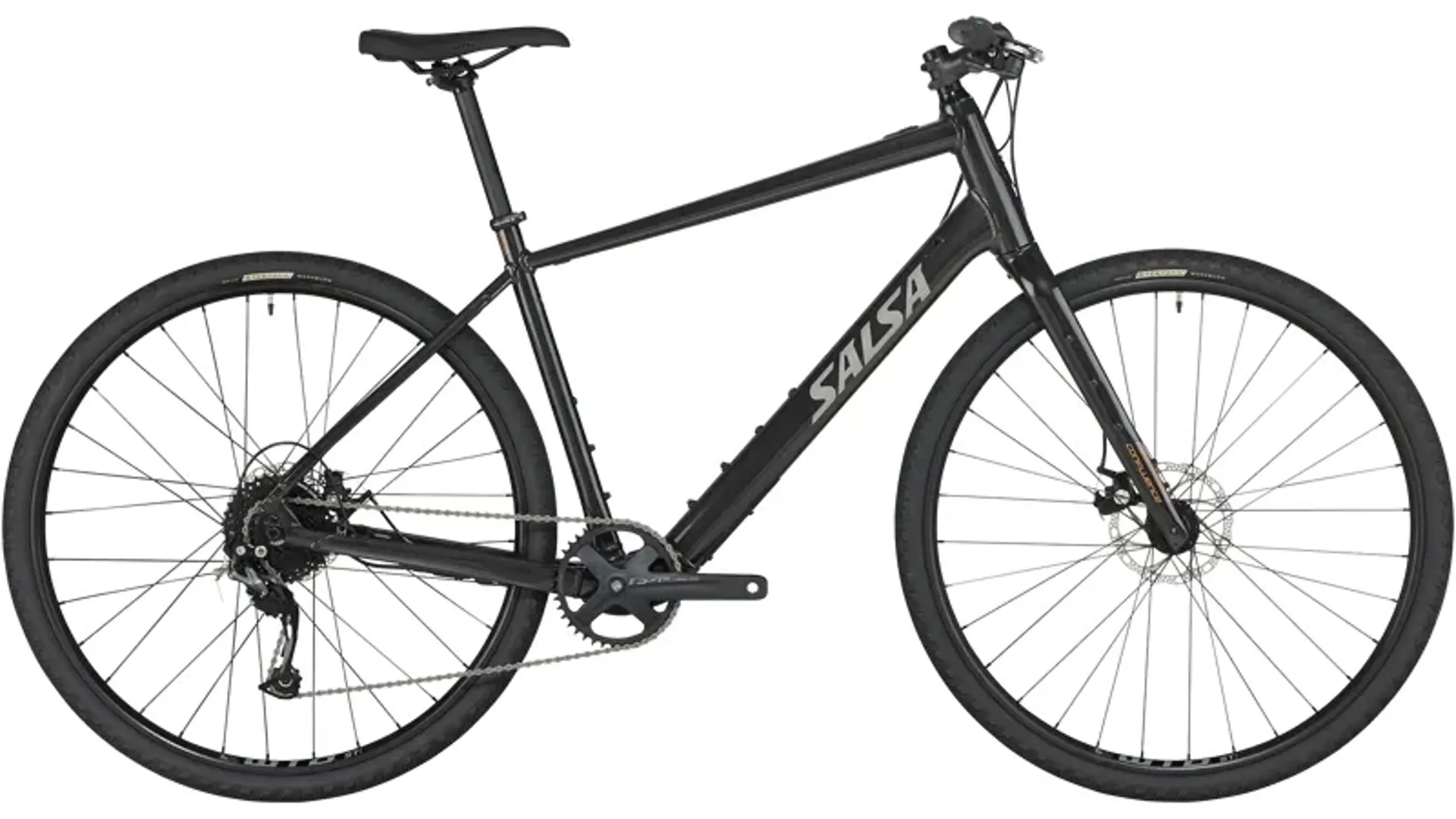

Salsa Confluence Flat Bar Altus 1x9 Ebike Black Medium

$2,430.00 $2,699.99 10% off
Size Guide
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

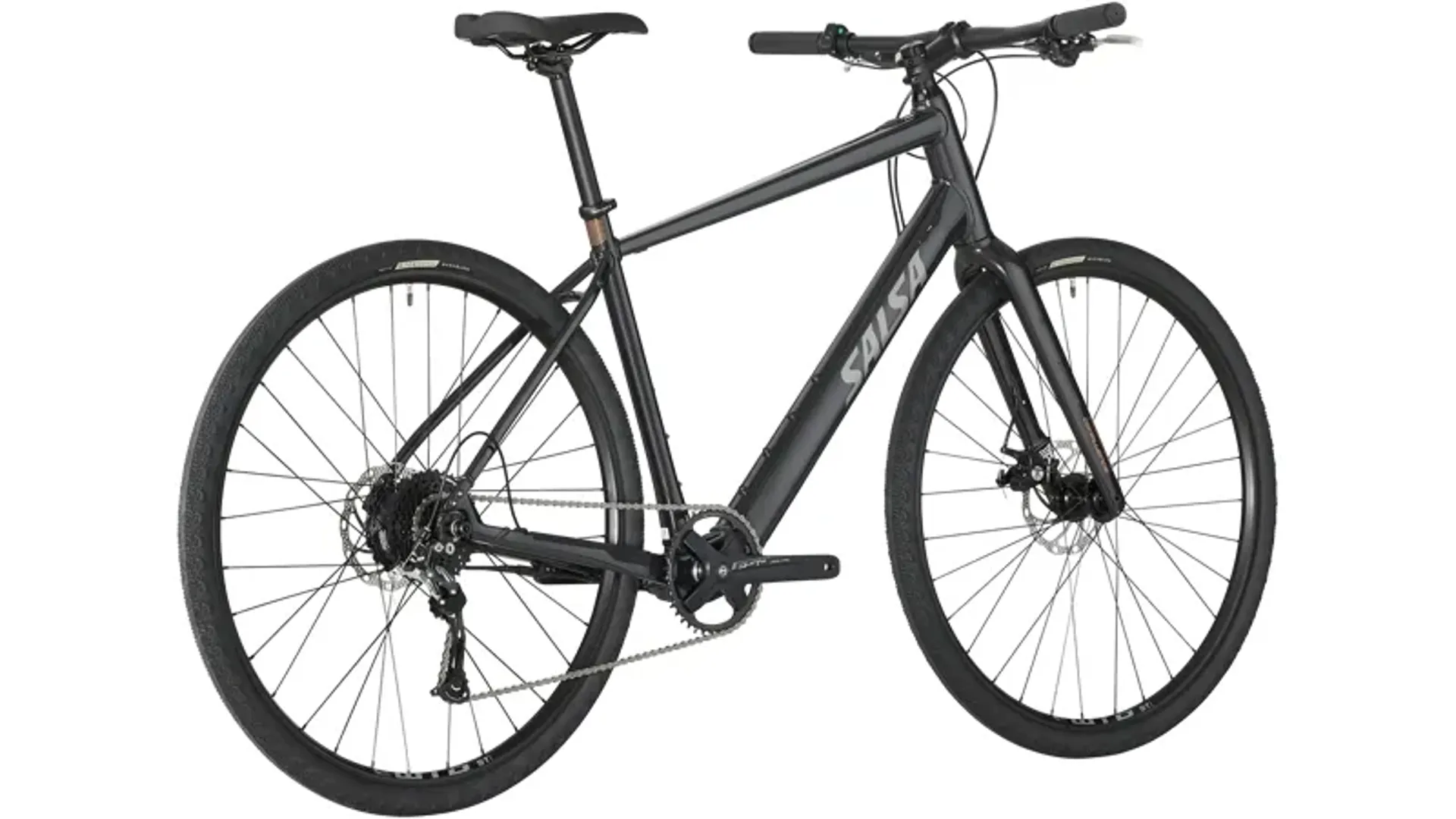

Salsa Confluence Flat Bar Altus 1x9 Ebike Black Medium

Season:2025/2026

Brand:Salsa

Code:BK2517

Confluence is Salsa's light electric gravel bike, made for those who want to squeeze more adventure into each day.

Confluence Flat Bar Altus opens up more ride opportunities with a MAHLE hub-drive electric assist good for 40Nm of torque. This e-gravel bike features comfortable, confident upright geometry and a flat handlebar for leverage and control. The aluminum frame and carbon fork strike a balance of durability and performance you will appreciate, with frame and fork cargo mounts to keep you fueled on those longer rides, or to load up with bikepacking gear. Shimano's Altus 1x9 drivetrain is a proven workhorse that will get you through any ride without a fuss.

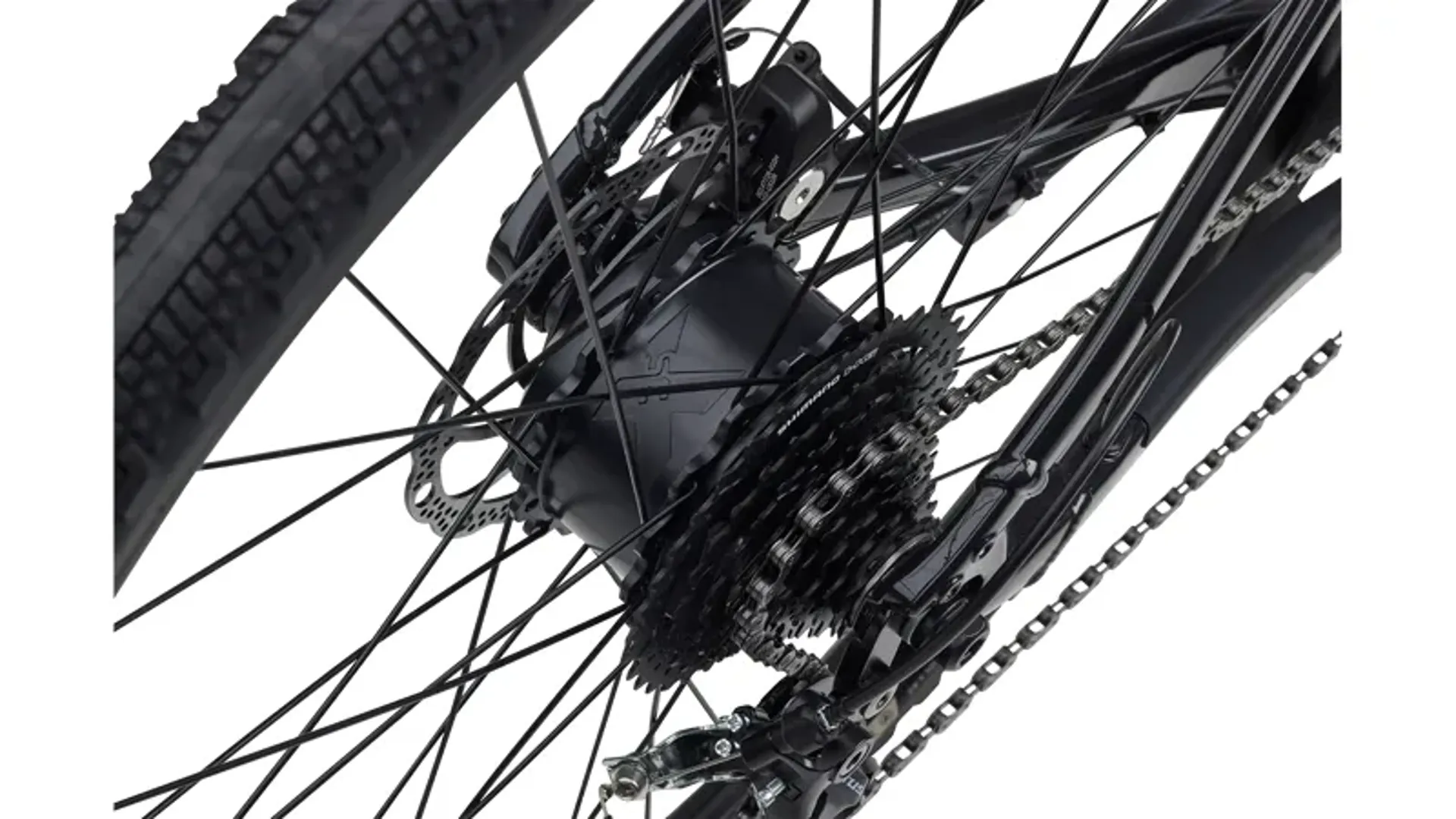

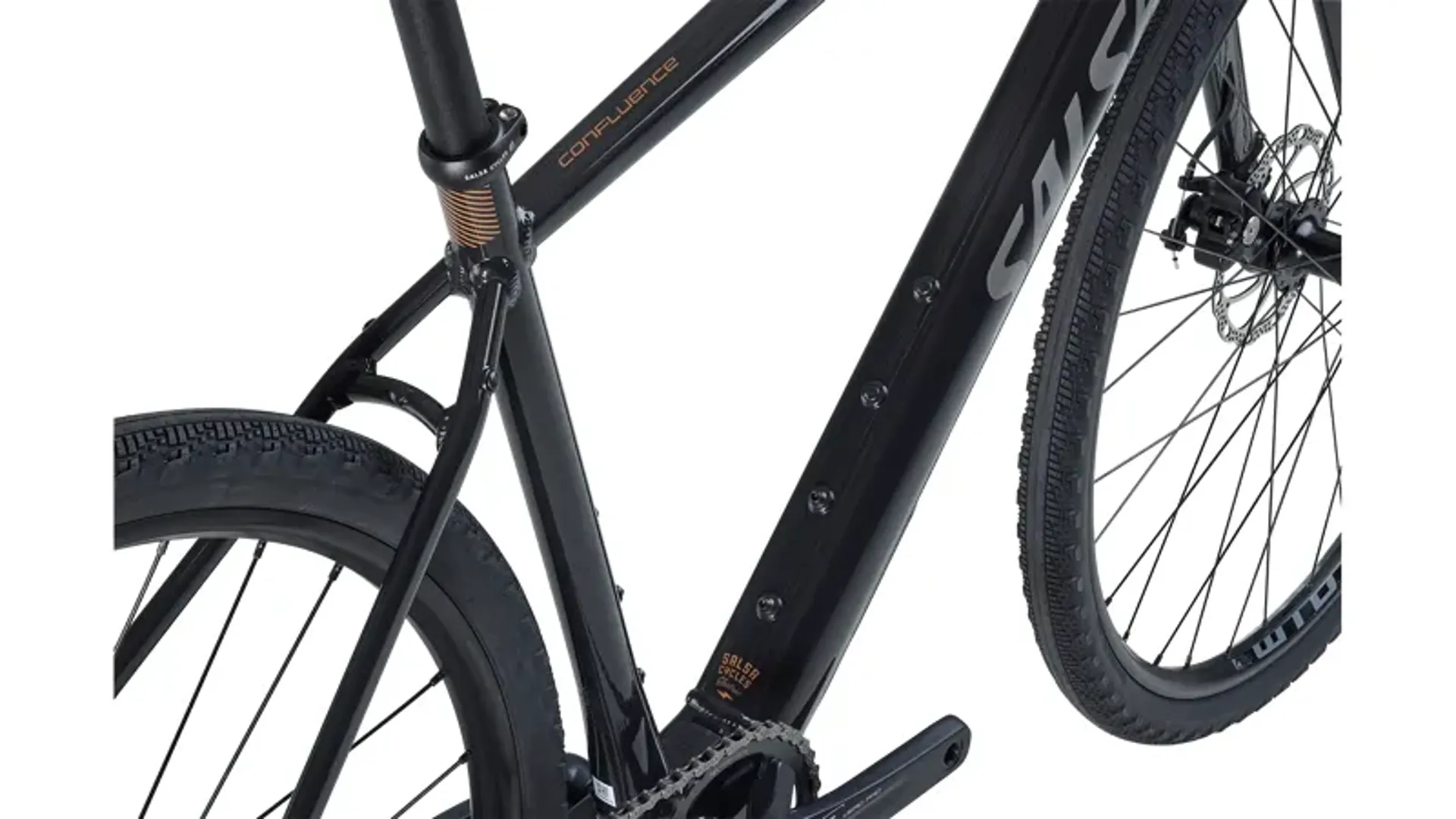

The 6061-T6 aluminum alloy tubing is developed specifically for the Confluence frame and is heat-treated to T6 alloy standards for extra strength and durability. The Confluence Carbon fork is lightweight, comfortable, cargo-ready, and gives you loads of tire clearance to play with. This Class 1 rear hub-drive motor delivers electric assist up to 32kph (20mph). It is one of the lightest e-bike systems in-market, and its low-profile appearance means that Confluence looks like a regular gravel bike.

The MAHLE X35+ system offers three assist levels, and sensors detect when you are pedaling to moderate the level of support generated at the hub. The 250Wh battery is nestled inside the downtube, hitting the ideal combination of efficiency and weight. The system offers Ant+ connectivity for third party devices and Bluetooth for app integration via the MySmartBike app for customization, metrics, and mapping.

Features:

  • MAHLE X35+ Class 1 hub-drive system with 40Nm max torque
  • 250Wh internal battery in downtube
  • Capable of up to 458Wh with MAHLE Range Extender battery (sold separately)

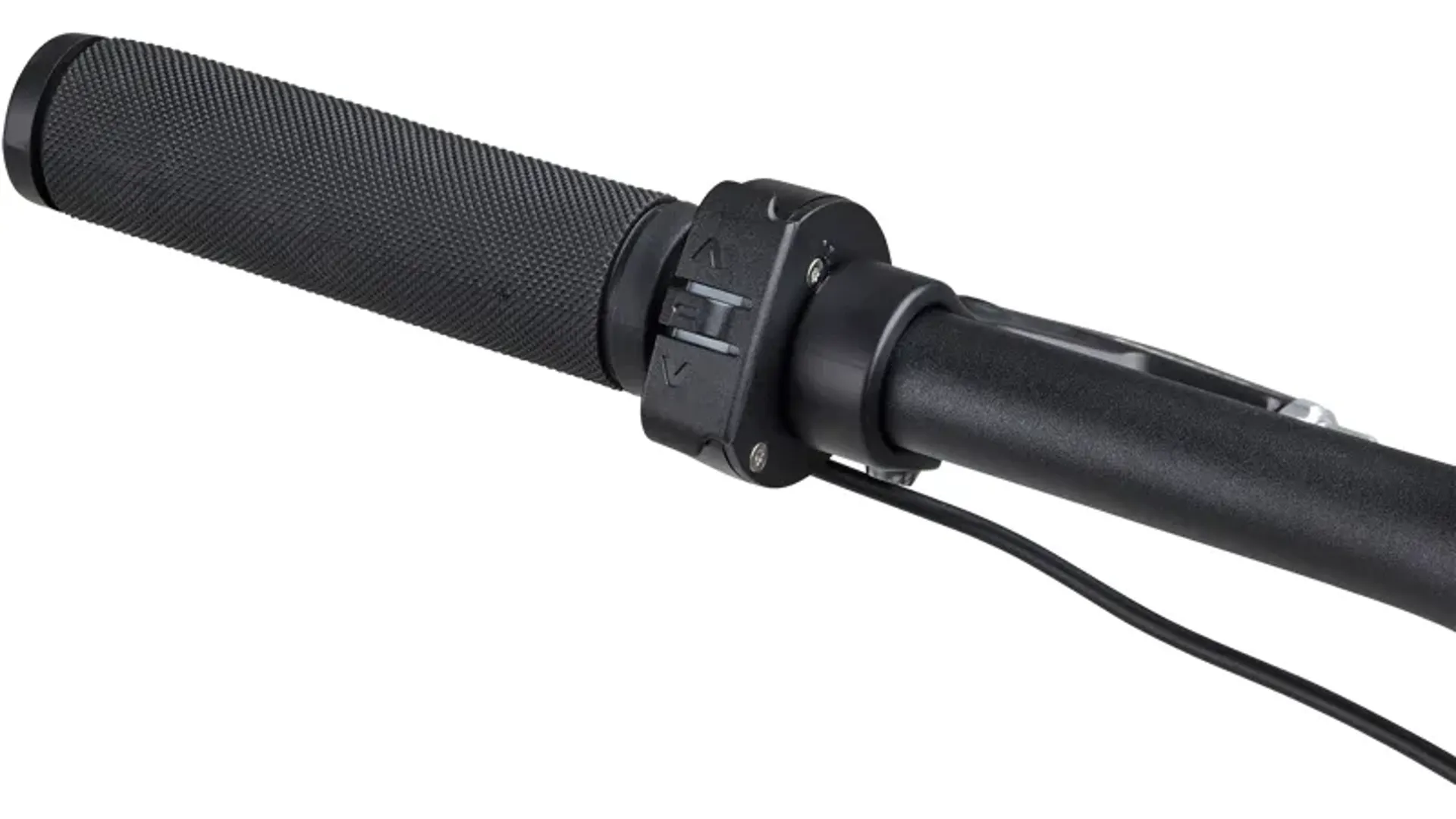

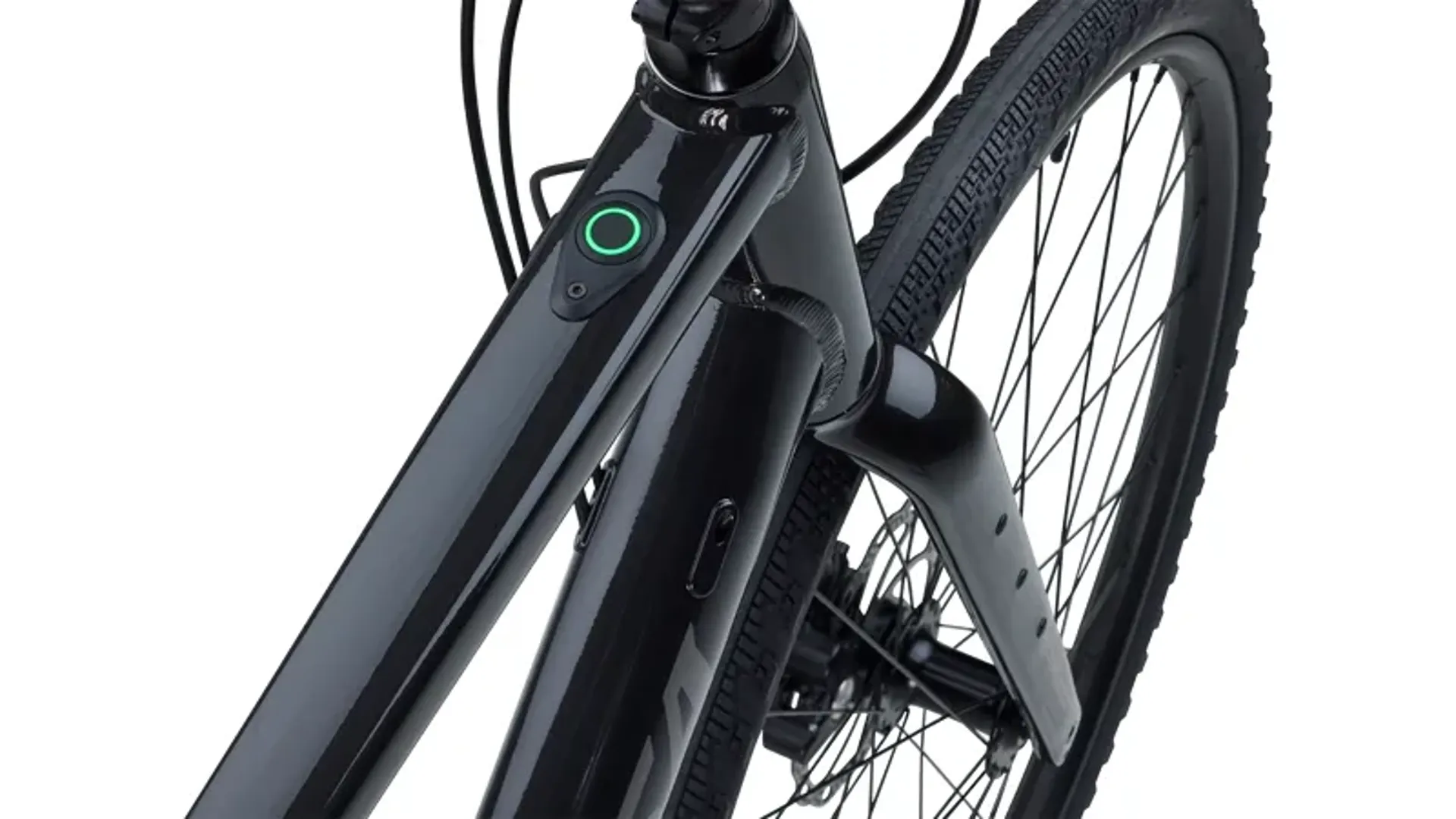

  • iWOC One compact remote top tube controller
  • Massive 700c x 50mm tire clearance (max 42mm with fenders)
  • On-bike cargo features including rack mounts and Three-Pack mounts on fork
  • MAHLE X35 system is UL2849 certified and battery is UL2271 certified
Technical Information
  • Frame
    Confluence
  • Color
    Black
  • Fork
    Confluence Carbon
  • Headset
    FSA
  • Seatpost
    Promax SP-2016
  • Stem
    Salsa Guide
  • Grips/Bar tape
    Velo VLG-311D2
  • Saddle
    WTB Volt
  • Handlebar
    Salsa Salt Flat
  • Lights included
    No
  • Rear derailleur
    Shimano Altus M2000
  • Cassette
    Shimano HG200-9, 9-speed, 11–36t
  • Drive type
    Hub-Drive
  • Chain
    KMC Z9
  • Crankset
    FSA Vero Pro, 40t
  • Shifter
    Shimano Altus M2010
  • Brake levers
    Tektro RS360A
  • Brake calipers
    Tektro MD-U510/MD-U310
  • Assist levels
    3
  • Bottom bracket
    RPM Cartridge Bottom Bracket
  • Rotors
    Tektro TR160-22, 160 mm, 6-bolt
  • Drive unit
    MAHLE X35+
  • Ebike classification
    Class 1
  • Max assist speed
    20 mph / 32 kph
  • Motor torque
    40Nm
  • Battery capacity watt hours
    250Wh
  • Battery type
    Li-ion
  • Removable battery
    Removable for service
  • Estimated charge time
    3 hours
  • Charger included
    Yes
  • Range estimate
    40 miles
  • Throttle
    No
  • Walk assist
    No
  • Front tire
    Teravail Washburn 700c x 42mm, Durable casing, wire bead
  • Rear tire
    Teravail Washburn 700c x 42mm, Durable casing, wire bead
  • Front hub
    WTB Serra
  • Rear hub
    MAHLE X35+
  • Spoke
    Straight gage, black
  • Rim
    WTB ST i23, 32h
  • Complete bike weight
    32.5 lb (Large frame)
  • Max tire outer diameter
    700 x 50mm
  • Frame construction
    Aluminum
  • Fork construction
    Carbon
  • Fork offset
    50mm
  • Rear spacing
    136mm
  • Rear axle size
    10x1mm
  • Rear brake (Rotor)
    Flat-mount
  • Front brake (Rotor)
    Flat-mount (160mm)
  • Headset - Upper
    IS41
  • Headset - Lower
    IS52
  • Front spacing
    12x100mm
  • Front axle size
    M12xTP1.5x120mm
  • Steerer tube
    350mm
  • Crown race
    Integrated
  • Stem clamp
    Yes (internal)
  • Seatpost diameter
    27.2mm
  • Seatpost clamp
    32.0mm
  • Front derailleur clamp
    31.8mm
  • Front derailleur type
    Down swing, down pull
  • Derailluer hanger
    10x1mm threaded 136mm proprietary spacing/with proprietary derailleur hanger

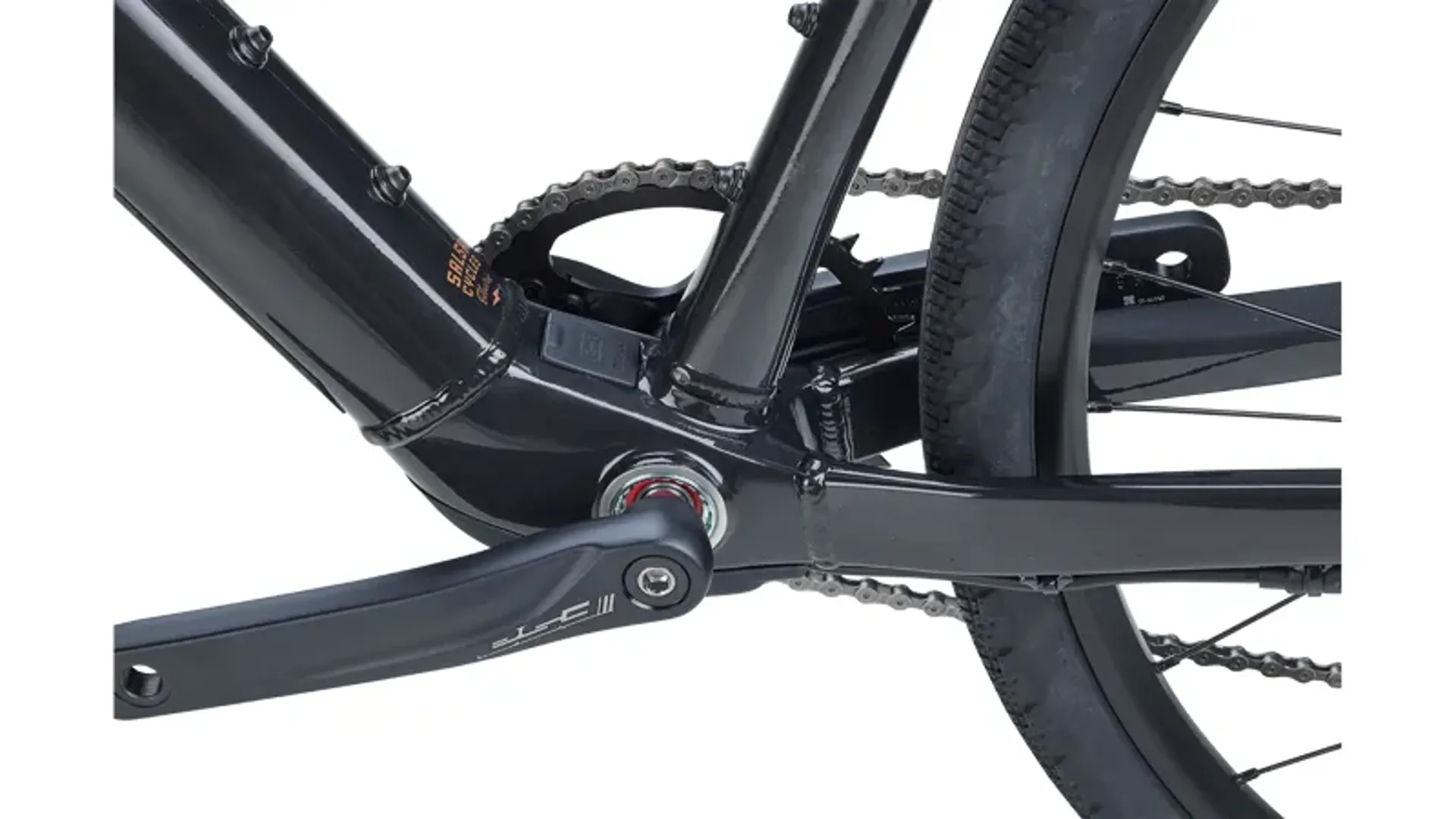

  • Bottom bracket
    68mm BSA threaded
  • Crankset (Max ring)
    1x: 42t max (47mm chainline); 2x: 48/33t max (47mm chainline)
  • Accessory mounts
    Downtube Accessory Mounts: No; Rack Mounts (frame): Yes
  • Bottle mounts
    2
  • Fork mounts
    Bottle Mounts: Three-Pack mounts (two sets); Rack Mounts (fork): Yes
  • Front fender mounts
    Yes
  • Rear fender mounts
    Yes
  • Geometry measurement basis
    An unsprung bike (no sag), a 700c x 42 mm tire measuring 710 mm in diameter, Standover (B) for all sizes is measured vertically to top of toptube from a position 50 mm forward of BB center
  • Geometry - Effective Top Tube (X-Small)
    550.0
  • Geometry - Effective Top Tube (Small)
    570.0
  • Geometry - Effective Top Tube (Medium)
    600.0
  • Geometry - Effective Top Tube (Large)
    625.0
  • Geometry - Effective Top Tube (X-Large)
    650.0
  • Geometry - Stand Over (X-Small)
    622.0
  • Geometry - Stand Over (Small)
    659.0
  • Geometry - Stand Over (Medium)
    721.0
  • Geometry - Stand Over (Large)
    761.0
  • Geometry - Stand Over (X-Large)
    800.0
  • Geometry - Reach (X-Small)
    394.0
  • Geometry - Reach (Small)
    406.0
  • Geometry - Reach (Medium)
    424.0
  • Geometry - Reach (Large)
    438.0
  • Geometry - Reach (X-Large)
    451.0
  • Geometry - Stack (X-Small)
    510.0
  • Geometry - Stack (Small)
    538.0
  • Geometry - Stack (Medium)
    575.0
  • Geometry - Stack (Large)
    613.0
  • Geometry - Stack (X-Large)
    650.0
  • Geometry - Total Seat Tube Length (X-Small)
    340.0
  • Geometry - Total Seat Tube Length (Small)
    380.0
  • Geometry - Total Seat Tube Length (Medium)
    450.0
  • Geometry - Total Seat Tube Length (Large)
    490.0
  • Geometry - Total Seat Tube Length (X-Large)
    530.0
  • Geometry - Headtube Length (X-Small)
    90.0
  • Geometry - Headtube Length (Small)
    120.0
  • Geometry - Headtube Length (Medium)
    160.0
  • Geometry - Headtube Length (Large)
    200.0
  • Geometry - Headtube Length (X-Large)
    240.0
  • Geometry - Headtube Angle (All Sizes)
    68.5
  • Geometry - Seat Tube Angle (All Sizes)
    73.0
  • Geometry - BB Drop (All Sizes)
    70.0
  • Geometry - Chainstay Length (All Sizes)
    440.0
  • Geometry - Fork Length Axle to Crown (All Sizes)
    402.0
  • Geometry - Fork Offset (All Sizes)
    50.0
  • Geometry - Wheelbase (X-Small)
    1056.0
  • Geometry - Wheelbase (Small)
    1078.0
  • Geometry - Wheelbase (Medium)
    1111.0
  • Geometry - Wheelbase (Large)
    1140.0
  • Geometry - Wheelbase (X-Large)
    1168.0
  • Geometry - Crank Arm Length (X-Small)
    165.0
  • Geometry - Crank Arm Length (Small)
    170.0
  • Geometry - Crank Arm Length (Medium)
    172.5
  • Geometry - Crank Arm Length (Large)
    172.5
  • Geometry - Crank Arm Length (X-Large)
    175.0
  • Geometry - Handlebar Width (All Sizes)
    700.0
  • Geometry - Recommended Rider Height (X-Small)
    142.0 - 150.0
  • Geometry - Recommended Rider Height (Small)
    152.0 - 163.0
  • Geometry - Recommended Rider Height (Medium)
    163.0 - 173.0
  • Geometry - Recommended Rider Height (Large)
    173.0 - 183.0
  • Geometry - Recommended Rider Height (X-Large)
    183.0 - 193.0
  • Geometry - Stem Length (X-Small)
    60.0
  • Geometry - Stem Length (Small)
    70.0
  • Geometry - Stem Length (Medium)
    70.0
  • Geometry - Stem Length (Large)
    80.0
  • Geometry - Stem Length (X-Large)
    90.0
