The Trax Mid-Drive delivers an amazing ride feel with a powerful 500W Bafang motor, 720Wh battery, and a comfortable, refined design for commuters.
The Trax Mid-Drive delivers an amazing ride feel with a powerful 500W Bafang motor, 720Wh battery, and a comfortable, refined design for commuters.
Troxus Usa

Troxus Usa Trax Mid-Drive Low-Step Small - White

$2,099.99 $3,299.99 36% off
Size Guide
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Troxus Usa Trax Mid-Drive Low-Step Small - White

Season:2025/2026

Brand:Troxus Usa

Code:10870100200

The Trax Mid-Drive delivers an amazing ride feel, with increased efficiency from the powerful 500W Bafang motor.

Coupled with the 15Ah / 720Wh battery, smooth rolling Kenda tires, light fenders and a stylish rear rack, the Trax Mid-Drive over delivers while remaining impressively light at 61 lbs. Packed with features, such as a throttle for easy-going rides, it is the perfect bike for dedicated commuters looking for a more refined feel.

The hand-crafted alloy frame features beautiful welds. This Class 3 28mph model includes the Troxus Premium Comfort Cockpit, an adjustable stem, swept-back handlebars, ergonomic grips, and a wide plush saddle for all-day riding comfort. The Shimano CUES E-bike specific 11-speed wide-range drivetrain provides smooth shifting and gearing for all needs.

Features:

  • 500W Bafang mid-drive motor
  • 720Wh (15Ah) UL-certified battery with Samsung cells
  • 28 mph max speed
  • Up to 60 miles per charge
  • Kenda KwickSeven 70cm x 5.6cm (27.5" x 2.2") tires with reflective stripes
  • Suntour Mobie 32 suspension fork with 75mm travel
Technical Information
  • Frame Size
    Small / 15.5", Medium / 17.5", Large / 19"
  • Wheel Size
    27.5"x2.2"
  • Seat Tube Length
    394mm, 445mm, 483mm
  • Seat Tube Angle
    73˚
  • Head Tube Length
    145mm
  • Head Tube Angle
    68˚
  • Effective Top Tube Length
    605mm, 615mm, 630mm
  • Bottom Bracket Height
    291mm
  • Bottom Bracket Drop
    60mm
  • Chainstay Length
    470mm
  • Fork Offset
    46mm
  • Wheelbase
    1158mm, 1168mm, 1183mm
  • Frame Reach
    415mm, 425mm, 440mm
  • Frame Stack
    622mm
  • Fork Travel
    75mm
  • Fork Height
    477mm
  • Max Speed
    Up to 20 mph on throttle / up to 28 mph on pedal assist
  • Range
    Up to 60 miles per charge
  • Weight Limit
    330 lbs
  • Net Weight
    61 lbs
  • Motor
    Bafang® 48V/500W mid-motor, 130Nm max. torque
  • Battery
    UL-2271 certified, internal, removable, lithium ion, 48V/15Ah (720Wh) with Samsung® cells

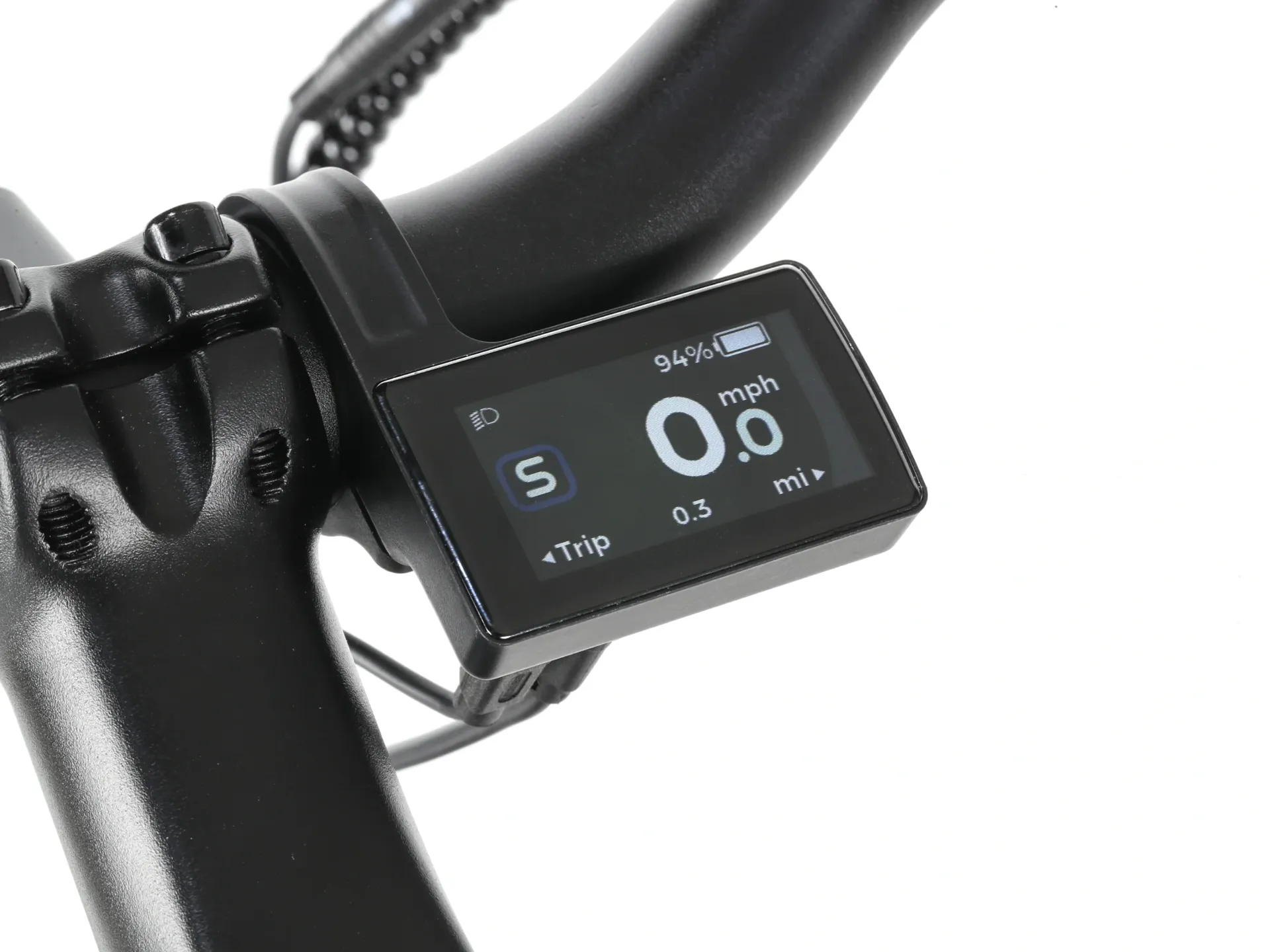

  • Display
    Bafang® color display, Bluetooth, w/ multi-function remote
  • Sensor
    Torque & cadence sensors
  • Pedal Assist
    5-level pedal assist (Eco, Tour, Sport, Sport +, Boost)
  • Charger
    3A / 100-240V input / 54.6V output
  • Lights
    Front light & rear light
  • Frame
    Aluminum
  • Fork
    Suntour® Mobie 32 suspension fork, 75mm travel, 15mm thru-axle
  • Chain
    Shimano® 11-speed
  • Crankset
    Aluminum, Bafang® 42T, w/ single alloy chainguard, square taper, 170mm
  • Rear Derailleur
    Shimano® CUES, GS, 11-speed
  • Cassette
    Shimano® 11-speed, 11-45T
  • Shifter
    Shimano® CUES 11-speed
  • Tires
    Kenda® 27.5"x2.2", w/ reflective stripes, puncture-resistant, E-50 rated

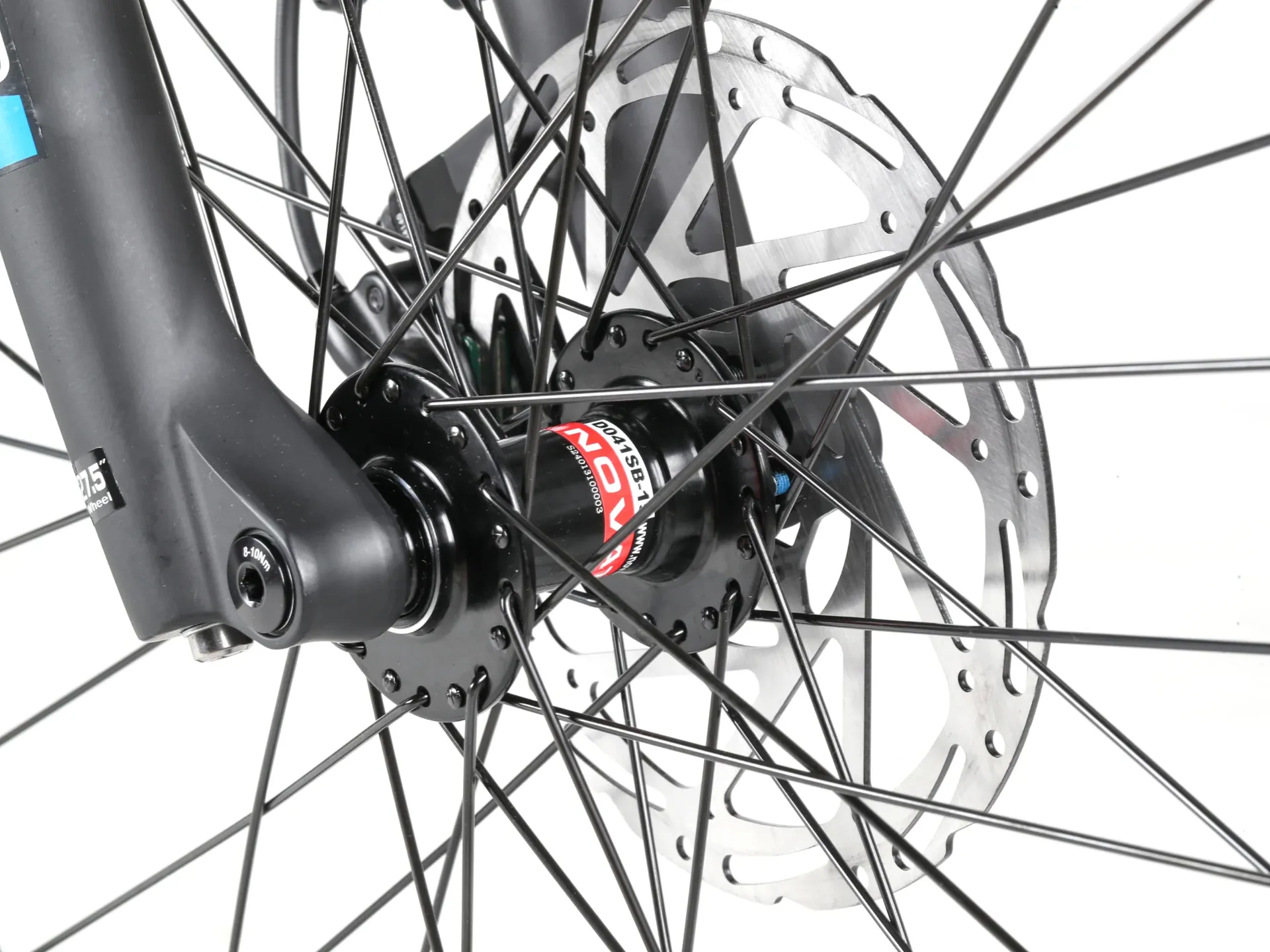

  • Front Hub
    Sealed bearing, 100mm, 15mm thru-axle, 36H
  • Rear Hub
    Sealed bearing, 135mm, 3/8" axle w/ nuts, cassette body, 36H
  • Rims
    Alloy, double wall, 20mm inner width, 36H
  • Spokes
    Stainless 13G
  • Brakes
    Tektro® hydraulic, w/ brake sensors
  • Rotors
    180mm / 180mm
  • Saddle
    Selle Royal
  • Seat Post
    Alloy, 30.9x350/400mm, adjustable
  • Seat Post Clamp
    Alloy, 35mm w/ quick release
  • Stem
    Zoom® alloy, 3D forged, adjustable, ext. 90mm
  • Handlebar
    Zoom® alloy, 31.8mmx660mm, 35˚ backsweep

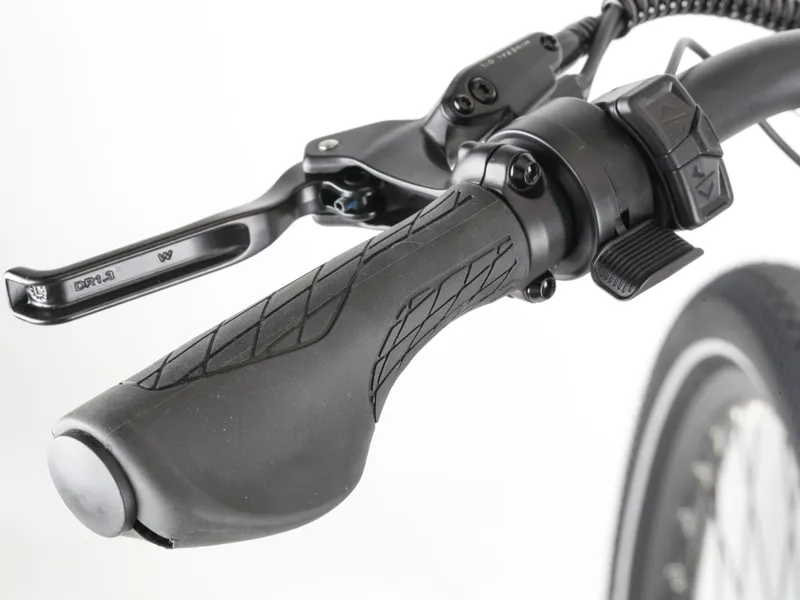

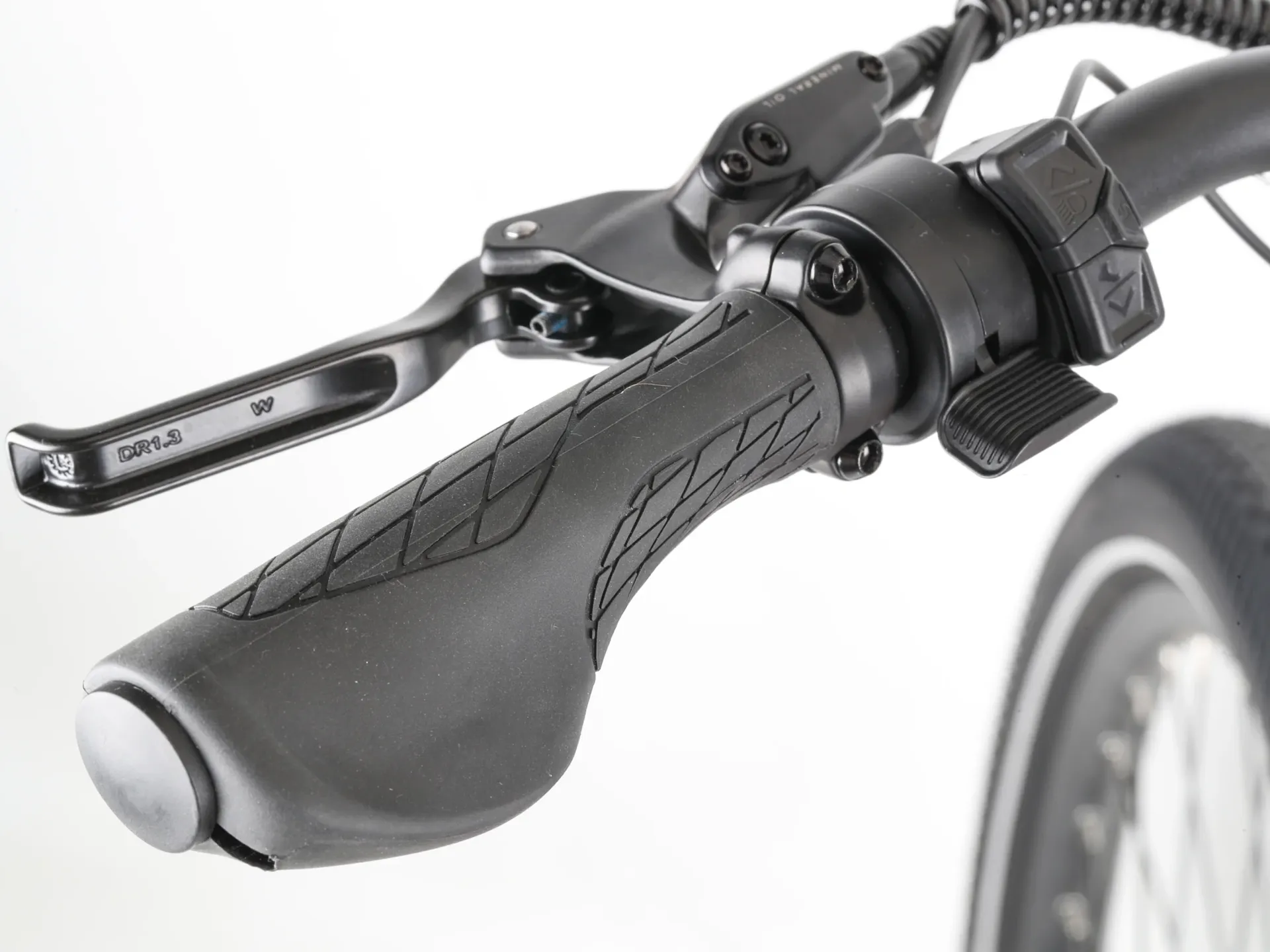

  • Grips
    Ergonomic comfort
  • Pedals
    Aluminum platform
  • Headset
    Threadless internal, tapered 1.5"
  • Rack
    Alloy rear model
  • Fender
    Lightweight / 27.5"
  • Kickstand
    Adjustable side kickstand
  • eBike Class
    Class 3
Sizing Information
Measurement Small (15.5") Medium (17.5") Large (19")
Model Low-Step Low-Step Mid-Step
Wheel Size 27.5" x 2.2" 27.5" x 2.2" 27.5" x 2.2"
A - Seat Tube Length 394 mm 445 mm 483 mm
B - Seat Tube Angle 73˚ 73˚ 73˚
C - Head Tube Length 145 mm 145 mm 145 mm
D - Head Tube Angle 68˚ 68˚ 68˚
E - Effective Top Tube Length 605 mm 615 mm 630 mm
F - Bottom Bracket Height 291 mm 291 mm 291 mm
G - Bottom Bracket Drop 60 mm 60 mm 60 mm
H - Chainstay Length 470 mm 470 mm 470 mm
I - Fork Offset 46 mm 46 mm 46 mm
J - Wheelbase 1158 mm 1168 mm 1183 mm
K - Frame Reach 415 mm 425 mm 440 mm
L - Frame Stack 622 mm 622 mm 622 mm
Fork Travel 75 mm 75 mm 75 mm
Fork Height 477 mm 477 mm 477 mm

Feature Specification
Max Speed Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
Range Up To 60 Miles Per Charge
Weight Limit 330 lbs
Net Weight 61 lbs

E-Systems

Component Specification
Motor Bafang 48V/500W Mid-Motor, 130Nm Max. Torque
Battery UL-2271 Certified, 48V/15Ah (720Wh) with Samsung Cells
Display Bafang Color Display, Bluetooth, w/ Multi-Function Remote
Sensor Torque & Cadence Sensors
Pedal Assist 5-Level Pedal Assist (Eco, Tour, Sport, Sport +, Boost)
Charger 3A / 100-240V Input / 54.6V Output
Lights Front Light & Rear Light

Components

Component Specification
Frame Aluminum Frame
Fork Suntour Mobie 32 Suspension Fork, 75mm Travel, 15mm Thru-Axle
Chain Shimano 11-Speed
Crankset Aluminum, Bafang 42T, w/ Single Alloy Chainguard, 170mm
Rear Derailleur Shimano CUES, GS, 11-Speed
Cassette Shimano 11-Speed, 11-45T
Shifter Shimano CUES 11-Speed
Tires KENDA 27.5" x 2.2", Reflective Stripes, Puncture-Resistant
Brakes Tektro Hydraulic, w/ Brake Sensors
Rotors 180mm / 180mm
Saddle Selle Royal
Seat Post Alloy, 30.9 x 350/400mm, Adjustable
Stem Zoom Alloy, Adjustable, Ext. 90mm
Handlebar Zoom Alloy, 31.8mm x 660mm, 35˚ Backsweep
