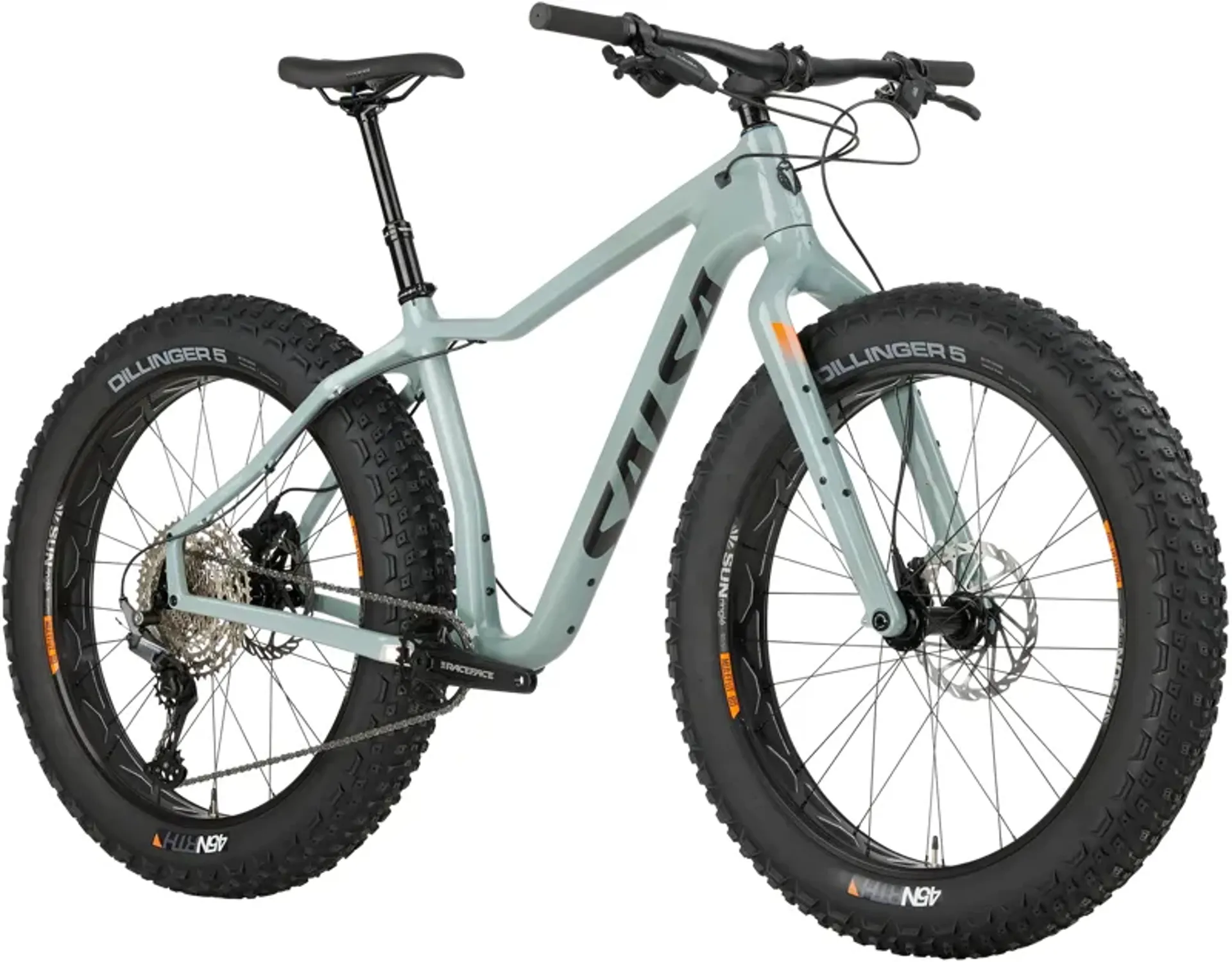

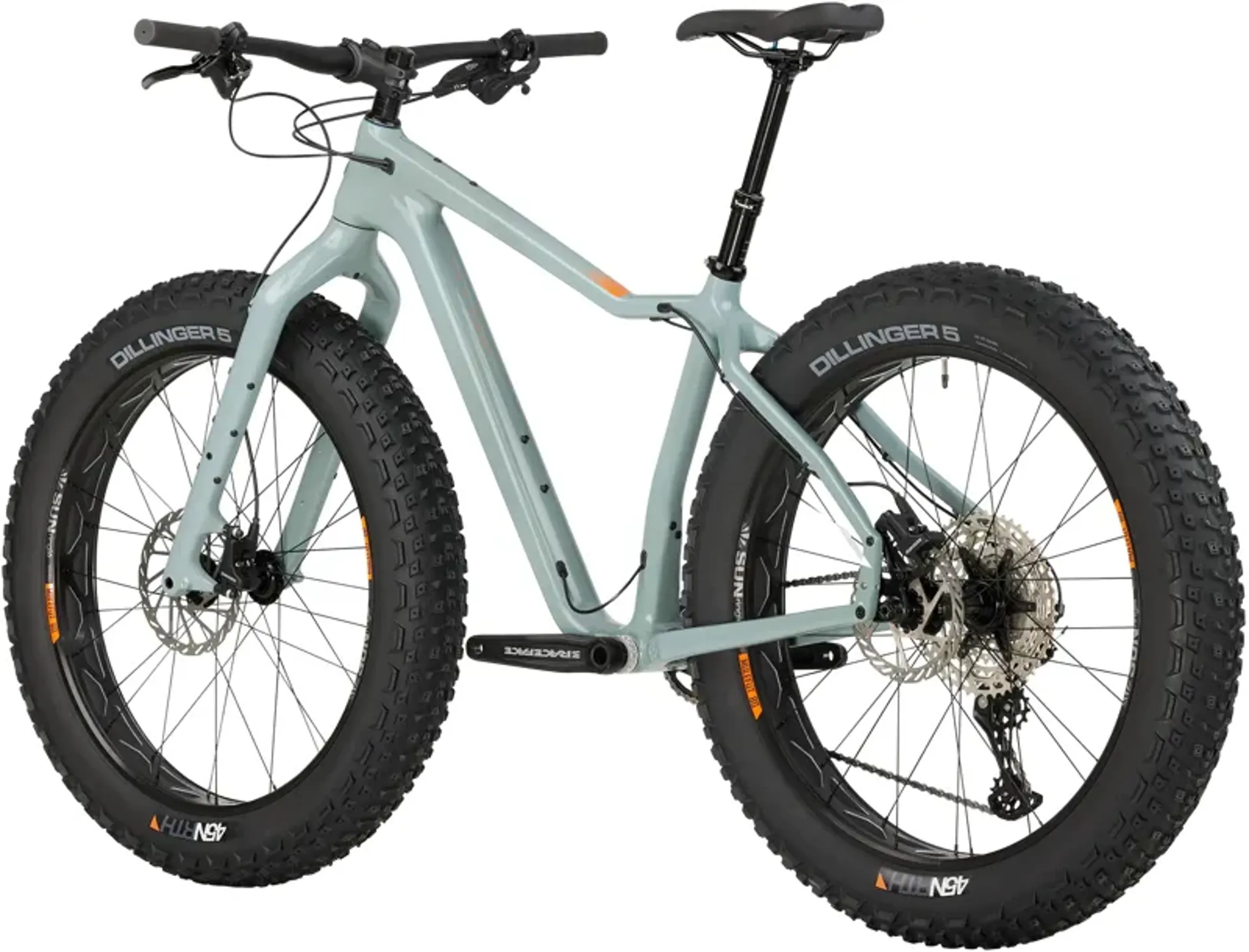

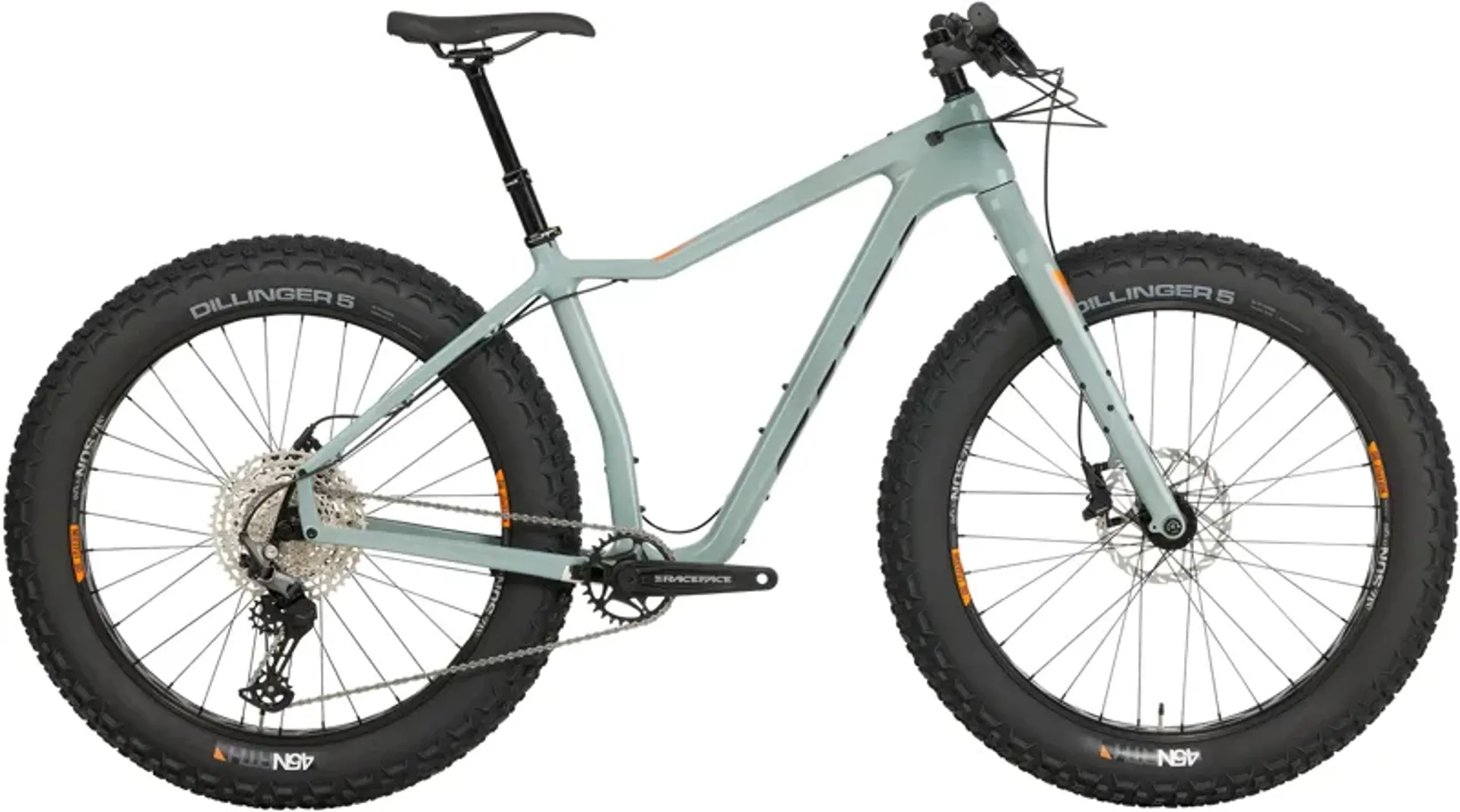

Frame
Heyday! Carbon
-
Color
Gray
-
Fork
Kingpin Carbon
-
Headset
Cane Creek 40 Series
-
Seatpost
TranzX YSP18JL, XS/SM 100 x 361 mm, MD-XL 130 x 425 mm
-
Stem
Salsa Guide Trail 35.0
-
Grips/bar tape
Salsa File Tread
-
Saddle
WTB Volt M Steel, 142 x 265 mm
-
Handlebar
Kalloy 35.0 mm, XS–SM: 760 mm, 0 mm rise; MD–XL: 780 mm, 15 mm rise
-
Rear derailleur
Shimano Deore M6100 SGS
-
Cassette
Shimano Deore M6100 10–51t, 12-speed
-
Chain
Shimano Deore M6100
-
Crankset
Race Face Ride, 30t
-
Shifter
Shimano Deore M6100
-
Brake levers
SRAM Level
-
Brake calipers
SRAM Level
-
Rotors
SRAM G2 rotors (6-bolt, 180 mm front, 160 mm rear)
-
Front wheel
Sun Ringle SRC 15 x 150 mm hub, Mulefüt SL 80 mm rim
-
Rear wheel
Sun Ringle SRC 12 x 197 mm hub, Mulefüt SL 80 mm rim
-
Front tire
45NRTH Dillinger 5, 26 x 4.6" 60 TPI, custom-studdable, tubeless-ready
-
Rear tire
45NRTH Dillinger 5, 26 x 4.6" 60 TPI, custom-studdable, tubeless-ready
-
Weight (Complete bike)
31 lb 9 oz for Medium
-
Design wheel/tire sizes
26 x 4.33" on up to 100mm rim
-
Alternate wheel/tire sizes
26 x 3.8–4.8"; 27.5 x 3.0–4.0"; 29 x 2.3–3.0"
-
Suspension fork length (travel)
511mm (100mm)
-
Rigid fork length
483–486mm
-
Fork offset
50–51mm
-
Rear spacing
197 x 12mm thru-axle
-
Rear axle size
12 x 229L, TP = 1.5, TL = 20
-
Rear brake (rotor)
51mm standard (160–180mm rotors). Must use 160mm rear IS adapter with +20mm post mount adapter for 180mm rotor
-
Front brake (rotor)
74mm post mount (160–180mm)
-
Headset - Upper
IS41
-
Headset - Lower
IS52
-
Front spacing
150 x 15mm thru-axle
-
Front axle size
15 x 198L, TP = 1.5, TL = 9
-
Crown race
Ø40mm
-
Stem clamp
Ø28.6mm
-
Seatpost
31.6mm
-
Dropper post compatible
Yes, internal
-
Seatpost clamp
35.0mm
-
Front derailleur clamp
High direct-mount (54mm offset) via removable bracket (included)
-
Front derailleur type
Compact 2x top-pull only
-
Derailluer hanger
Fixed Position - ND: FS2357, D: FS2355; / Adjustable - ND: FS2353, D: FS2356
-
Bottom bracket
100mm, threaded
-
Crankset (Max ring)
75mm chainline fat bike cranks only 2x: 36/24t max; 1x: 32t max
-
Accessory mounts
2 per frame
-
Bottle mounts
2 per frame
-
Fork mounts
2 Three-Pack bosses per fork
-
Geometry (Effective Top Tube)
X-Small: 573.0, Small: 594.0, Medium: 615.0, Large: 636.0, X-Large: 657.0
-
Geometry (Stand Over)
X-Small: 656.5, Small: 678.0, Medium: 722.8, Large: 765.3, X-Large: 799.8
-
Geometry (Reach)
X-Small: 391.8, Small: 409.9, Medium: 428.1, Large: 446.2, X-Large: 464.4
-
Geometry (Stack)
X-Small: 592.7, Small: 602.1, Medium: 611.4, Large: 620.7, X-Large: 630.1
-
Geometry (Total Seat Tube Length)
X-Small: 406.0, Small: 406.0, Medium: 457.0, Large: 508.0, X-Large: 558.0
-
Geometry (Headtube Length)
X-Small: 103.0, Small: 113.0, Medium: 123.0, Large: 133.0, X-Large: 143.0
-
Geometry (Headtube Angle)
All sizes: 69.0
-
Geometry (Seat Tube Angle)
All sizes: 73.0
-
Geometry (BB Drop)
All sizes: 63.0
-
Geometry (Chainstay Length)
All sizes: 432.0 - 449.0
-
Geometry (Fork Length Axle to Crown)
All sizes: 483.0
-
Geometry (Fork Offset)
All sizes: 51.0
-
Geometry (Wheelbase)
X-Small: 1077.1, Small: 1098.9, Medium: 1120.6, Large: 1142.3, X-Large: 1164.1
-
Geometry (Crank Arm Length)
X-Small: 165.0, Small: 170.0, Medium: 170.0, Large: 175.0, X-Large: 175.0
-
Geometry (Handlebar Width)
X-Small: 760.0, Small: 760.0, Medium: 780.0, Large: 780.0, X-Large: 780.0
-
Geometry (Recommended Rider Height)
X-Small: 157.0 - 168.0, Small: 165.0 - 175.0, Medium: 173.0 - 183.0, Large: 180.0 - 191.0, X-Large: 188.0
-
Geometry (Stem Length)
X-Small: 40.0, Small: 50.0, Medium: 60.0, Large: 70.0, X-Large: 70.0
-
Geometry Measurement Basis
A Salsa Kingpin fork which is equivalent to a 100mm RockShox Bluto fork at 25% sag; A 26 x 4.8" tire measuring 759mm in diameter; Standover is measured from ground to top of toptube at forward portion of the kink
