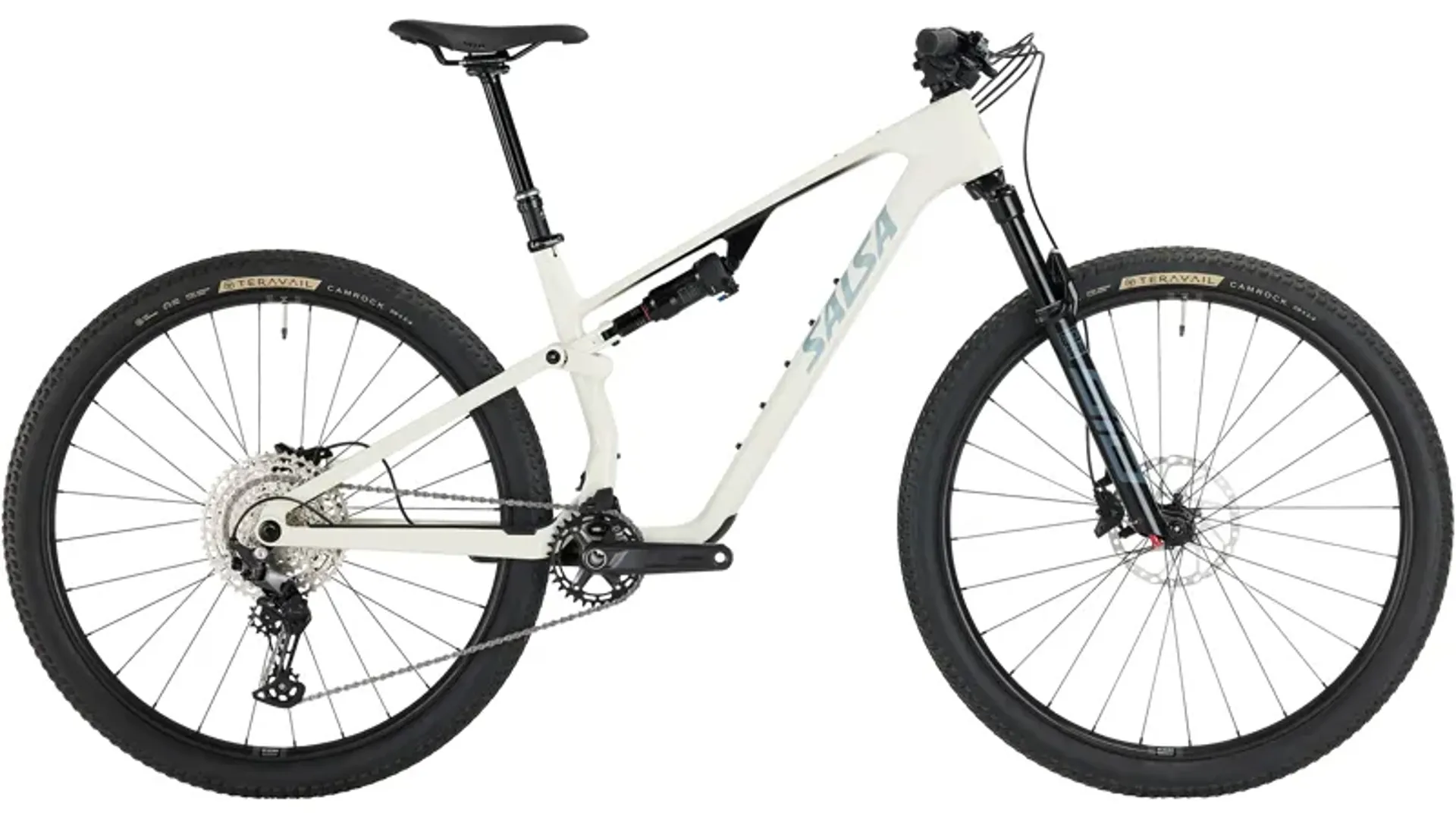

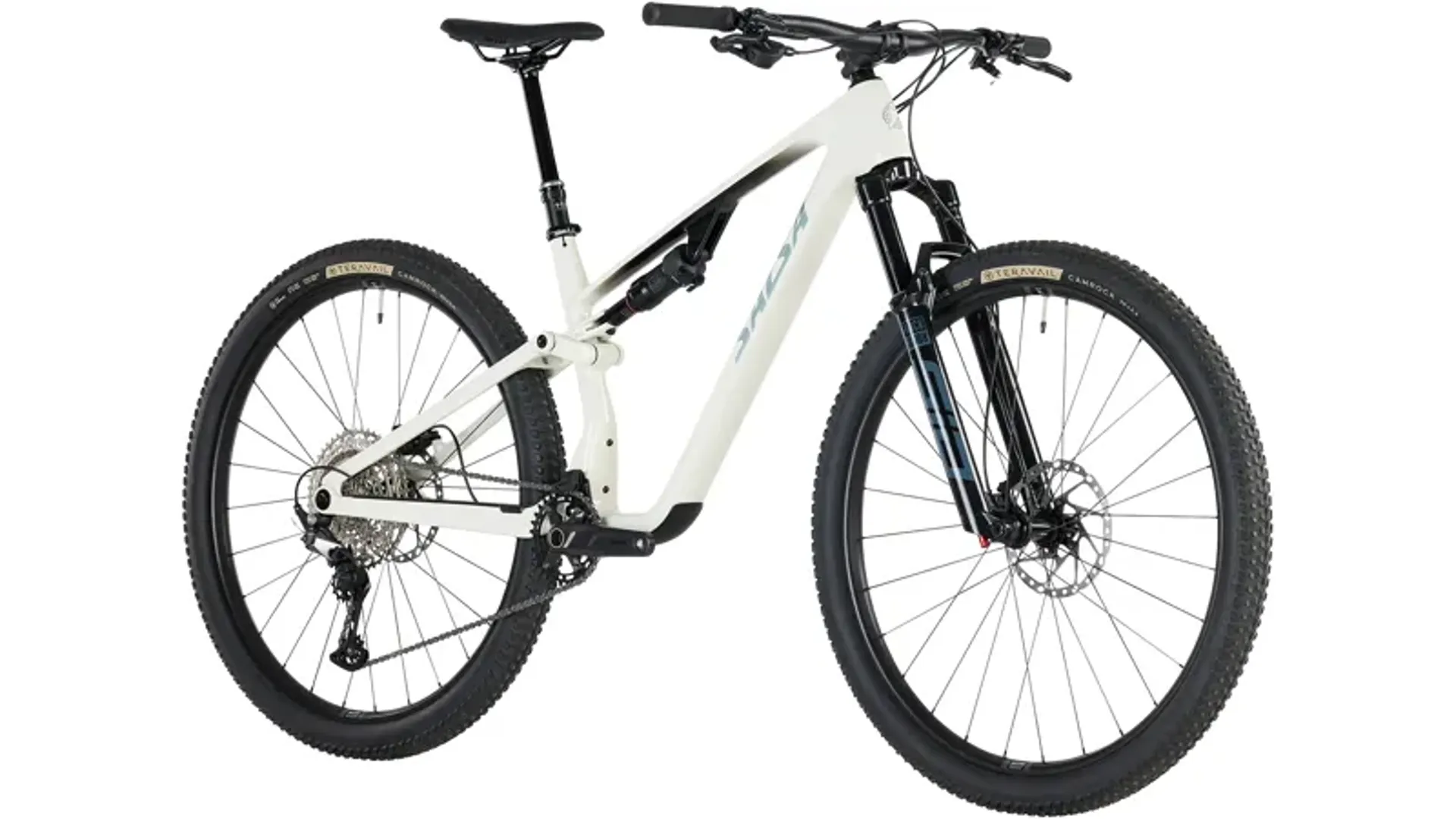

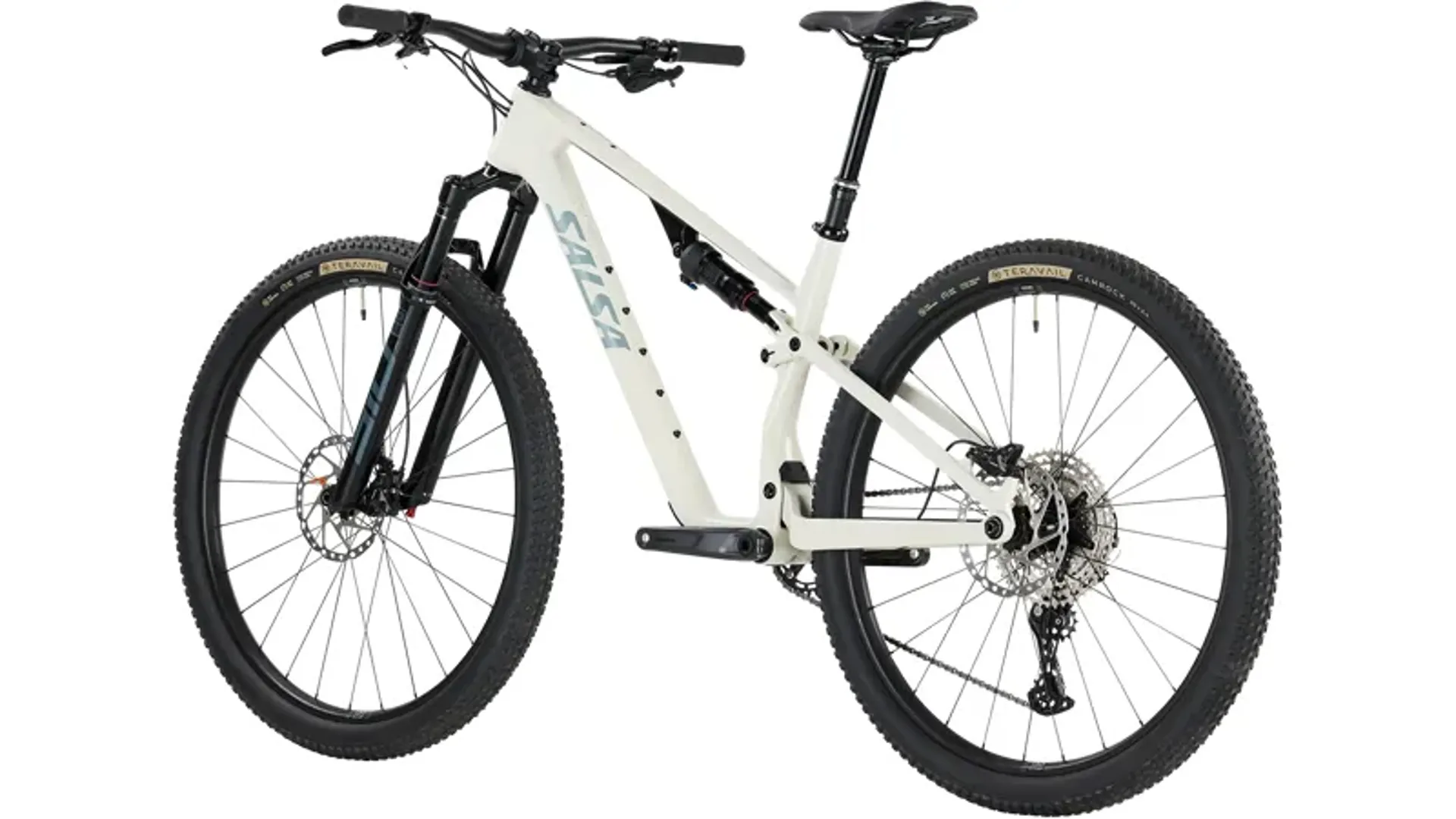

Frame
Spearfish Carbon
-
Color
Bone White
-
Suspension fork
RockShox SID, 120mm
-
Rear shock
RockShox Deluxe Select+
-
Headset
FSA Orbit 1.5E ZS NO.57E
-
Seatpost
TranzX YSI05 RAD+ Dropper Post w/ Shimano SL-MT500 I-Spec EV Lever, XS: 125mm travel; SM–MD: 150mm travel; LG–XL: 170mm travel
-
Stem
Salsa 35.0 Guide Trail, 50mm
-
Grips/bar tape
Salsa File Tread Lock-on
-
Saddle
WTB Silverado, Medium, Cromoly, DNAx
-
Handlebar
Alloy riser
-
Rear derailleur
Shimano Deore M6100-SGS
-
Cassette
Shimano Deore M6100, 10–51t, 12-speed
-
Chain
Shimano Deore M6100, HYPERGLIDE+
-
Crankset
Shimano Deore MT512, 32t; MRP 1x SL TR2 28-34t Direct Mount Guide
-
Shifter
Shimano Deore M6100, I-Spec EV
-
Brake levers
Shimano Deore M4100
-
Brake calipers
Shimano Deore MT-M410
-
Bottom bracket
Shimano MT500 Press-Fit
-
Rotors
Shimano Deore RT64 (Center Lock, 180mm front and rear)
-
Front tire
Teravail Camrock 29x2.4", Light Trail casing, WTB TCS Sealant included
-
Rear tire
Teravail Camrock 29x2.4", Light Trail casing, WTB TCS Sealant included
-
Front hub
Shimano TC500-15-B 15x110mm
-
Rear hub
Shimano TC500-MS-B 12x148mm
-
Spoke
Butted stainless steel, black
-
Rim
WTB KOM Team i30 TCS, 28h
-
Complete bike weight
29lb 13oz
-
Design wheel/tire sizes
29 x 2.0–2.4"
-
Max tire outer diameter
Frame: 29 x 2.4" Fork: Max. tire diameter: 758mm, Max. tire width 66mm
-
Frame construction
Carbon
-
Suspension fork length (travel)
130mm
-
Fork offset
44mm
-
Axle to crown
541mm
-
Rear spacing
12 x 148mm
-
Rear axle size
12 x 188mm, TP=1.0, TL=13mm
-
Rear brake (rotor)
74mm post mount (180–200mm)
-
Front brake (rotor)
74mm post mount (180–200mm)
-
Headtube - upper
ZS44/28.6
-
Headtube - lower
ZS56/40
-
Rear shock size
190 x 45mmForward Shock Mount: Ø8 x 20mmRearward Shock Mount: Standard Ø15MM, no bushing
-
Front spacing
15 x 110mm
-
Front axle size
Maxle Stealth: 15 x 158mm, TP=M15x1.5, TL=9
-
Steerer tube
1.125–1.5" tapered
-
Crown race
59mm
-
Seatpost diameter
30.9mm
-
Dropper post compatible
Yes (internal)
-
Seatpost clamp
35.4mm
-
Max post insertion
SM: 215mm; MD: 240mm; LG: 265mm; XL: 290mm
-
Derailluer hanger
SRAM UDH (w/ Ø30mm washer)
-
Bottom bracket
BB92 press-fit
-
Crankset (max ring)
34t, 55mm Chainline
-
Accessory mounts
XS–SM: downtube accessory mount; MD–XL: Three-Pack downtube mount; Top tube accessory mounts on all sizes
-
Bottle mounts
XS–SM: two full size bottles; MD–XL: three bottles
-
Geometry measurement notes
Measurements based on: an unsprung bike (no sag); a 29 x 2.4" tire measuring 746mm in diameter; Standover is measured from vertically from ground to top of top tube 50mm forward of bottom bracket center; Note: Where two measurements are listed, the first number is with Flip Chip in default High position; the second number is with Flip Chip in Low position
-
Geometry - X-Small
Effective Top Tube: 567.8-568.6; Stand Over: 719.1-716.4; Reach: 435.0-431.4; Stack: 589.3-591.9; Total Seat Tube Length: 380.0; Headtube Length: 95.0; Headtube Angle: 66.3-66.0; Seat Tube Angle: 77.3-77.0; BB Drop: 31.0-35.4; BB Height: 342.0-337.6; Chainstay Length: 430.0-431.2; Fork Length Axle to Crown: 530.0; Fork Offset: 44.0; Wheelbase: 1157.0-1157.7; Crank Arm Length: 165.0; Recommended Rider Height: 146.0 - 159.0; Stem Length: 50.0
-
Geometry - Small
Effective Top Tube: 584.9-585.7; Stand Over: 719.2-716.3; Reach: 450.0-446.5; Stack: 598.4-601.1; Total Seat Tube Length: 405.0; Headtube Length: 105.0; Headtube Angle: 66.3-66.0; Seat Tube Angle: 77.3-77.0; BB Drop: 31.0-35.5; BB Height: 342.0-337.5; Chainstay Length: 430.0-431.2; Fork Length Axle to Crown: 530.0; Fork Offset: 44.0; Wheelbase: 1176.1-1176.7; Crank Arm Length: 165.0; Recommended Rider Height: 157.0 - 170.0; Stem Length: 50.0
-
Geometry - Medium
Effective Top Tube: 606.9-607.7; Stand Over: 719.2-716.3; Reach: 470.0-466.5; Stack: 607.6-610.3; Total Seat Tube Length: 430.0; Headtube Length: 115.0; Headtube Angle: 66.3-66.0; Seat Tube Angle: 77.3-77.0; BB Drop: 31.0-35.5; BB Height: 342.0-337.5; Chainstay Length: 430.0-431.2; Fork Length Axle to Crown: 530.0; Fork Offset: 44.0; Wheelbase: 1200.0-1200.7; Crank Arm Length: 165.0; Recommended Rider Height: 168.0 - 180.0; Stem Length: 50.0
-
Geometry - Large
Effective Top Tube: 629.0-629.8; Stand Over: 719.3-716.2; Reach: 490.0-486.4; Stack: 616.7-619.6; Total Seat Tube Length: 455.0; Headtube Length: 125.0; Headtube Angle: 66.3-66.0; Seat Tube Angle: 77.3-77.0; BB Drop: 31.0-35.6; BB Height: 342.0-337.4; Chainstay Length: 430.0-431.2; Fork Length Axle to Crown: 530.0; Fork Offset: 44.0; Wheelbase: 1224.1-1224.7; Crank Arm Length: 170.0; Recommended Rider Height: 178.0 - 191.0; Stem Length: 50.0
-
Geometry - X-Large
Effective Top Tube: 651.1-651.9; Stand Over: 719.3-716.2; Reach: 510.0-506.5; Stack: 625.9-628.8; Total Seat Tube Length: 480.0; Headtube Length: 130.0; Headtube Angle: 66.3-66.0; Seat Tube Angle: 77.3-77.0; BB Drop: 31.0-35.6; BB Height: 342.0-337.4; Chainstay Length: 430.0-431.2; Fork Length Axle to Crown: 530.0; Fork Offset: 44.0; Wheelbase: 1248.1-1248.7; Crank Arm Length: 170.0; Recommended Rider Height: 188.0; Stem Length: 50.0
