Confluence Flat Bar Essa 8 is Salsa's light gravel ebike that makes it easier to squeeze more adventures into each day.
Confluence Flat Bar Essa 8 is Salsa's light gravel ebike that makes it easier to squeeze more adventures into each day.
Salsa

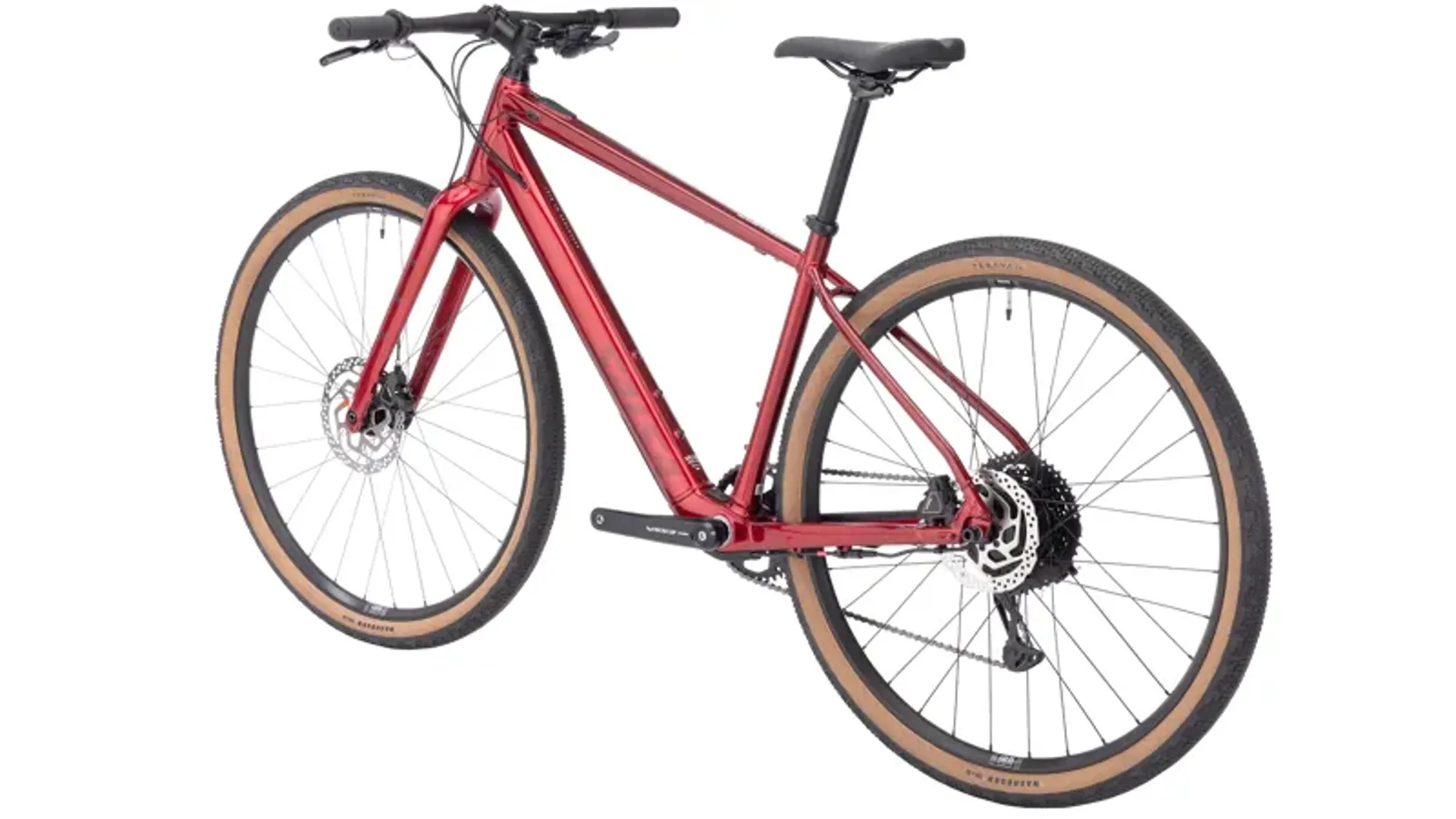

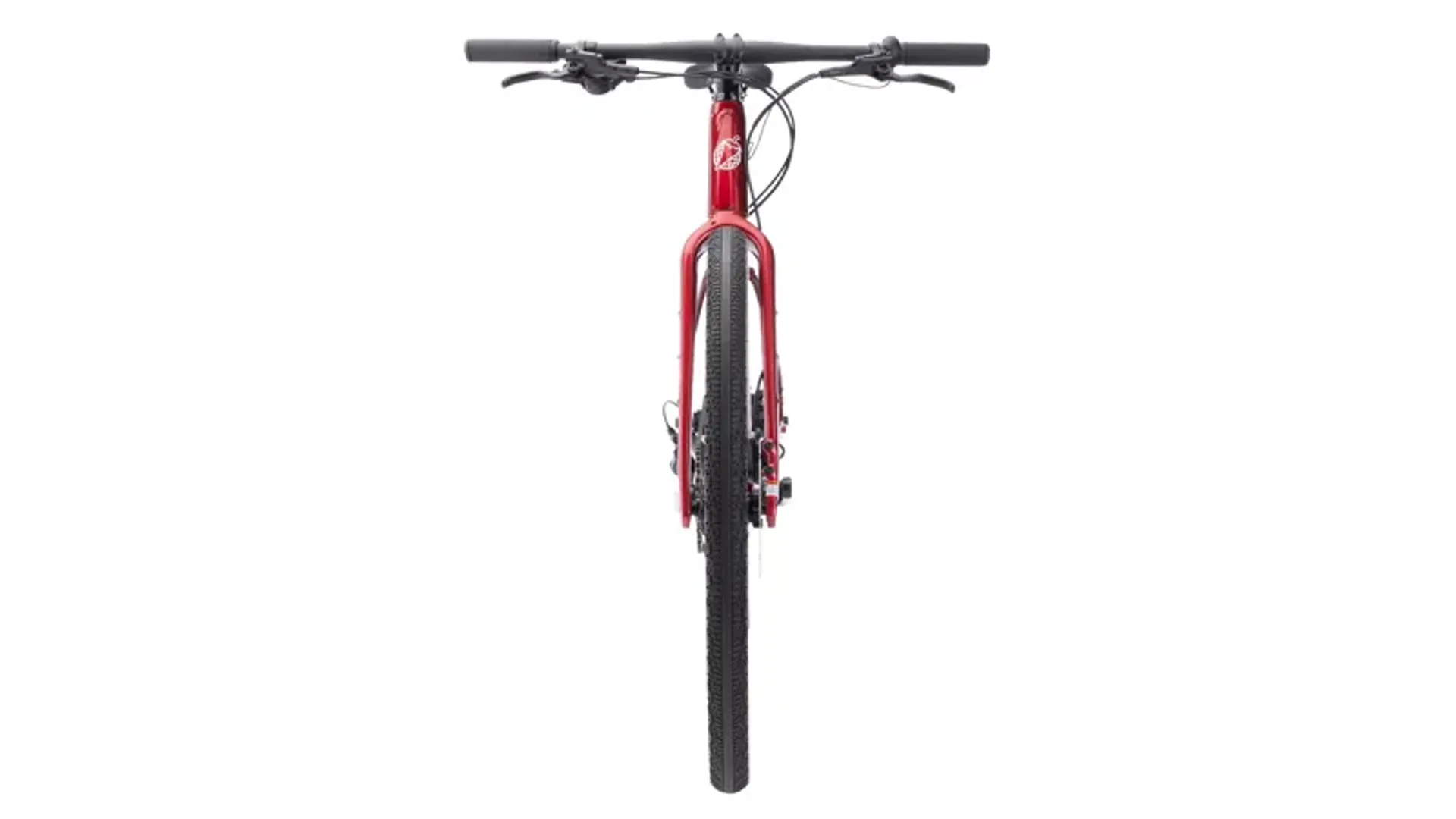

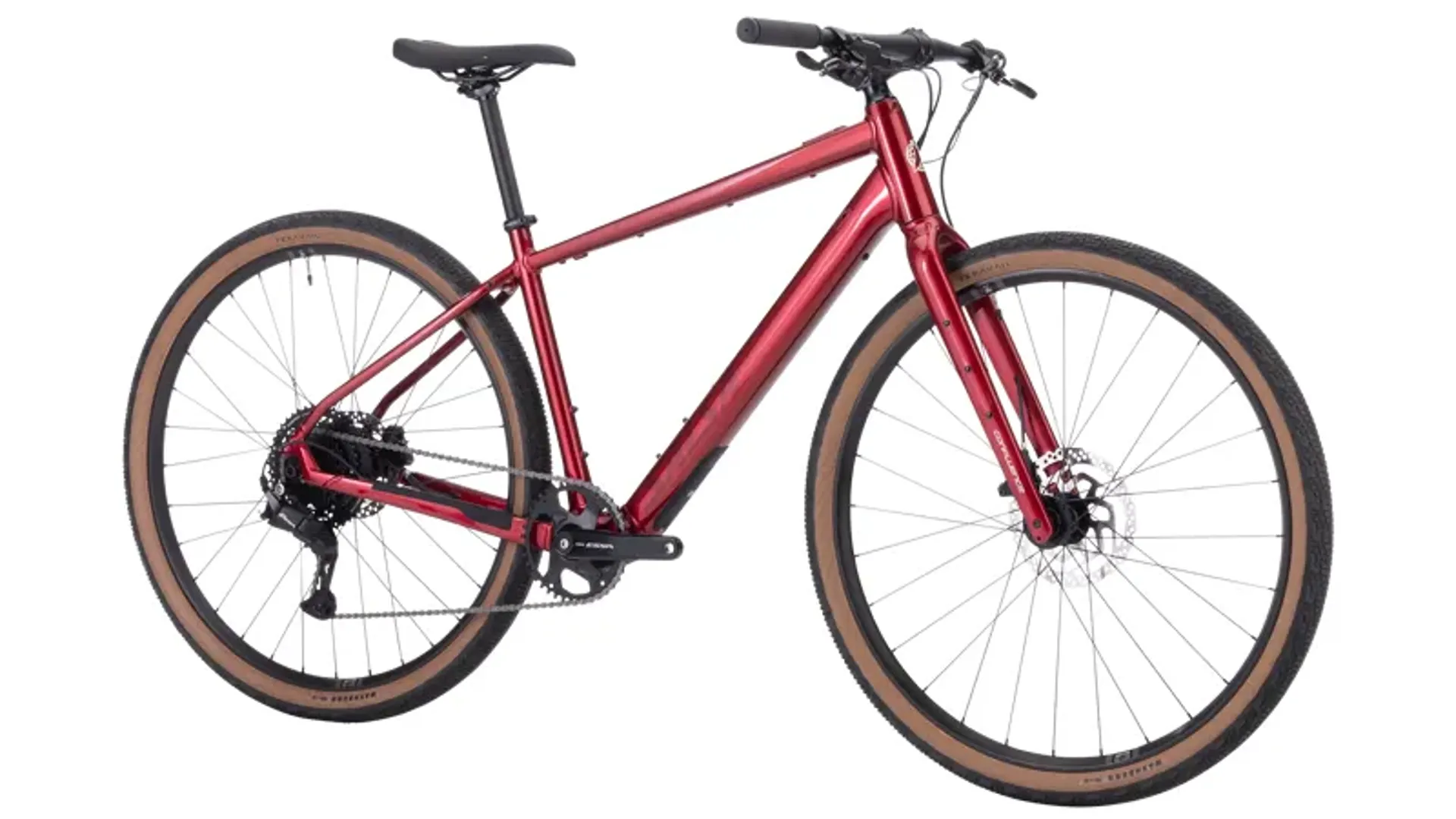

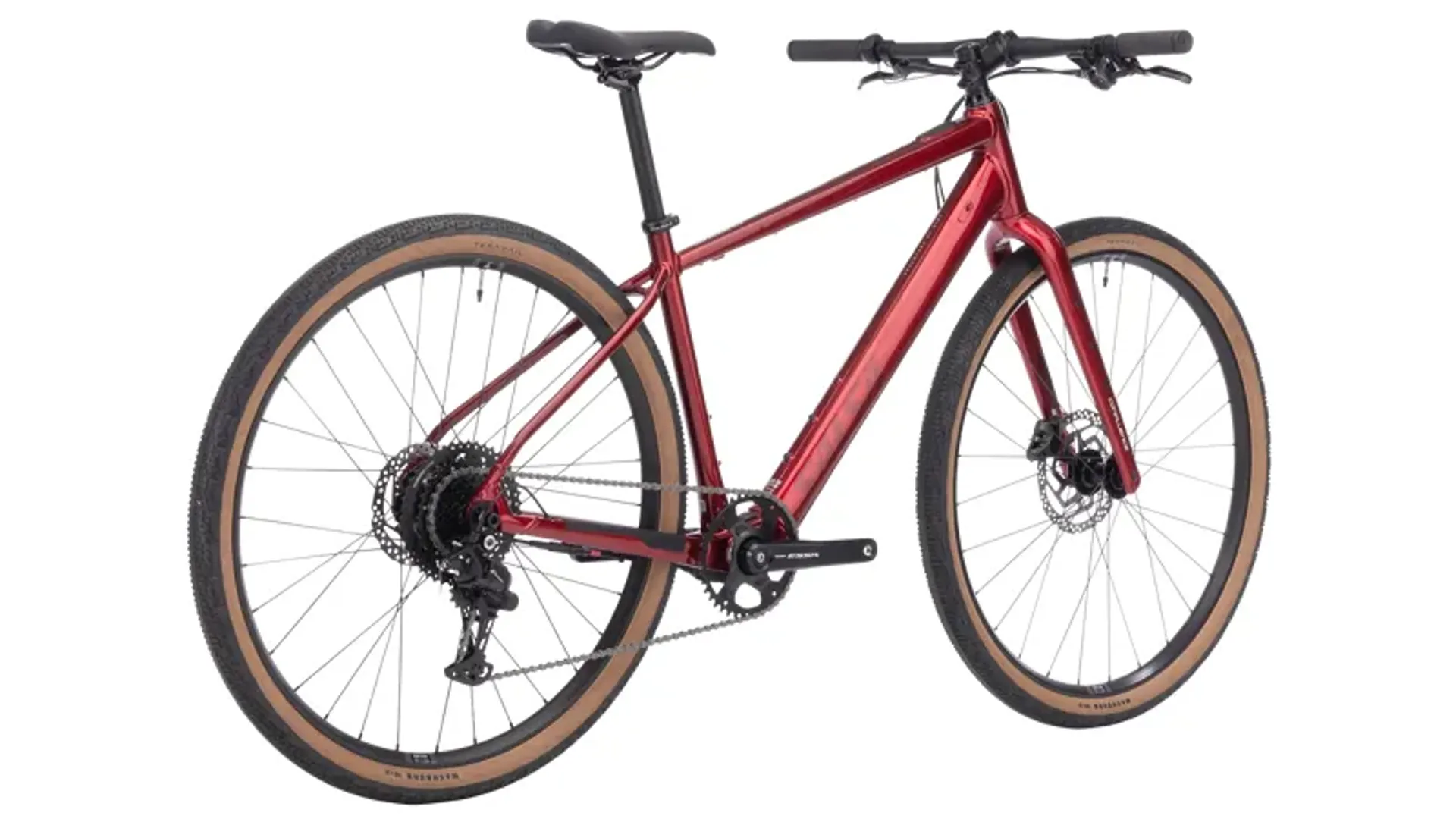

Salsa Confluence Flat Bar ESSA 8 Aluminum eBike 700c in Canyon Red

$2,899.99 $2,999.00 3% off
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

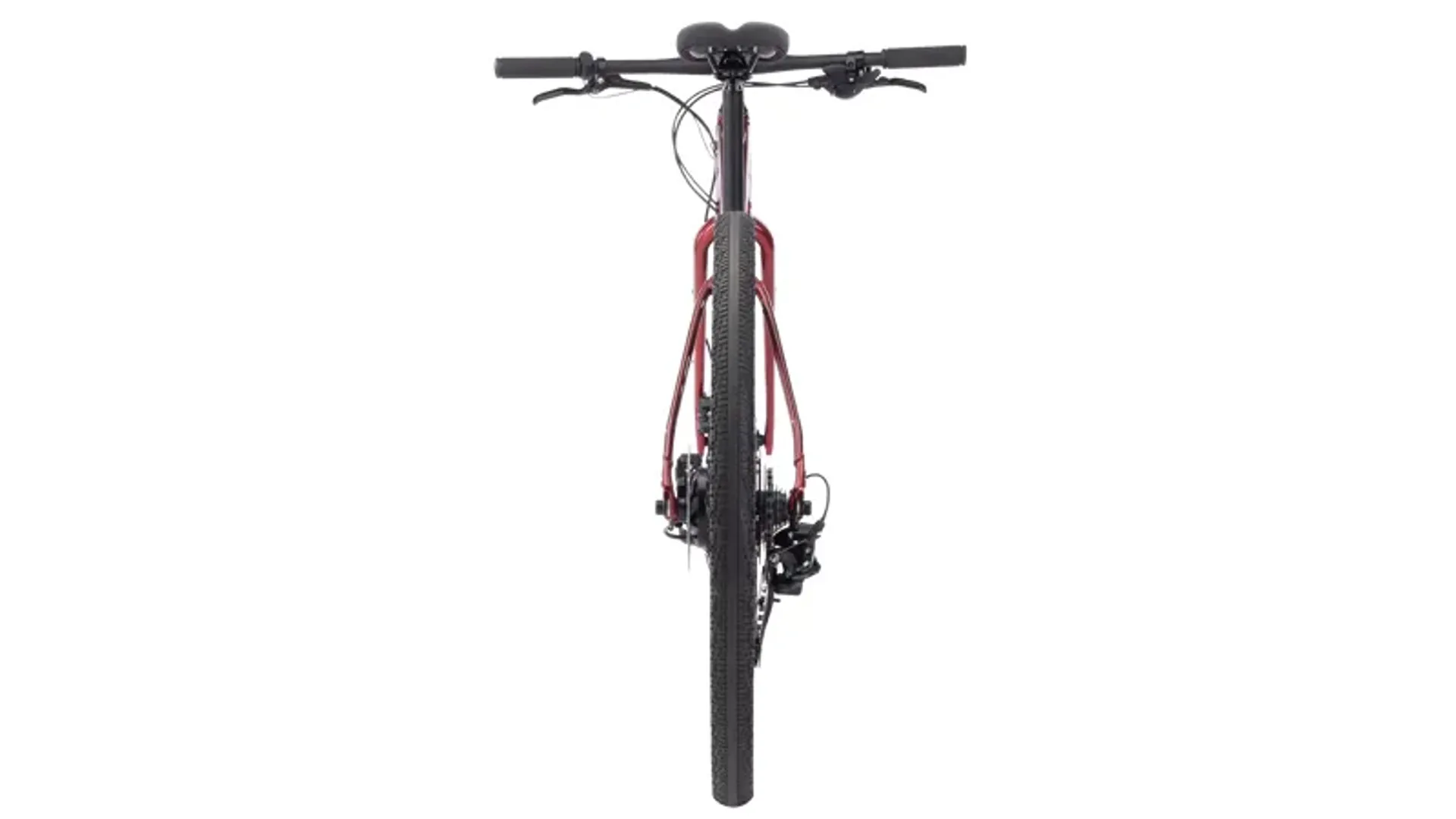

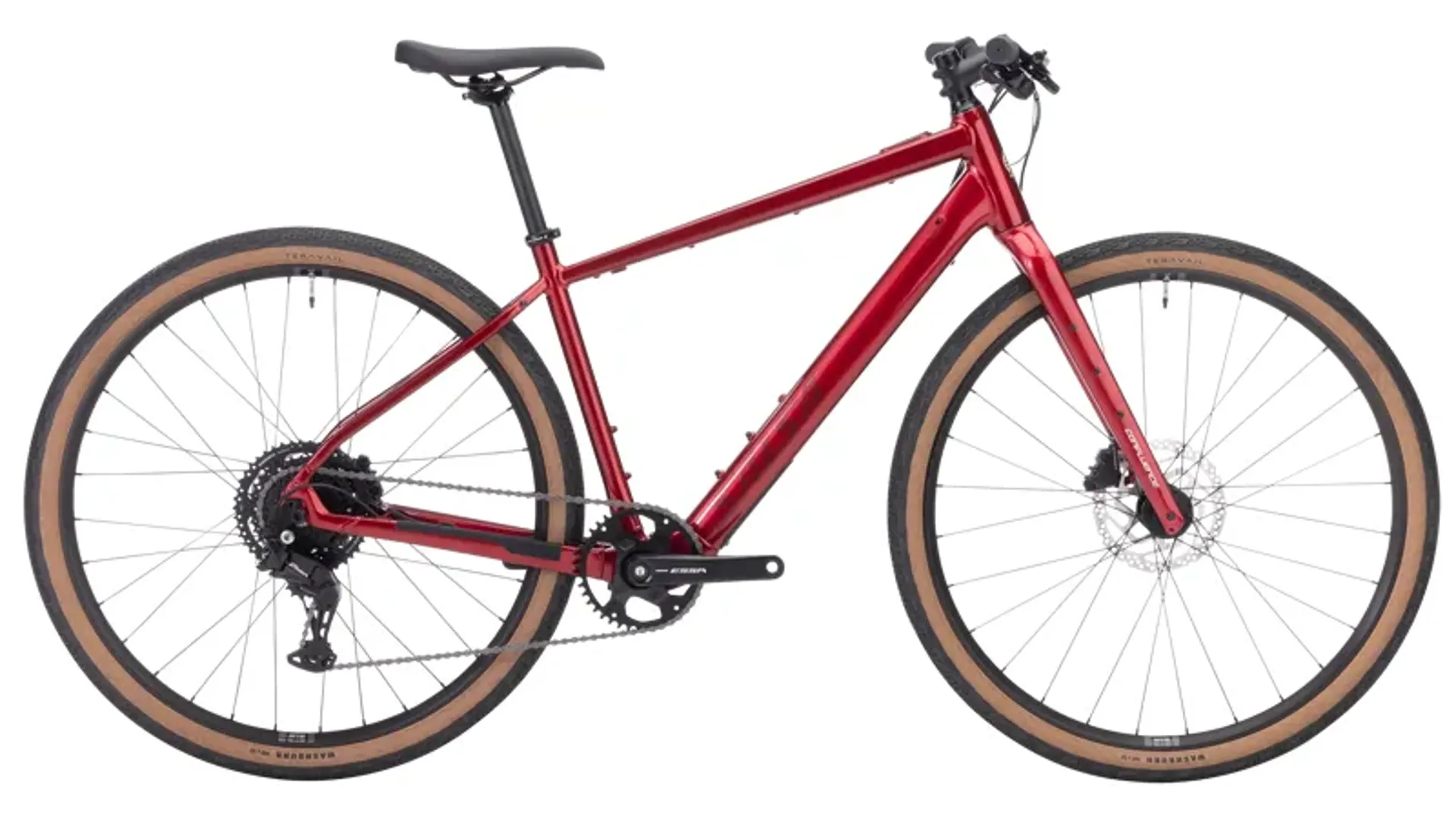

Salsa Confluence Flat Bar ESSA 8 Aluminum eBike 700c in Canyon Red

Season:2025

Brand:Salsa

Code:H4001CanyonRED

Confluence Flat Bar Essa 8 is Salsa's light gravel ebike that makes it easier to squeeze more adventures into each day.

Ride to the ride, tack on those bonus miles, explore all the spur roads, or bring your mid-ride coffee setup without worrying about weight. MAHLE’s X30 hub-drive motor is lightweight and diskreet, with 45Nm of torque on tap for a confidence boost everywhere you ride. Salsa's comfortable, stable geometry makes those extra miles and higher speeds feel natural. Three-Pack mounts, rack mounts, and fender mounts make Confluence a versatile gravel ebike for adventure; suspension fork and dropper post compatibility plus 700c x 50mm tire clearance expands the capability to cover the roughest roads out there.

The Shimano Essa 1 x 8 drivetrain keeps things simple and dependable, just what you want when you’re focused on riding farther. Confluence’s aluminum alloy tubing is developed specifically for the Confluence frame and is heat-treated to T6 alloy standards for extra strength and durability. The Confluence 2.0 Carbon Fiber Fork is lightweight, comfortable, cargo-ready, and gives you 50mm of tire clearance to play with. This Class 1 rear hub-drive motor delivers electric assist up to 32kph (20mph) and has a smoother top-end than the previous-generation X35+. It’s also one of the lightest ebike systems in-market at 1.9kg, and its low-profile appearance means that Confluence looks like a regular gravel bike.

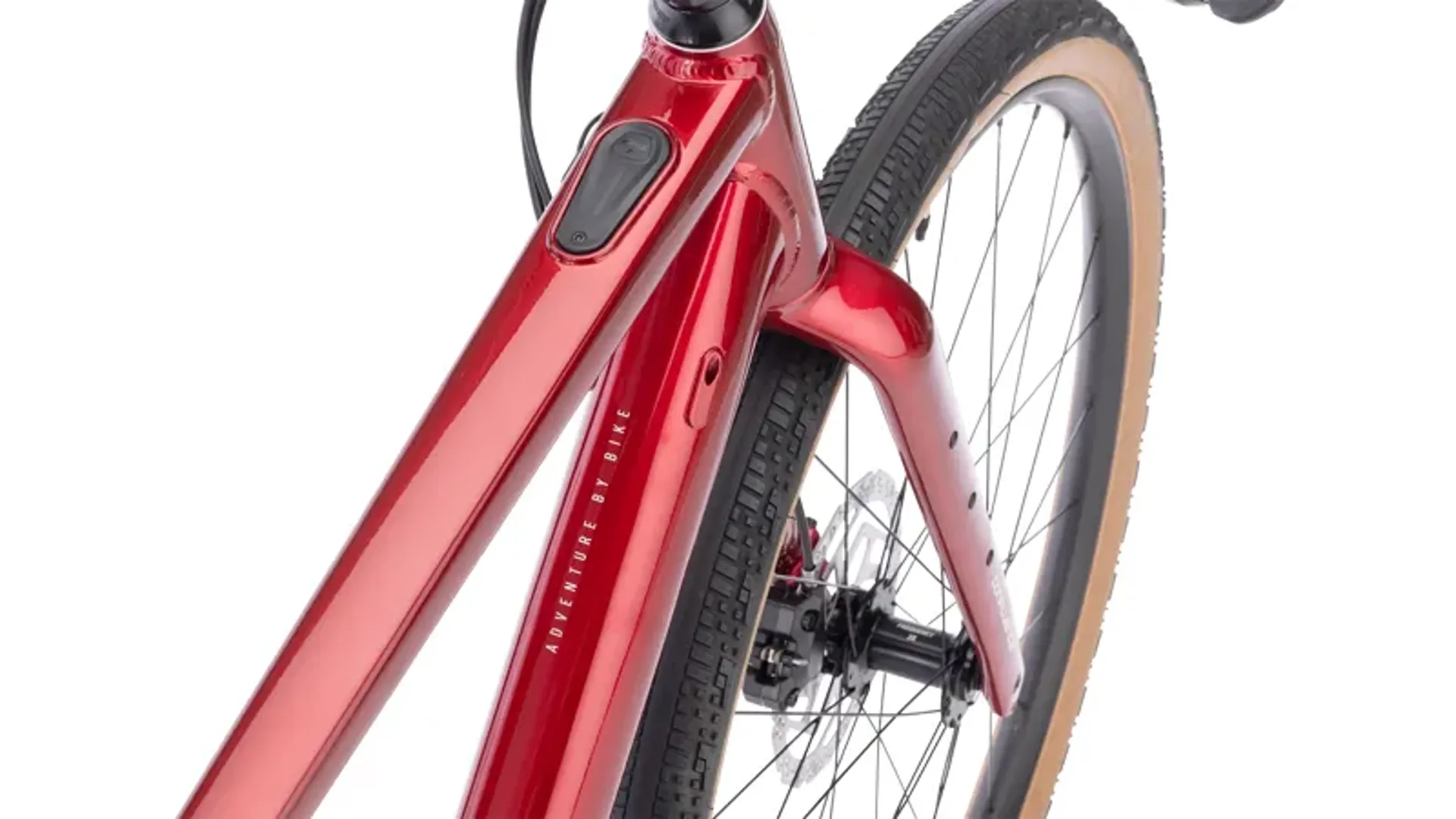

MAHLE’s 237Wh iX2 battery is nestled inside the downtube for added security and stiffness. This battery size hits the ideal combination of efficiency and weight for what Salsa designed Confluence to do. The system offers ANT+ connectivity for third-party devices and Bluetooth for app integration. MAHLE’s MySmartBike app allows for customisation, metrics, mapping, and more.

Features:

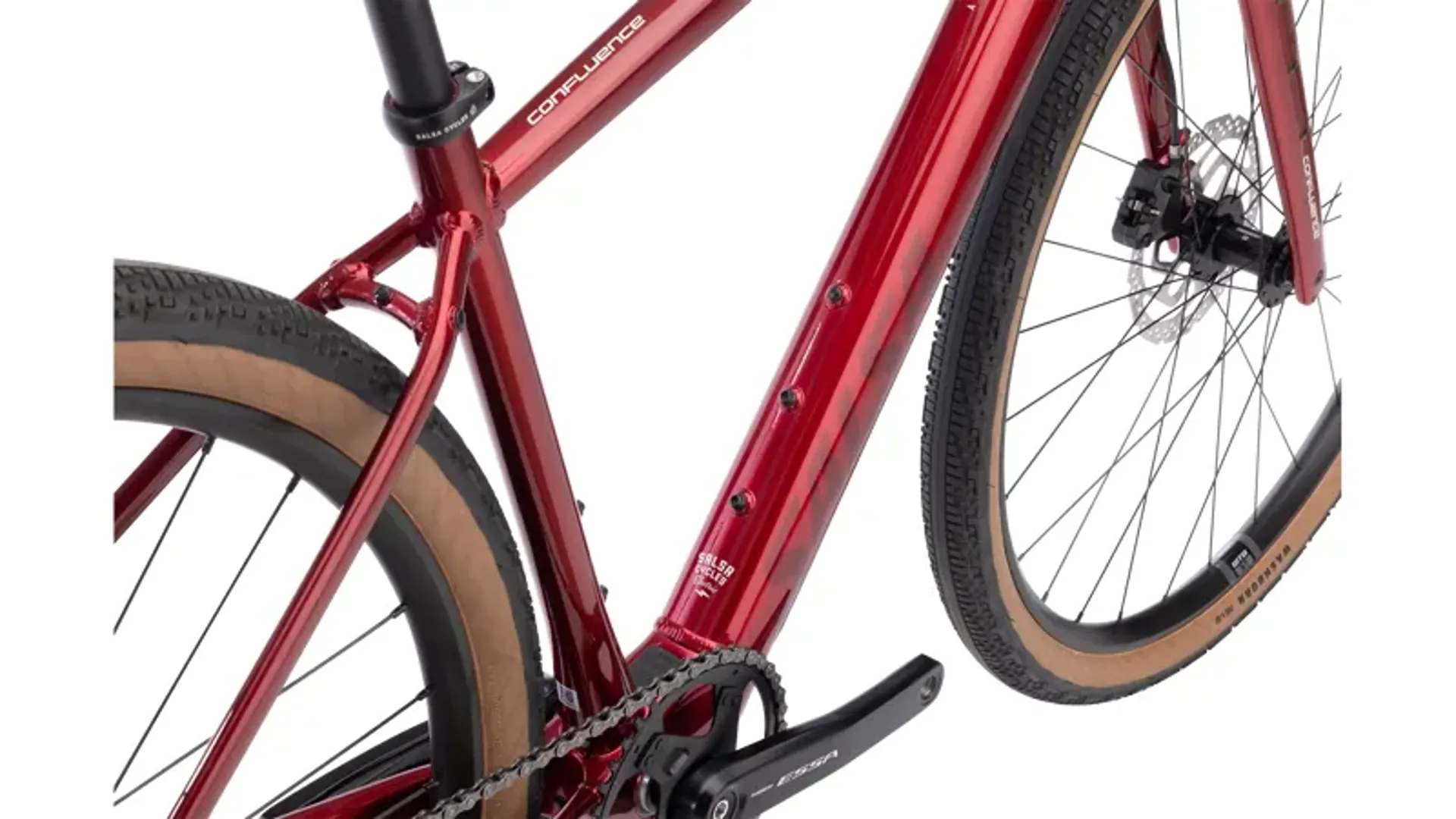

  • 6061-T6 alloy frame with Confluence 2.0 carbon fork
  • Suspension corrected for 40mm gravel suspension forks

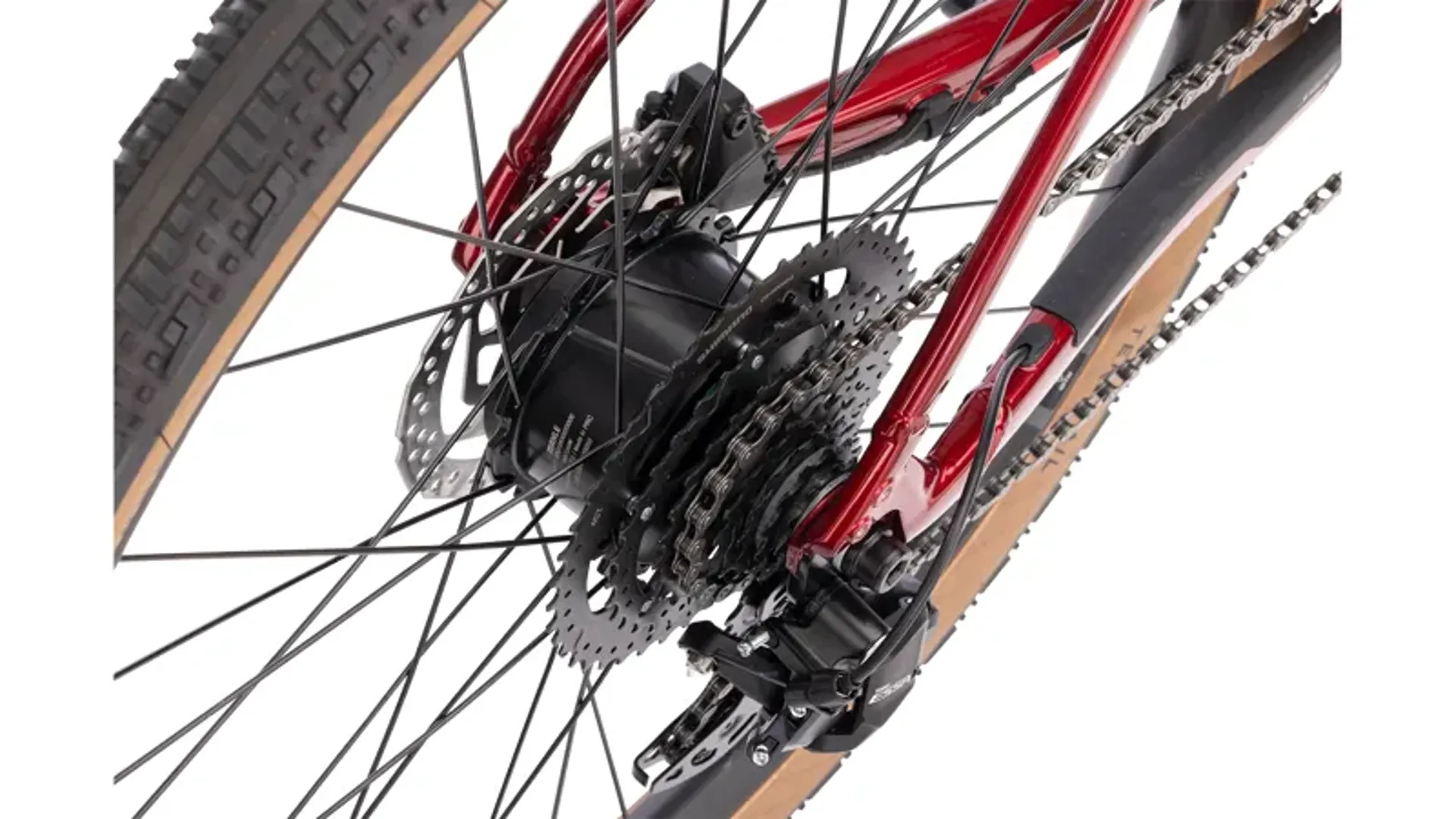

  • MAHLE X30 Class 1 hub-drive system with 45Nm max torque
  • 237Wh MAHLE iX2 internal battery in downtube
  • Capable of up to 421Wh with MAHLE’s external battery EX1 171Wh range extender (sold separately)
  • HMI compact remote top tube controller
  • MAHLE Duo remote handlebar-mounted controller allows rider to cycle through assist modes without taking hands off handlebar
  • Massive 700c x 50mm tire clearance (max 42mm tire clearance with fenders)
  • Fender mounts and Three-Pack mounts on fork
  • Meets UL 2849 and UL 2271 certification standards
Technical Information
  • Frame
    Confluence 2.0
  • Color
    Canyon Red
  • Fork
    Confluence Carbon 2.0
  • Headset
    FSA
  • Seatpost
    Promax 12mm setback
  • Stem
    Salsa Guide
  • Grips/Bar Tape
    Velo
  • Saddle
    WTB Volt
  • Handlebar
    Salsa Salt Flat
  • Lights Included
    No
  • Rear Derailleur
    Shimano ESSA U2000
  • Cassette
    Shimano HG300, 11–45t, 8-speed
  • Drive Type
    Hub-Drive
  • Chain
    KMC 8-speed

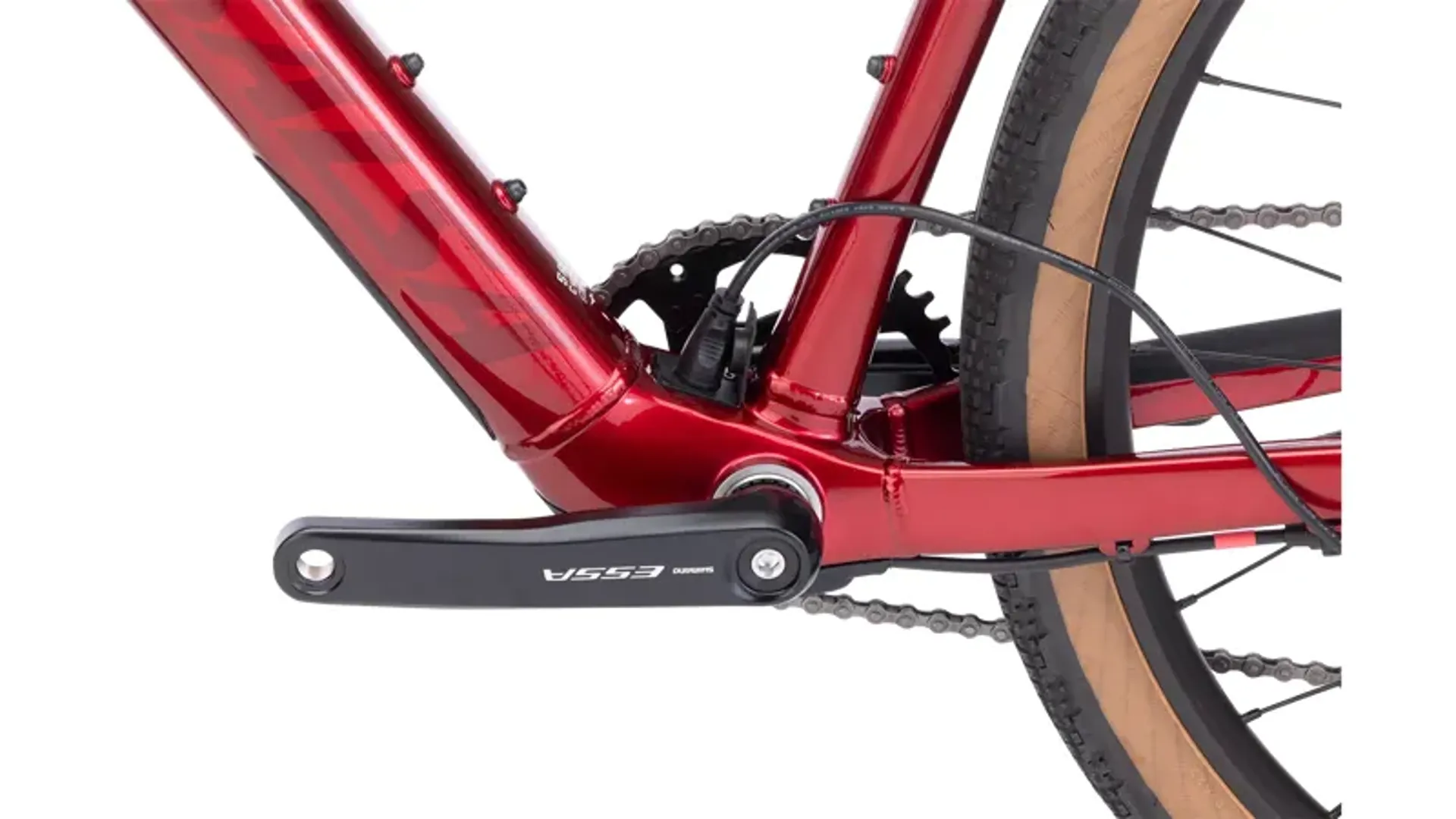

  • Crankset

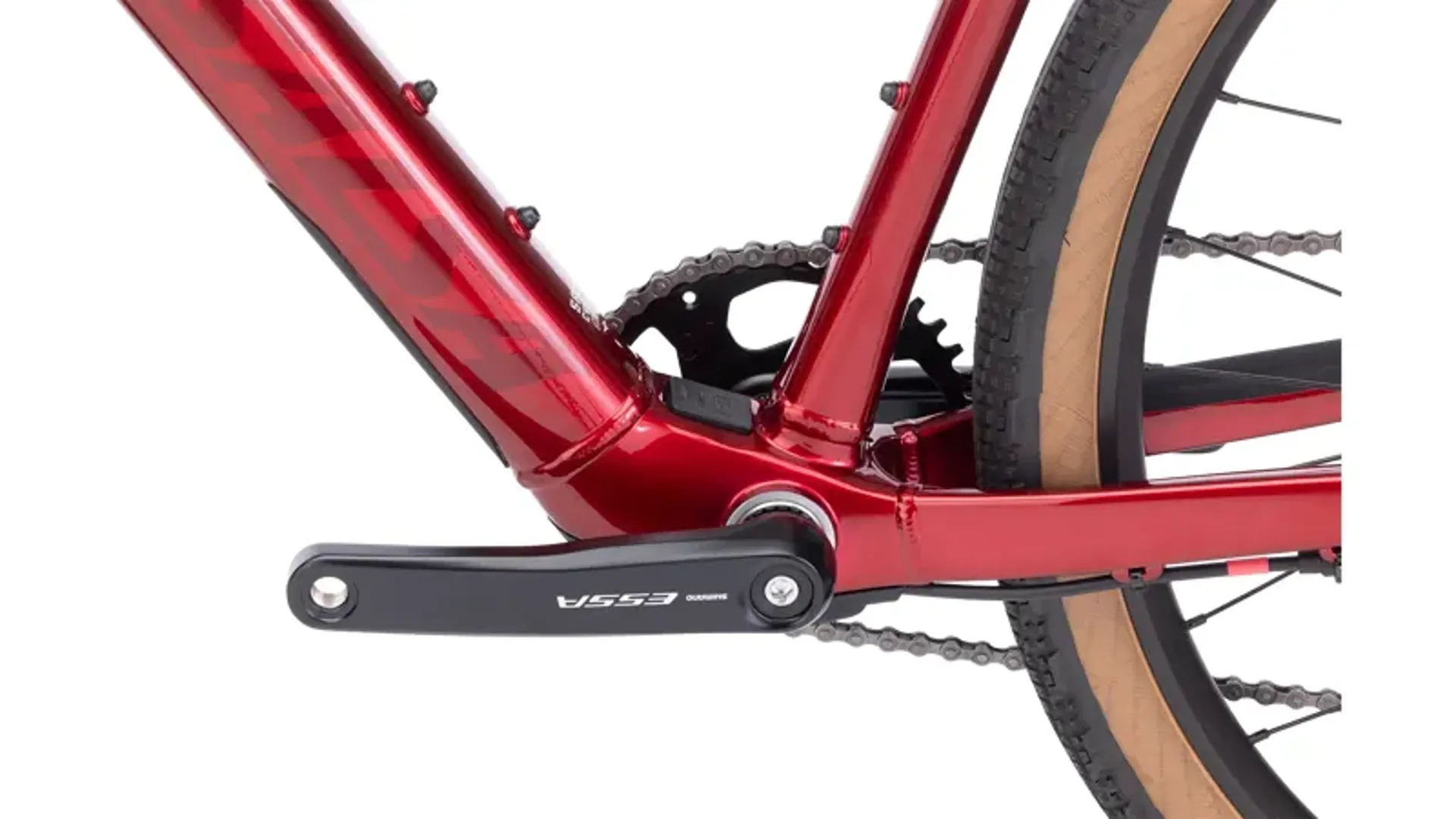

    Shimano ESSA U2000, 40t
  • Shifter
    Shimano ESSA M315-8R
  • Brake Levers
    Shimano MT200
  • Brake Calipers
    Shimano MT201
  • Assist Levels
    3
  • Rotors
    Shimano RT26 (6-bolt, 180mm front, 160mm rear)
  • Drive Unit
    MAHLE X30
  • Ebike Classification
    Class 1
  • Max Assist Speed
    20mph/32kmh
  • Motor Torque
    45Nm
  • Max Motor Assist
    250W
  • Battery Capacity Watt Hours
    237Wh
  • Battery Type
    Li-ion
  • Removable Battery
    No
  • Battery Power Volts
    36V
  • Estimated Charge Time
    3.5 hours
  • Charger Included
    Yes
  • Throttle
    No
  • Walk Assist
    Yes
  • Front Tire
    Teravail Washburn 700c x 50mm, wire bead
  • Rear Tire
    Teravail Washburn 700c x 50mm, wire bead
  • Front Hub
    WTB
  • Rear Hub
    MAHLE X30
  • Rim
    WTB ST i25
  • Design Wheel/Tire Sizes
    700c
  • Max Tire Outer Diameter
    Tire Clearance Frame: 50mm Tire Clearance Fork: 50mm
  • Frame Construction
    6061-T6 Aluminum
  • Fork Construction
    Carbon fiber
  • Suspension Fork Length (Travel)
    40mm
  • Fork Offset
    51mm
  • Rear Spacing
    136mm
  • Rear Axle Size
    10 x 1mm
  • Front Brake (Rotor)
    160–180mm
  • Headset - Upper
    IS41
  • Headset - Lower
    IS52
  • Front Spacing
    100mm
  • Front Axle Size
    M12 x 120, TP = 1.5
  • Steerer Tube
    1 1/8"
  • Seatpost
    27.2mm
  • Dropper Post Compatible
    Yes (internal)
  • Seatpost Clamp
    32.0mm
  • Derailluer Hanger
    MAHLE with derailleur hanger
  • Bottom Bracket
    68mm, BSA
  • Crankset (Max Ring)
    46t
  • Accessory Mounts
    Rack Mounts Frame: Yes, Rack Mounts Fork: No, Downtube Accessory Mounts: No, Fender Mounts Frame: Yes, Fender Mounts Fork: Yes
  • Bottle Mounts
    Frame: 2, Fork: 2 sets of Three-Pack mounts
  • Available Sizes
    X-Small, Small, Medium, Large, X-Large
  • Effective Top Tube (X-Small)
    550.0
  • Effective Top Tube (Small)
    570.0
  • Effective Top Tube (Medium)
    600.0
  • Effective Top Tube (Large)
    625.0
  • Effective Top Tube (X-Large)
    650.0
  • Stand Over (X-Small)
    631.0
  • Stand Over (Small)
    669.0
  • Stand Over (Medium)
    731.0
  • Stand Over (Large)
    770.0
  • Stand Over (X-Large)
    809.0
  • Reach (X-Small)
    389.8
  • Reach (Small)
    401.3
  • Reach (Medium)
    419.9
  • Reach (Large)
    433.5
  • Reach (X-Large)
    447.4
  • Stack (X-Small)
    523.9
  • Stack (Small)
    551.8
  • Stack (Medium)
    589.0
  • Stack (Large)
    626.2
  • Stack (X-Large)
    662.6
  • Total Seat Tube Length (X-Small)
    340.0
  • Total Seat Tube Length (Small)
    380.0
  • Total Seat Tube Length (Medium)
    450.0
  • Total Seat Tube Length (Large)
    490.0
  • Total Seat Tube Length (X-Large)
    530.0
  • Headtube Length (X-Small)
    90.0
  • Headtube Length (Small)
    120.0
  • Headtube Length (Medium)
    160.0
  • Headtube Length (Large)
    200.0
  • Headtube Length (X-Large)
    240.0
  • Headtube Angle (All Sizes)
    68.5
  • Seat Tube Angle (All Sizes)
    73.0
  • BB Drop (All Sizes)
    70.0
  • Chainstay Length (All Sizes)
    440.0
  • Fork Length Axle to Crown (All Sizes)
    417.0
  • Fork Offset (All Sizes)
    51.0
  • Wheelbase (X-Small)
    1057.8
  • Wheelbase (Small)
    1080.3
  • Wheelbase (Medium)
    1113.6
  • Wheelbase (Large)
    1141.9
  • Wheelbase (X-Large)
    1170.1
  • Crank Arm Length (X-Small/Small/Medium)
    170.0
  • Crank Arm Length (Large/X-Large)
    175.0
  • Handlebar Width (All Sizes)
    700.0
  • Recommended Rider Height (X-Small)
    142.0 - 152.0
  • Recommended Rider Height (Small)
    150.0 - 163.0
  • Recommended Rider Height (Medium)
    160.0 - 173.0
  • Recommended Rider Height (Large)
    170.0 - 183.0
  • Recommended Rider Height (X-Large)
    180.0 - 193.0
  • Stem Length (X-Small)
    60.0
  • Stem Length (Small/Medium)
    70.0
  • Stem Length (Large)
    80.0
  • Stem Length (X-Large)
    90.0
