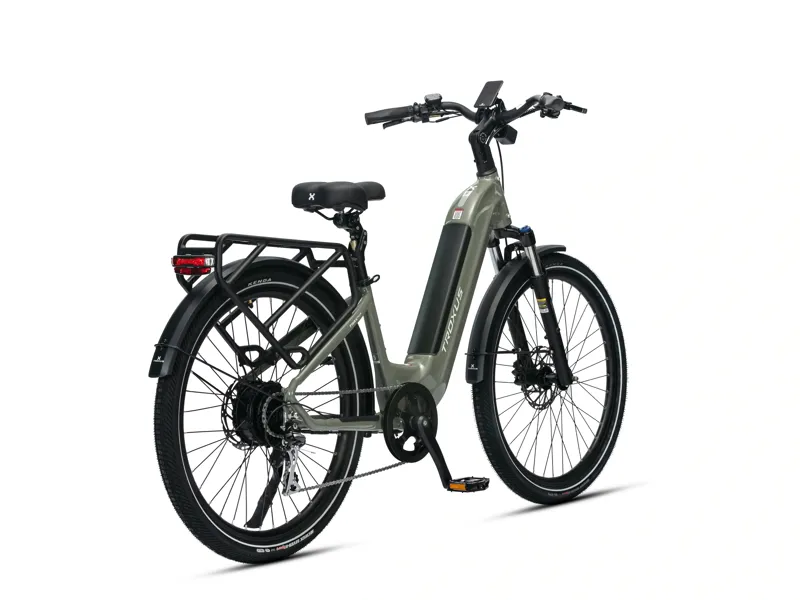

The Trax Plus 500W/15Ah is a high-performance commuter e-bike, built to conquer city streets and harsh urban terrain with a 500W motor and 720Wh battery.
The Trax Plus 500W/15Ah is a high-performance commuter e-bike, built to conquer city streets and harsh urban terrain with a 500W motor and 720Wh battery.
Troxus Usa

Troxus Usa Trax Plus Step-Thru 500/15 inch - Deep Moss

$1,899.99 $2,299.99 17% off
Size Guide
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

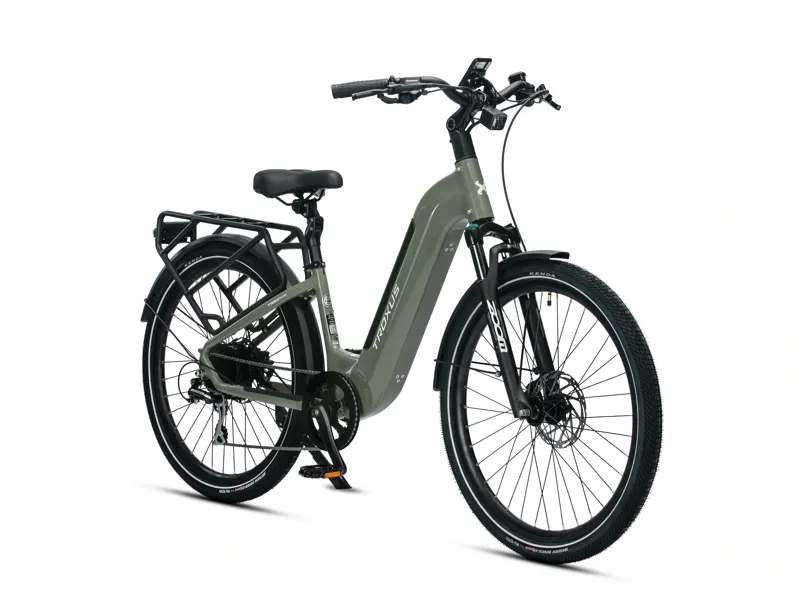

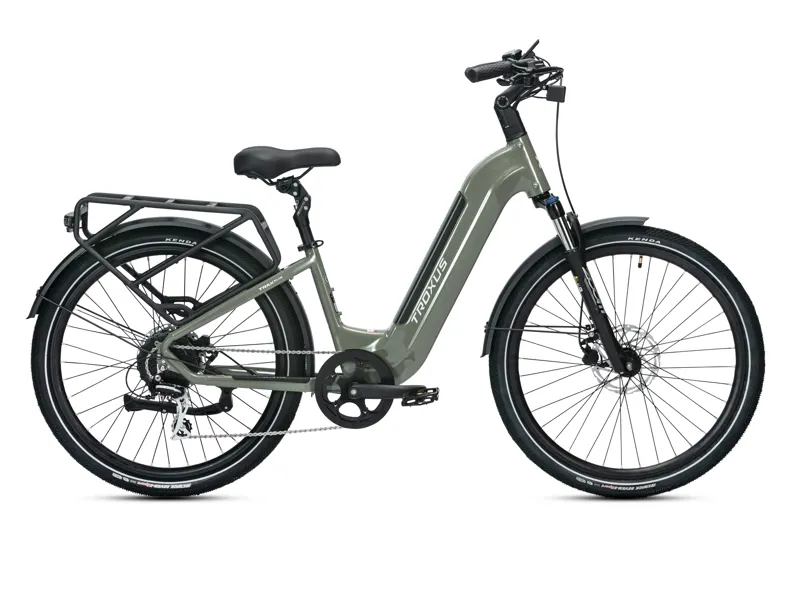

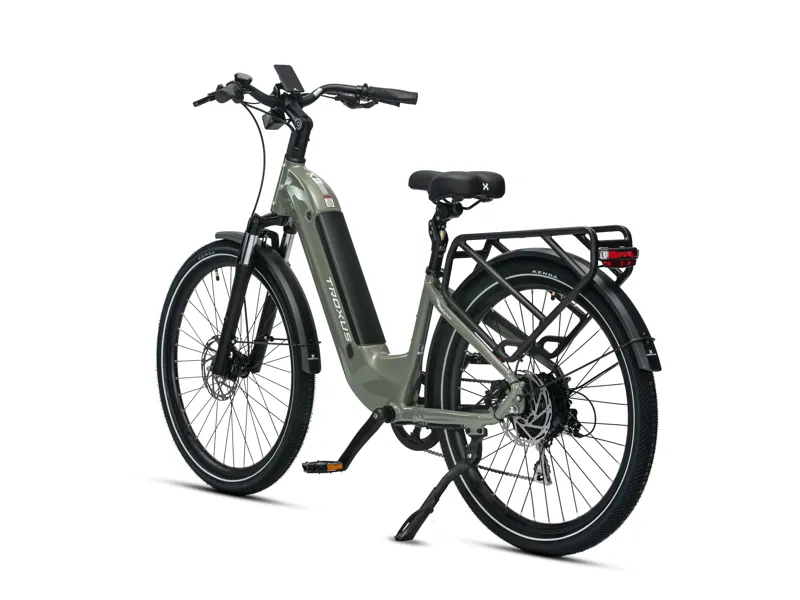

Troxus Usa Trax Plus Step-Thru 500/15 inch - Deep Moss

Brand:Troxus Usa

Code:TTPS5IDMDEEP MOSS

The Trax Plus 500W/15Ah is a high-performance commuter e-bike, built to conquer city streets and harsh urban terrain with ease.

Powered by a robust 500W motor and a long-lasting 720Wh battery, this bike delivers all the power needed for any ride. The smooth suspension seat post adds a layer of comfort. Whether climbing steep hills or cruising through the city, the Trax Plus 500W/15Ah makes every journey effortless, exciting, and fun.

The 720Wh internal battery, powered by premium Samsung cells, offers incredible endurance for daily commutes or long weekend adventures. The 500W rear hub motor delivers seamless acceleration and remarkable torque, effortlessly conquering steep hills and challenging terrain. The suspension seat post absorbs road vibrations and bumps, making the journey smoother and more comfortable, even on rough terrain. Paired with the suspension fork, every journey is comfortably smooth. Stay in control with switchable torque or cadence sensor modes and hydraulic disc brakes.

Features:

  • 28 mph max speed
  • Up to 70 miles per charge
  • Class 3 eBike
  • UL 2271 certified 720Wh battery

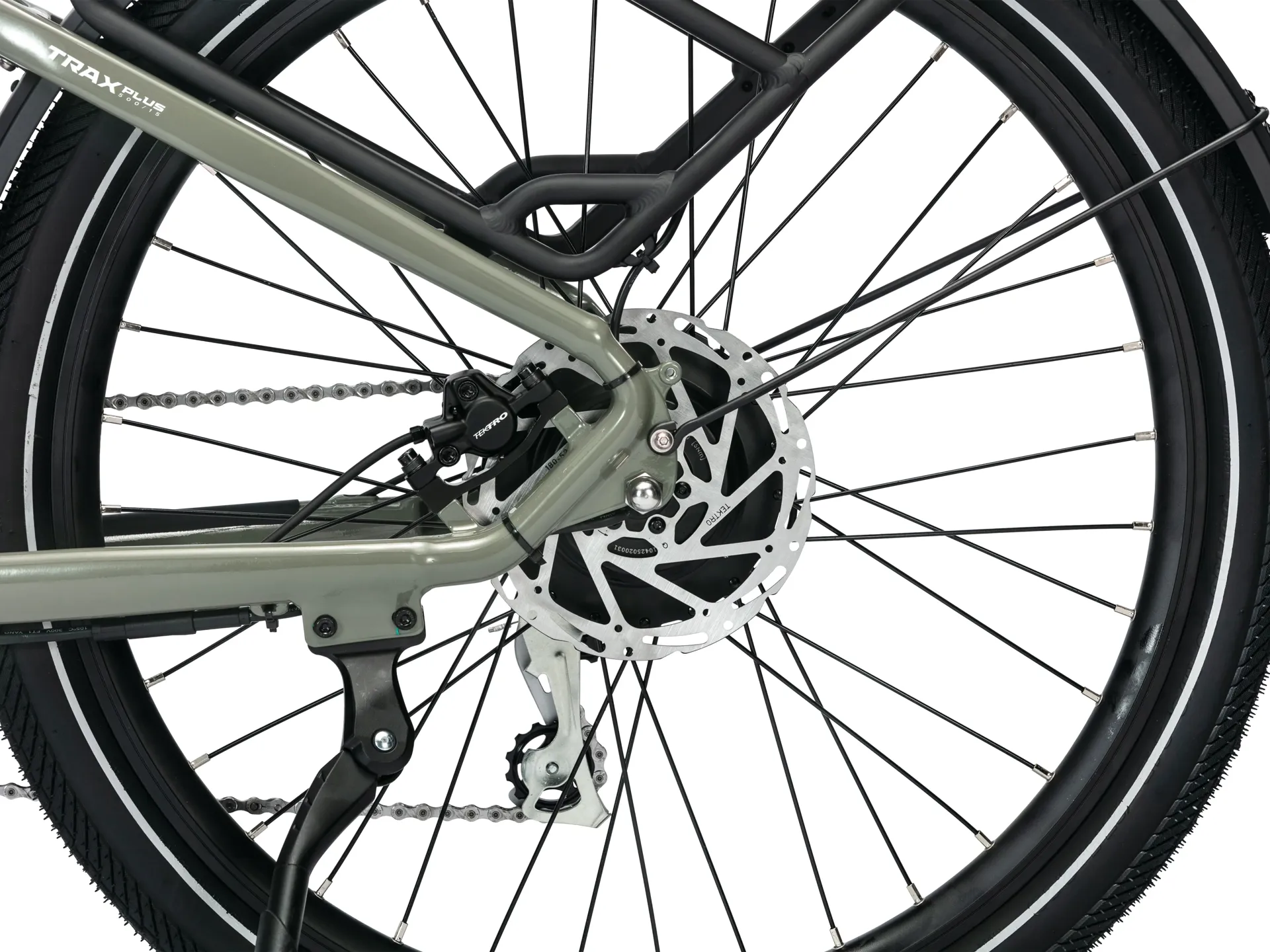

  • 500W rear hub motor
  • MIK-compatible rear rack
  • Color display with Bluetooth connectivity
Technical Information
  • Max speed
    Up to 20 mph on throttle / Up to 28 mph on pedal assist
  • Range
    Up to 70 miles per charge
  • Weight limit
    383 lbs
  • Net weight
    68.5 lbs

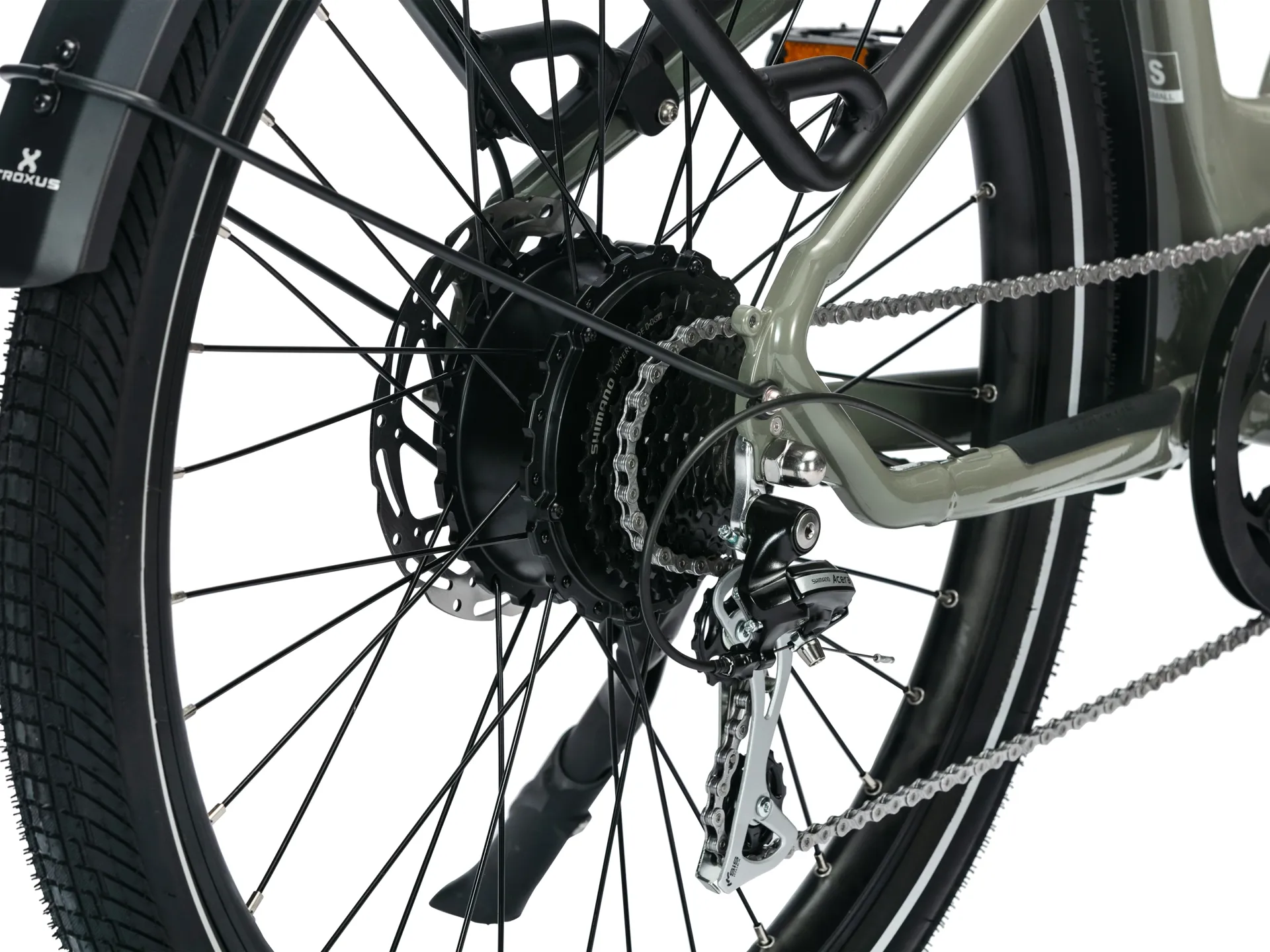

  • Motor
    Ananda 48V/500W hub-drive motor, 65Nm max. torque
  • Battery
    UL-2271 certified, internal, removable, lithium ion, 48V/15Ah (720Wh) with Samsung cells

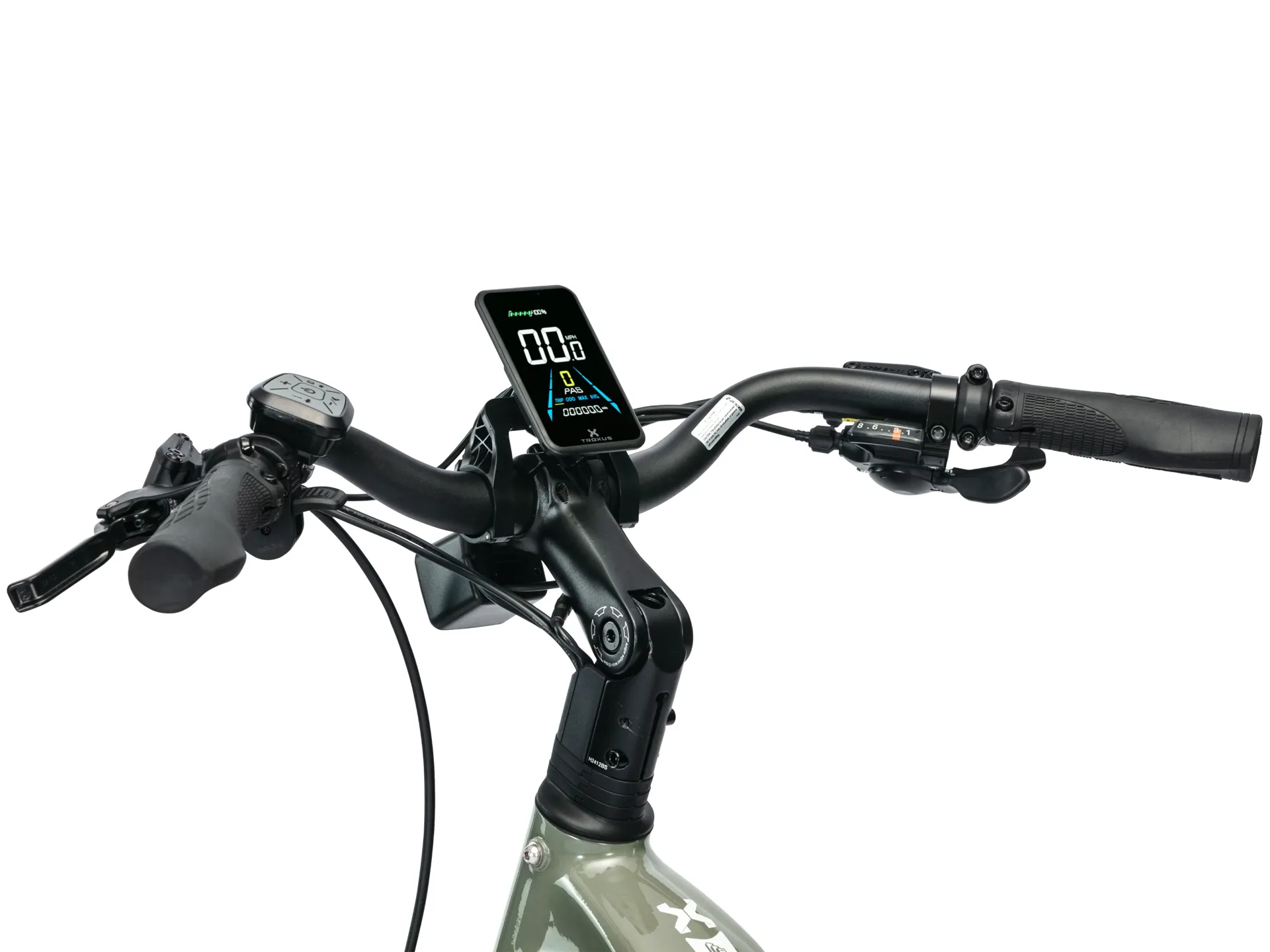

  • Display
    Color display, Bluetooth, with turn light signals, with multi-function remote
  • Sensor
    Switchable torque and cadence sensor modes
  • Pedal assist
    0-5 level pedal assist
  • Charger
    2A / 100-240V input / 54.6V output
  • Lights
    Front light and rear light
  • Controller
    48Vx18A/12V
  • Frame
    Hydroformed aluminum frame
  • Fork
    Zoom front suspension fork, 65mm travel
  • Chain
    KMC 1/2"x3/32"
  • Crankset
    Aluminum, 46T, with single alloy chainguard, square taper, 170mm

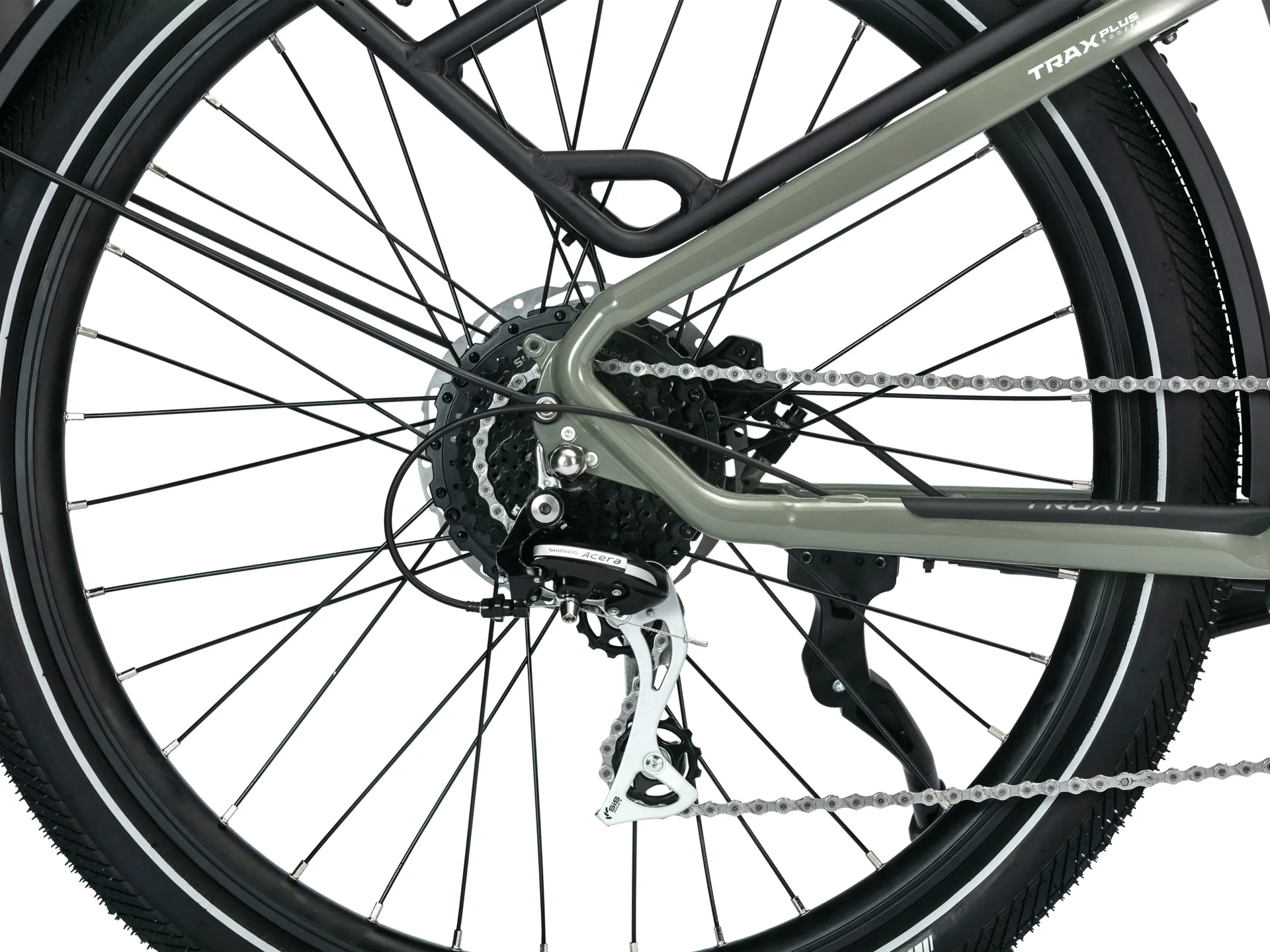

  • Rear derailleur
    Shimano RD-M3020-8, Acera, 8-speed
  • Cassette
    Shimano 8-speed, 12-32T
  • Shifter
    Shimano 8-speed
  • Bottom bracket
    Square taper sealed bearings, torque and cadence sensors included
  • Tires
    KENDA 27.5"x2.2", with reflective stripes, puncture-resistant, E-50 rated
  • Front hub
    Alloy, 36H, 100mm, 3/8" axle with nuts
  • Rims
    Alloy single wall front / double wall rear, 36H, 27.5"x2.2", with eyelets
  • Spokes
    Stainless 13G front / 12G rear
  • Brakes
    Tektro hydraulic, with brake sensors
  • Rotors
    180mm / 180mm
  • Saddle
    DDK DE-430 comfort, 200mm wide

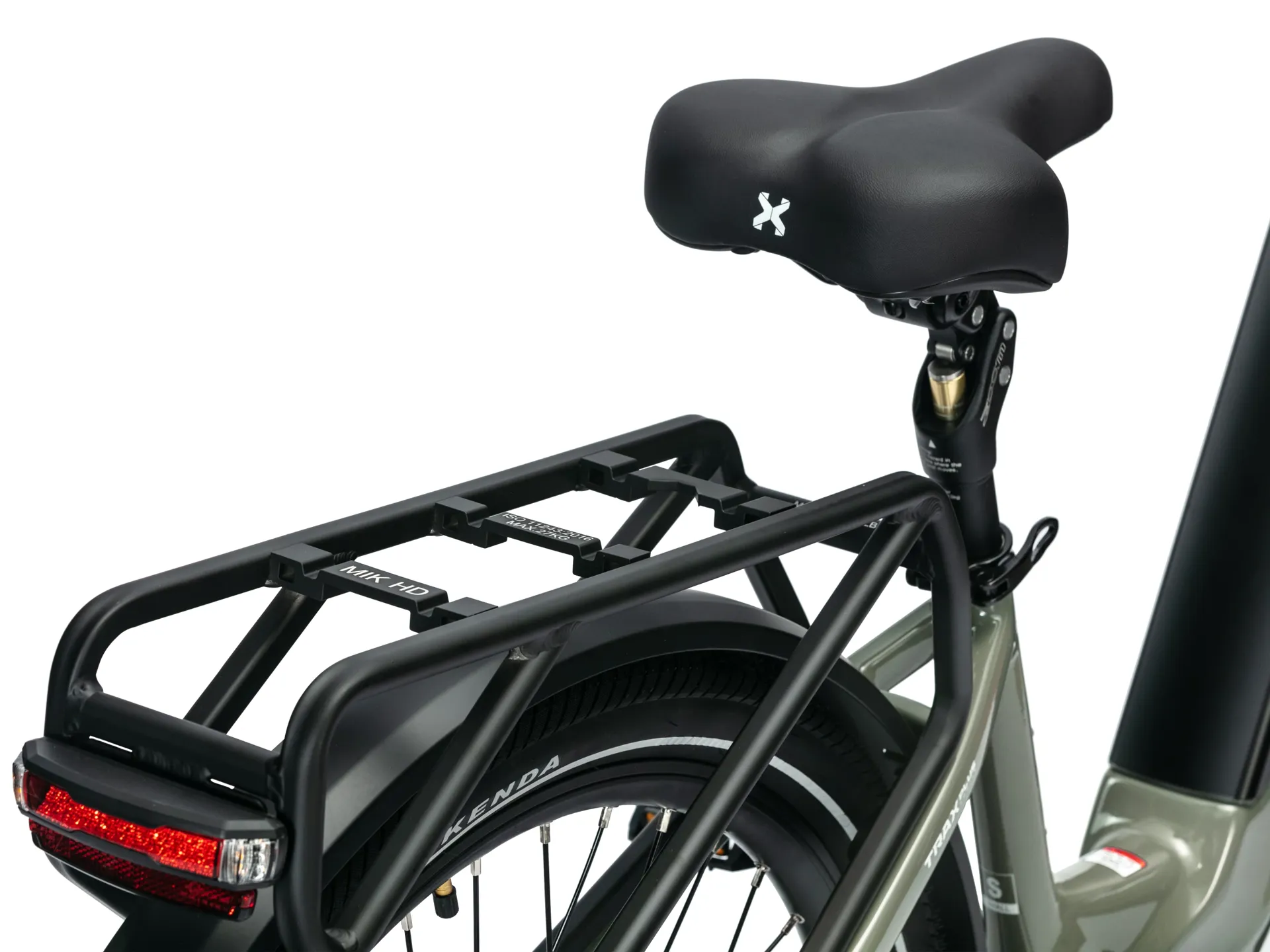

  • Seat post
    Troxus with suspension, alloy 30.9x400mm, adjustable
  • Seat post clamp
    Alloy, 35mm with quick release

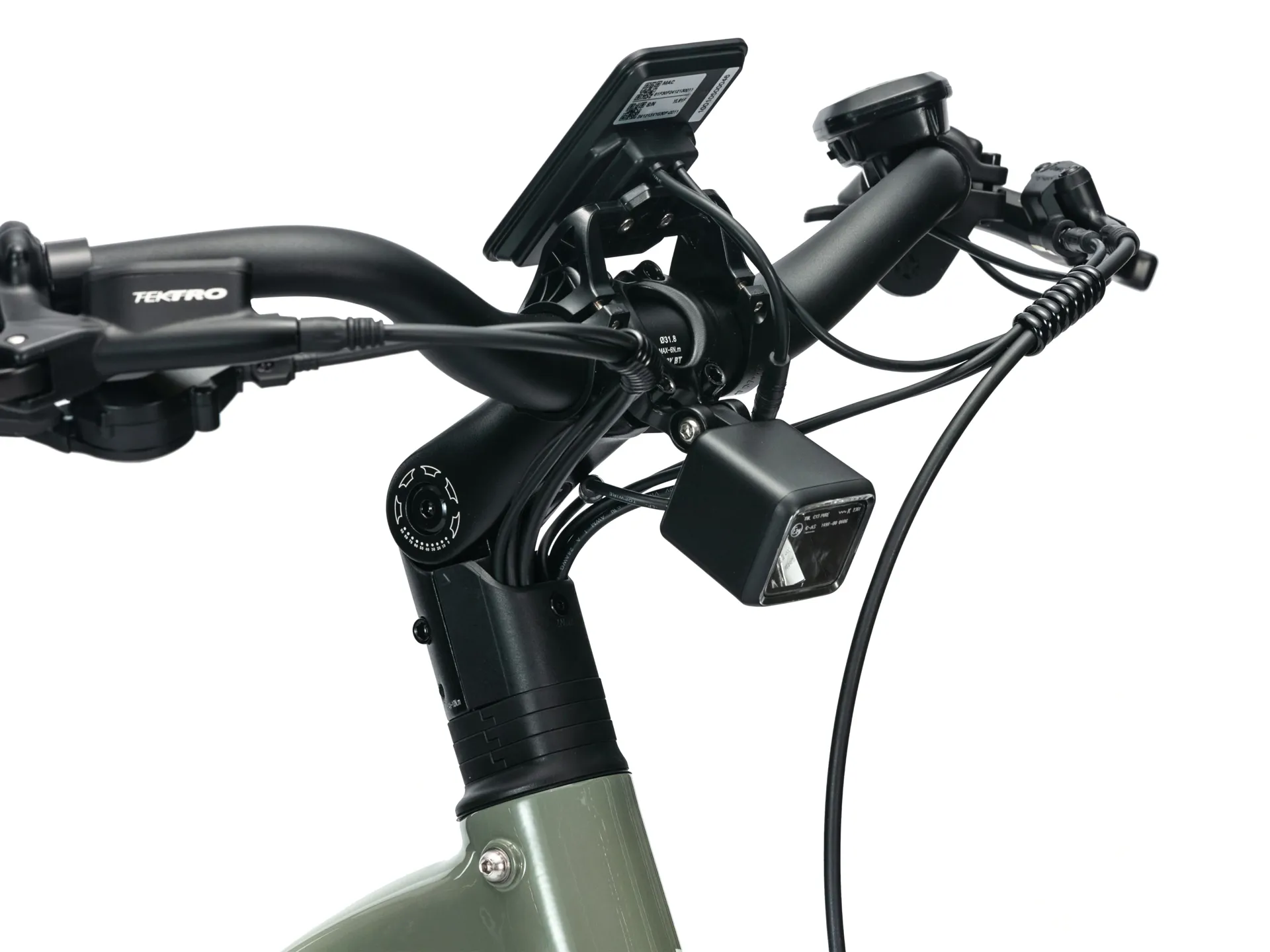

  • Stem
    Zoom alloy, forged, adjustable, TDS-D634B-8/FOV, ext. 90mm, ICR type with internal cable routing
  • Handlebar
    Zoom alloy, 31.8mmx620mm, 35˚ backsweep
  • Grips
    Ergonomic comfort
  • Pedals
    Alloy, 9/16" axles, with BS reflectors
  • Headset
    Gyneyea T192KS-56, threadless 57/56mm, with internal cable routing

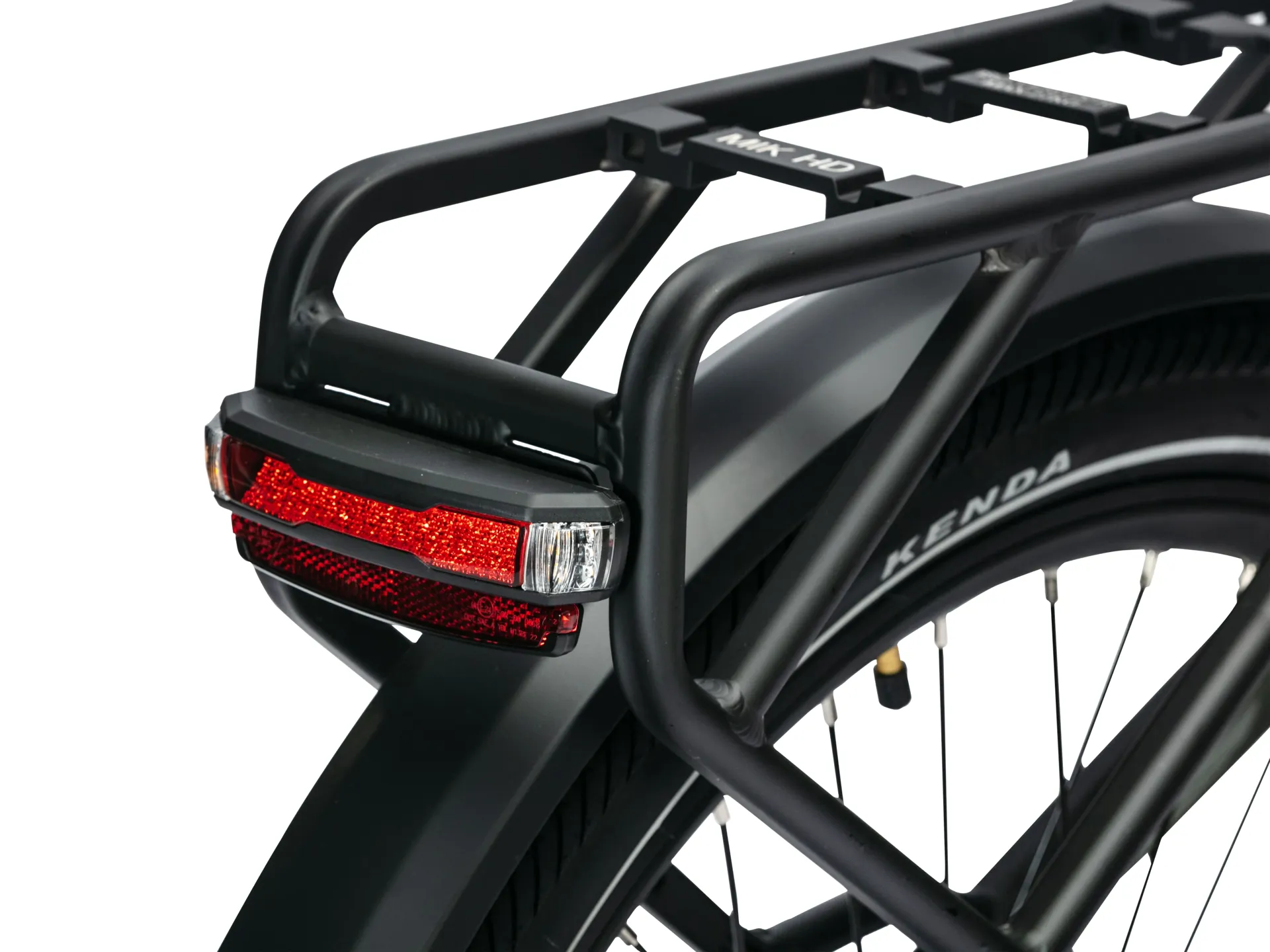

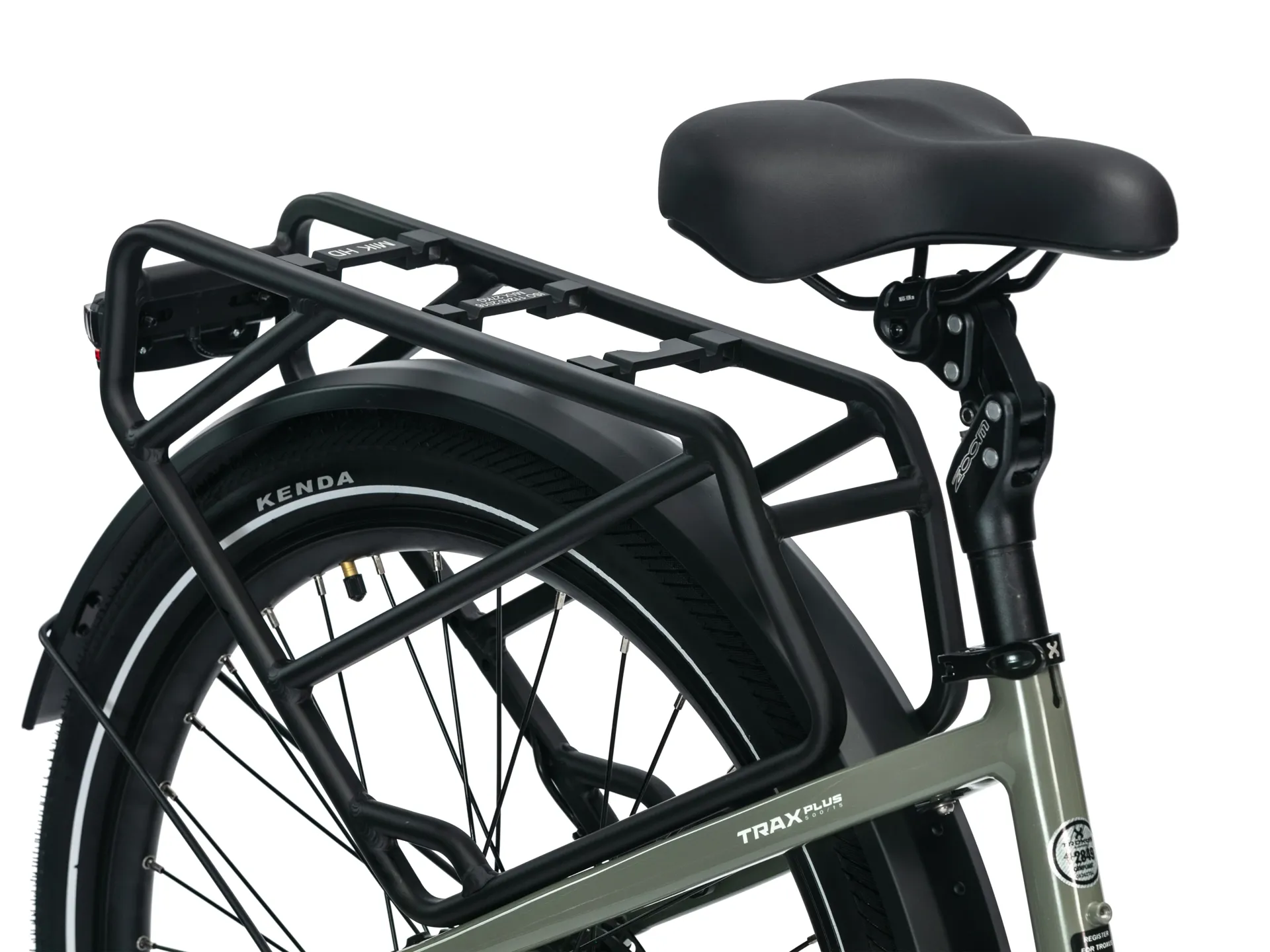

  • Rack
    Alloy rear model, MIK-compatible rear rack
  • Fender
    Alloy, 27.5", full coverage
  • Kickstand
    Adjustable side kickstand
  • E-bike class
    Class 3
Sizing Information
Troxus Trax Plus Step-Thru Geometry Diagram
Measurement Small (15") Medium (17") Large (20")
Model Step Thru Step Thru Step Over
Wheel Size 27.5" x 2.2" 27.5" x 2.2" 27.5" x 2.2"
A - Seat Tube Length 381 mm 432 mm 500 mm
B - Seat Tube Angle 72˚ 72˚ 72˚
C - Head Tube Length 150 mm 150 mm 150 mm
D - Head Tube Angle 68˚ 69˚ 69˚
E - Effective Top Tube Length 613.5 mm 639 mm 645 mm
F - Bottom Bracket Height 296 mm 296 mm 296 mm
G - Bottom Bracket Drop 55 mm 55 mm 55 mm
H - Chainstay Length 480 mm 480 mm 480 mm
I - Fork Offset 42 mm 42 mm 42 mm
J - Wheelbase 1163 mm 1168 mm 1183 mm
K - Frame Reach 410 mm 425 mm 440 mm
L - Frame Stack 626 mm 631 mm 631 mm
Fork Travel 65 mm 65 mm 65 mm
Fork Height 480 mm 480 mm 480 mm
