The Trax Sport is a sleek, fitness-focused commuter e-bike designed for city streets. It features a lightweight frame, rigid fork, and refined electronics.
The Trax Sport is a sleek, fitness-focused commuter e-bike designed for city streets. It features a lightweight frame, rigid fork, and refined electronics.
Troxus Usa

Troxus Usa Trax Sport Large - Natural Slate

$1,899.99
Size Guide
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Troxus Usa Trax Sport Large - Natural Slate

Season:2025/2026

Brand:Troxus Usa

Code:10870100300

The Trax Sport is made for those who live fast and ride light.

The Trax Sport is designed for city streets and upstairs walk-ups. It is a sleek, fitness-focused commuter e-bike built with style and agility in mind. With a lightweight frame, rigid fork, and refined electronics, this ride is perfect for urban explorers who want speed, simplicity, and zero compromises.

Features:

  • 25 mph max speed
  • Up to 45 miles per charge
  • Class 2 eBike as sold
Sizing Information
Troxus Trax Sport E-Bike
Size Frame Size Wheel Size A - Seat Tube Length (mm) B - Seat Tube Angle C - Head Tube Length (mm) D - Head Tube Angle E - Effective Top Tube Length (mm) F - Bottom Bracket Height (mm) G - Bottom Bracket Drop (mm) H - Chainstay Length (mm) I - Fork Offset (mm) J - Wheelbase (mm) K - Frame Reach (mm) L - Frame Stack (mm)
Small 5'0" - 5'5" (153 - 166 cm) 27.5"x1.75" 394 74˚ 140 69˚ 552 285 62 455 45 1082 388 571
Medium 5'5" - 5'10" (166 - 178 cm) 27.5"x1.75" 445 74˚ 145 69˚ 590 285 62 455 45 1121 425 576
Large 5'9" - 6'4" (176 - 193 cm) 27.5"x1.75" 495 74˚ 155 69˚ 609 285 62 455 45 1141 441 585

Specification Details
Max Speed Up To 20 MPH on Throttle / Up To 25 MPH on Pedal Assist
Range Up To 45 Miles Per Charge / Up to 65 Miles w/ Range Extender
Weight Limit Maximum Load: 300 lbs. / Rider: 245 lbs. / Rear Rack: 55 lbs.
Net Weight 47 lbs

E-System Component Specification
Motor Jiabo Hub-Drive Motor 36V/500W+ Peak Power, 50Nm Peak Torque

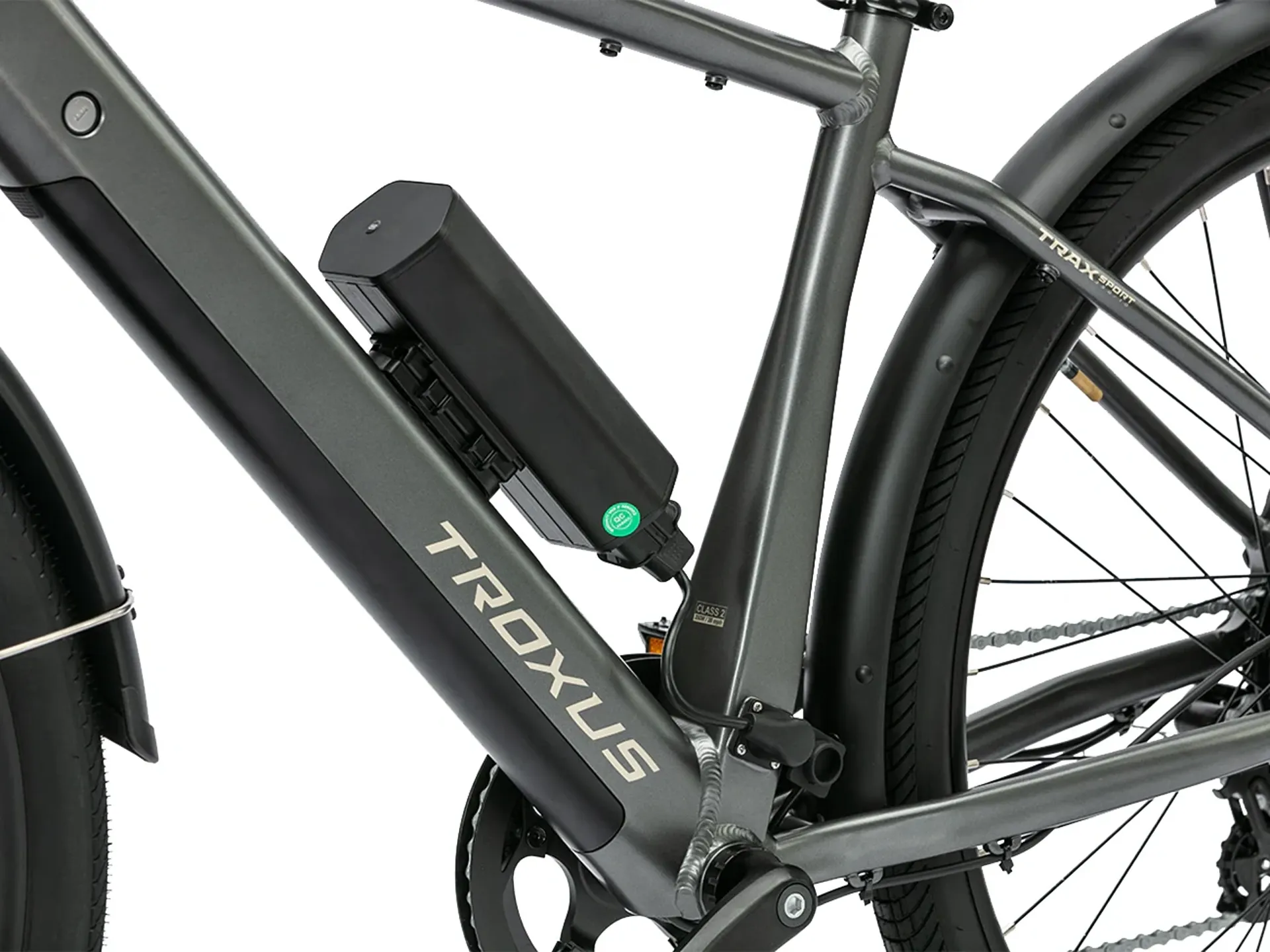

Battery UL-2271 Certified / Internal / Removable / Lithium Ion, 36V/10Ah (360Wh) with Samsung Cells, w/ Optional 252Wh Range Extender Battery (36V/7A)

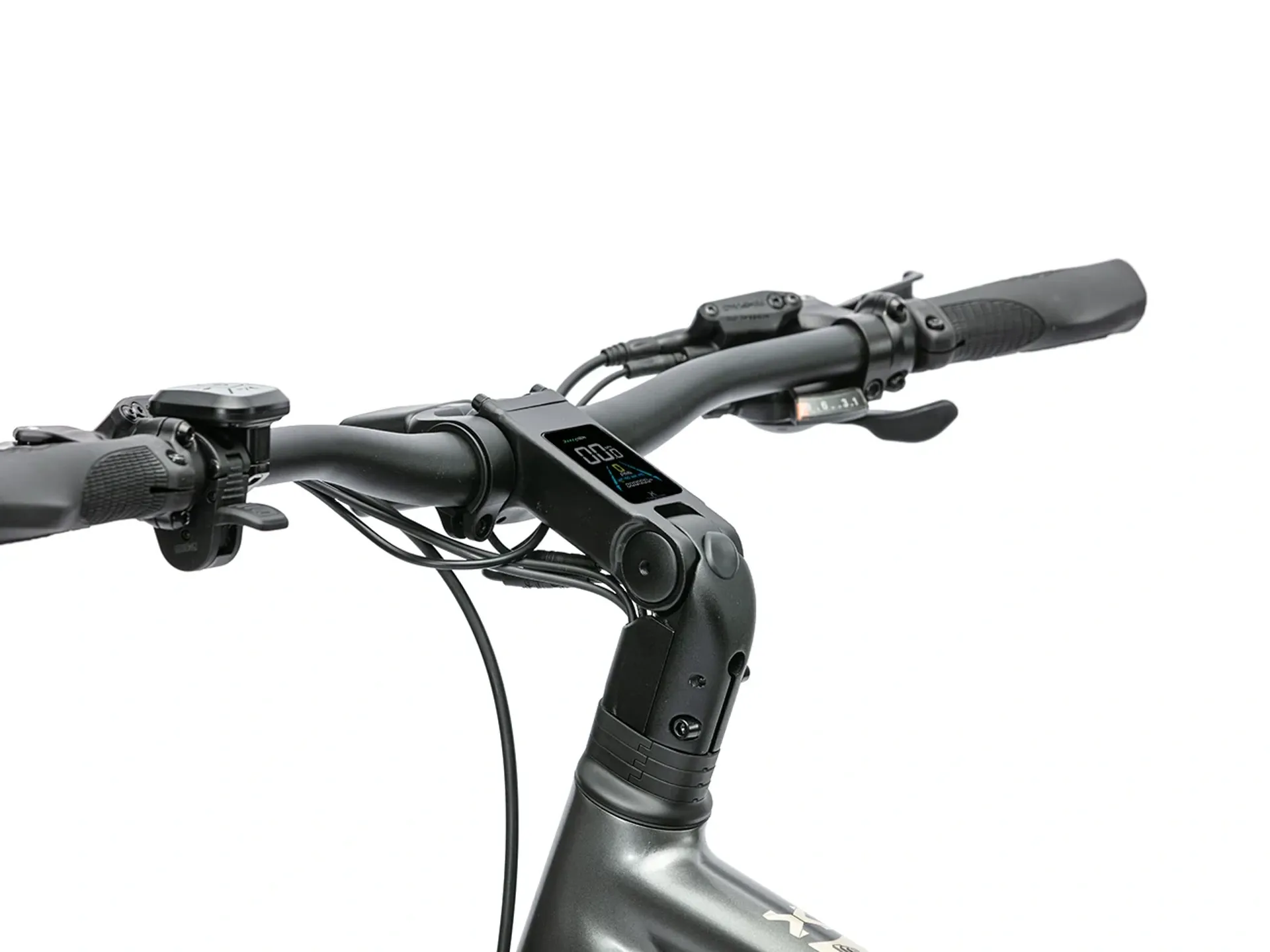

Display Stem-Integrated Color Display, Bluetooth, w/ Turn Signals, w/ Multi-Function Remote
Sensor Switchable Torque And Cadence Sensor Modes
Pedal Assist 0~5 Level Pedal Assist
Charger 2A / 100-240V Input / 42V Output
Lights Front Light & Rear Light
Controller 36Vx15A/12V

Component Specification
Frame 6061-T6 Aluminum Frame, Lightweight, Mid-Step & Step-Over
Fork Rigid Aluminum, 700c, Tapered 1.5", Internal Front Brake Routing
Chain KMC 1/2"x3/32"

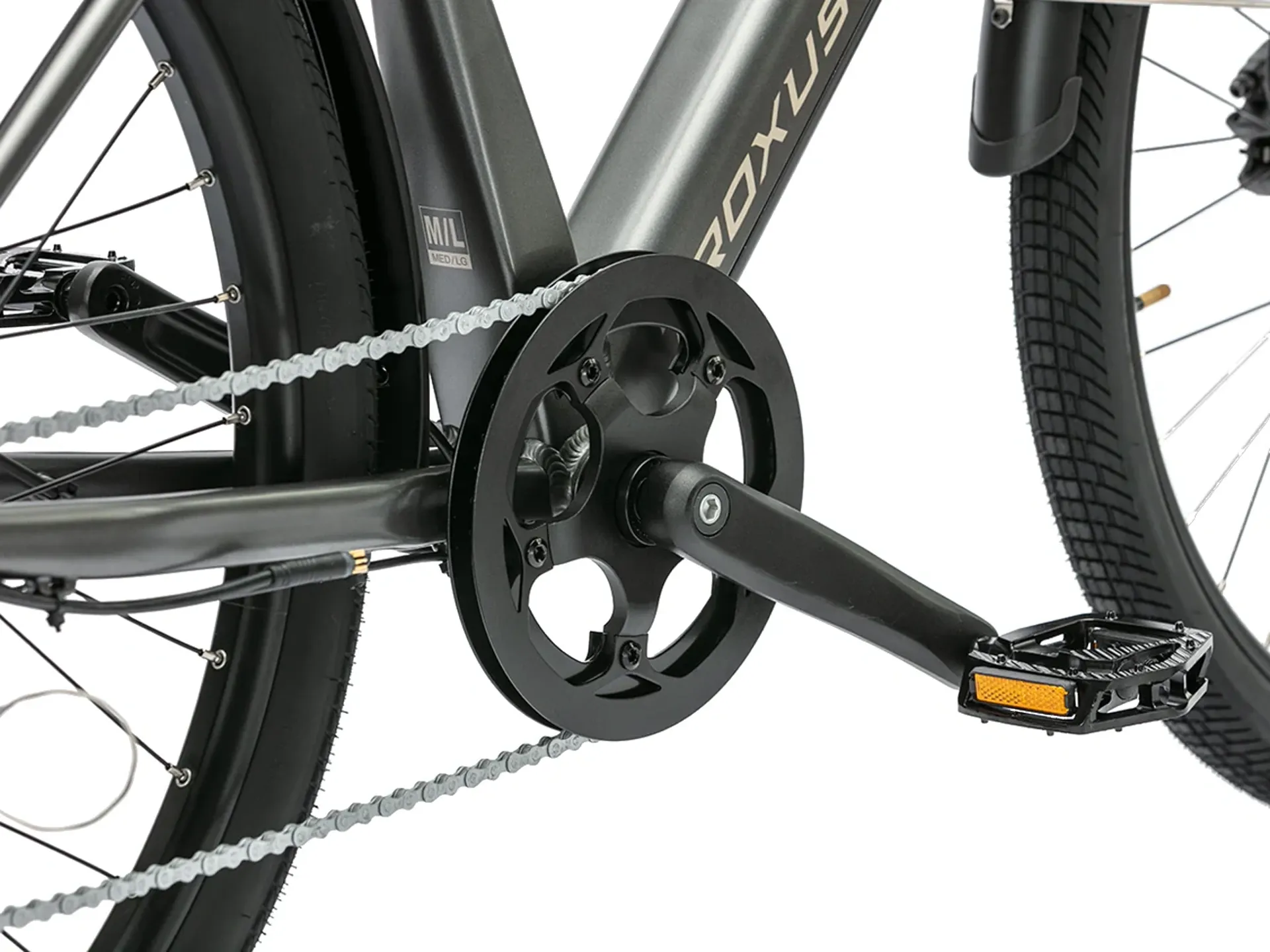

Crankset Aluminum, 46T, w/ Alloy Chainring & Single Chainguard, Square Taper, 170mm
Rear Derailleur Shimano RD-M310-L, Altus, 8-Speed
Cassette Shimano 8-Speed, 12-32T
Shifter Shimano 8-Speed
Bottom Bracket Square Taper Sealed Bearings, Torque & Cadence Sensors Included
Tires KENDA K-1266 Urban 27.5"x1.75"
Front Hub Alloy, 14Gx36H, O.L.D. 100mm, 3/8" Axle, w/ Nuts
Rear Hub Jiabo 36V 350W+/ 25 MPH. 50Nm
Rims Alloy Double Wall, 27.5"x2.0" w/ Eyelets
Spokes Stainless 14G. Front / 13G. Rear
Brakes Tektro Hydraulic, w/ Brake Sensors
Rotors 180mm / 160mm
Saddle Troxus Comfort / 195mm Wide
Seat Post Alloy, 30.9x400mm, Adjustable
Seat Post Clamp Alloy, 35mm w/ Quick Release
Stem Alloy, Forged, Adjustable, w/ Integrated Display / Ext. 110mm, w/ Internal Cable Routing
Handlebar Zoom Alloy, 31.8mmx700mm Wide, 20mm Rise, 9 Deg. Backsweep
Grips Ergonomic Comfort
Pedals 9/16" Alloy Platform with Reflectors
Headset ICR Type, Threadless, Internal 57/62mm, w/ Internal Cable Routing
Rack Lightweight Alloy Rear Model / MIK-Compatible Rear Rack
Fender Plastic 27.5"
Kickstand Adjustable Side Kickstand
