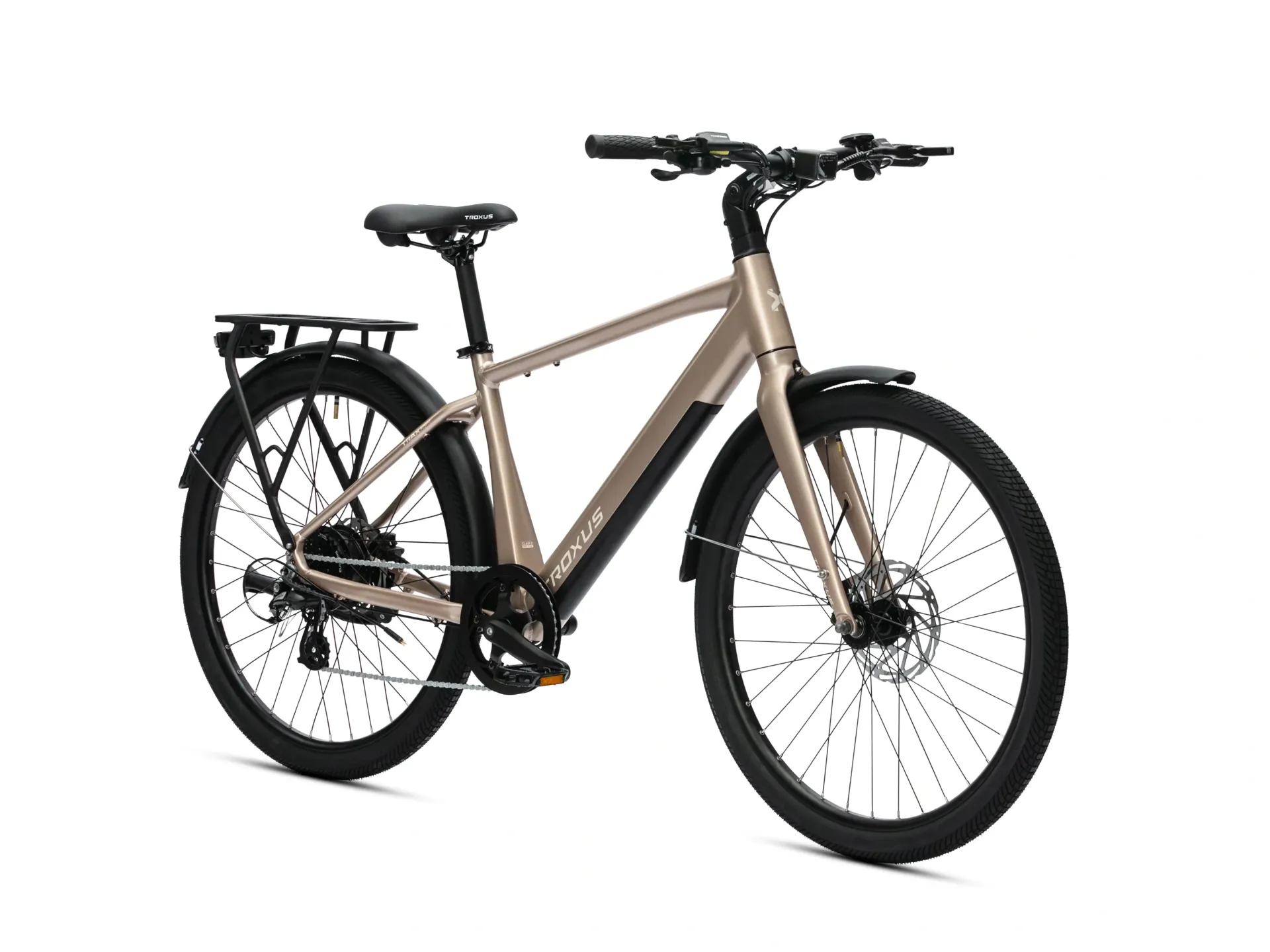

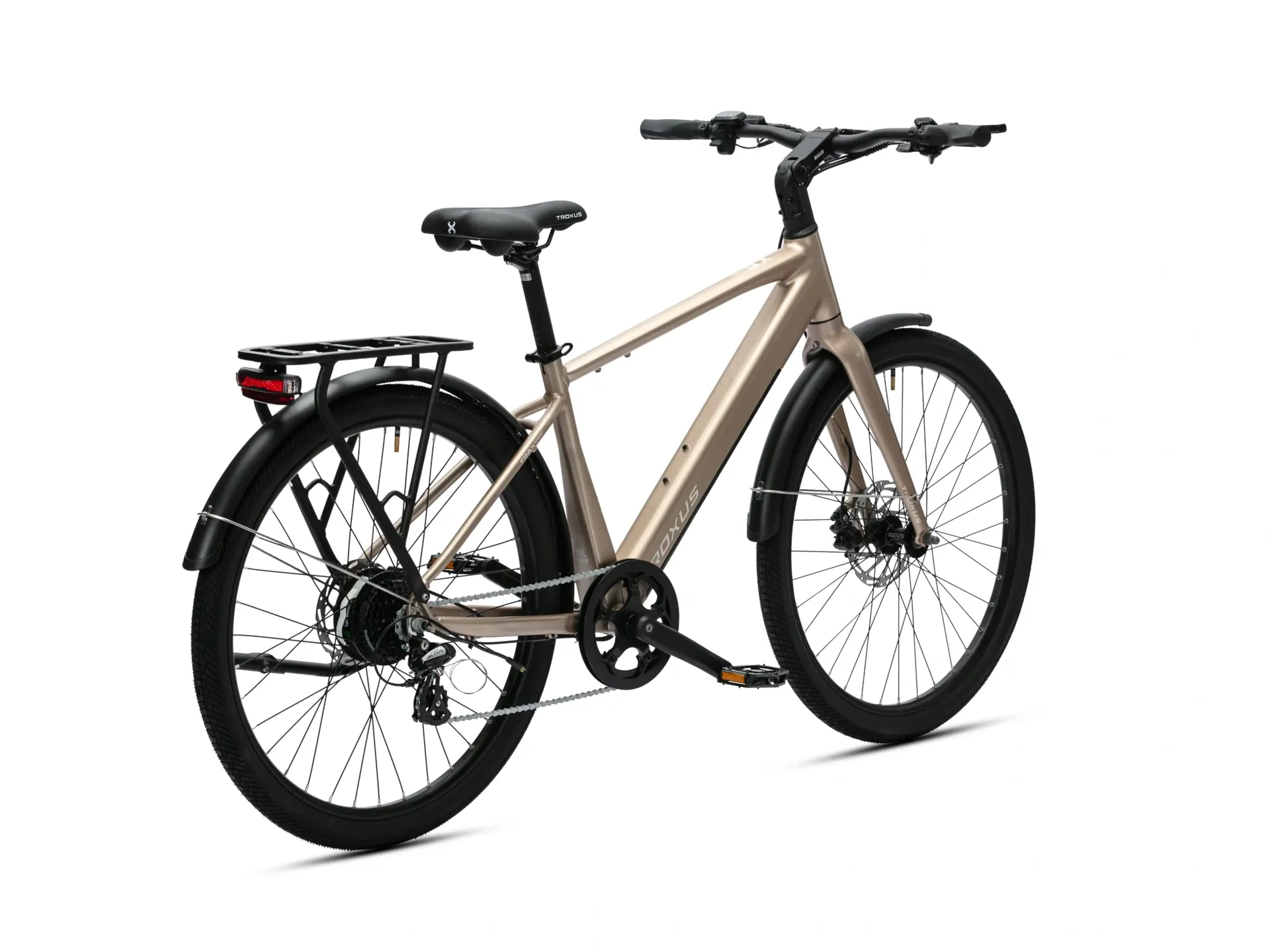

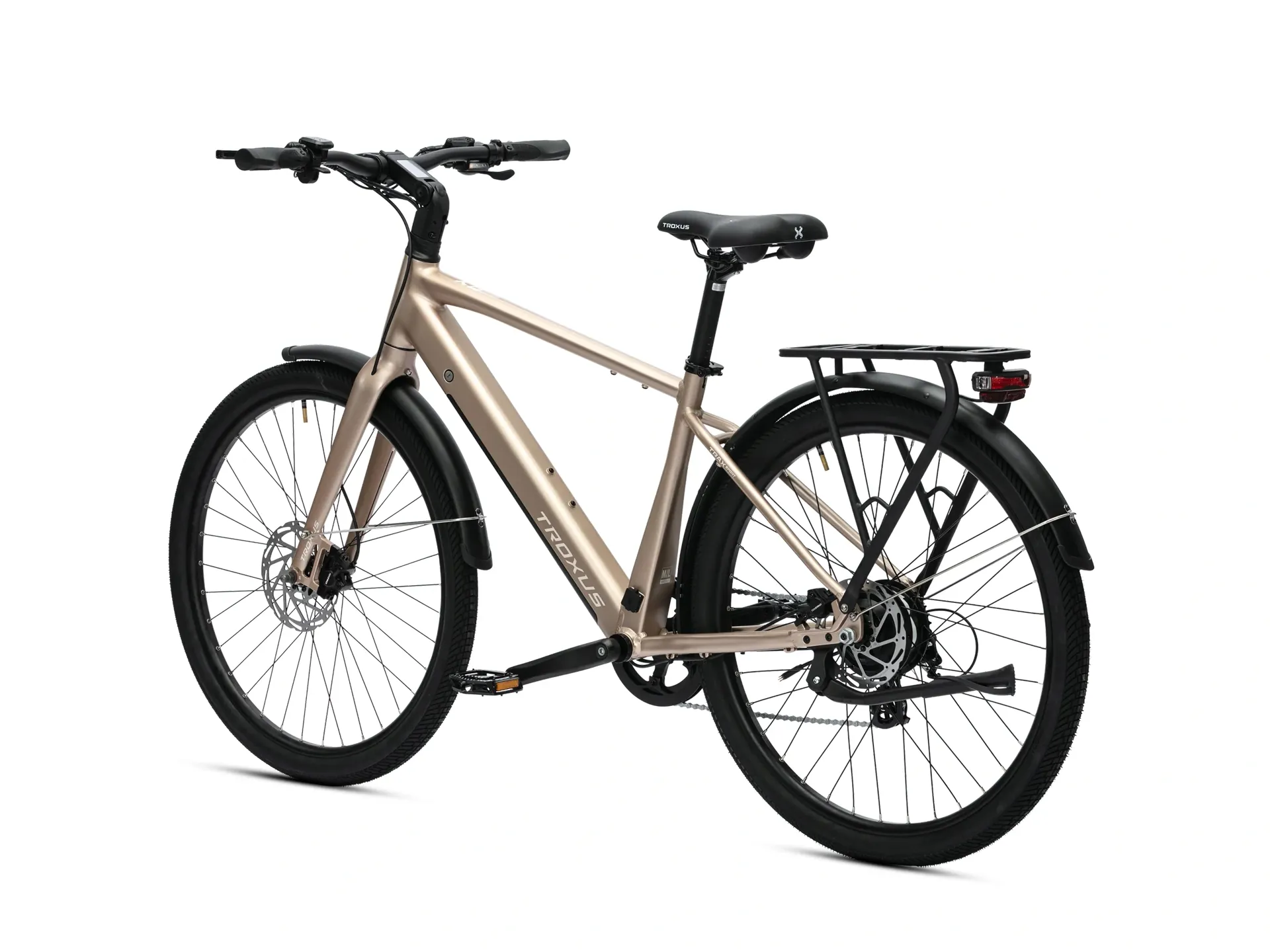

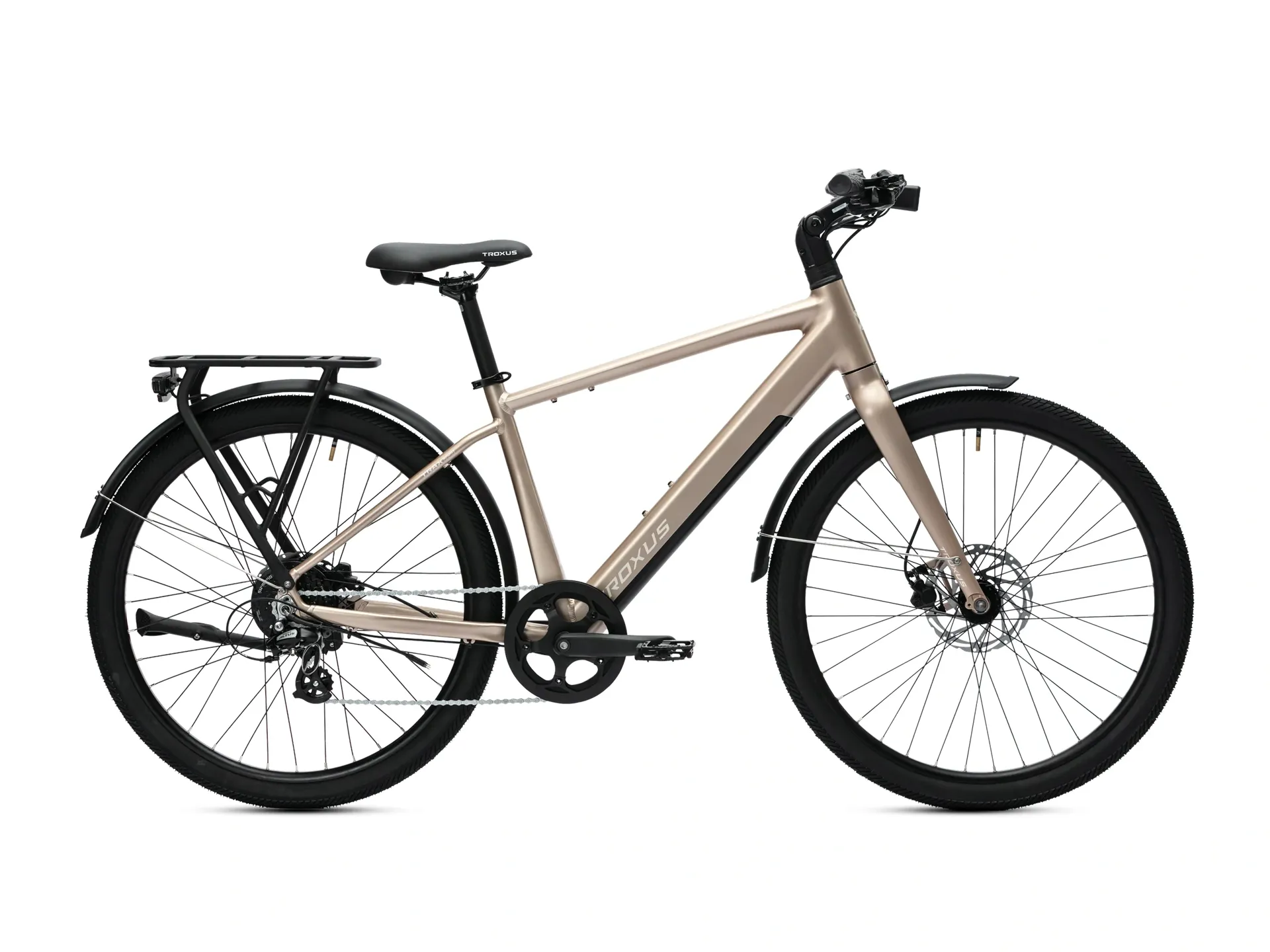

The Trax Sport is a sleek, fitness-focused commuter e-bike designed for city streets, featuring a lightweight frame and agile handling.
The Trax Sport is a sleek, fitness-focused commuter e-bike designed for city streets, featuring a lightweight frame and agile handling.
Troxus Usa

Troxus Usa Trax Sport Mid-Step Small - Bronze

$1,899.99
Size Guide
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Troxus Usa Trax Sport Mid-Step Small - Bronze

Season:2025/2026

Brand:Troxus Usa

Code:10870100296

The Trax Sport is a sleek, fitness-focused commuter e-bike designed for city streets and agility. It is built for those who live fast and ride light.

The Trax Sport features a lightweight frame, rigid aluminum fork, and straighter handlebars for agile city handling. This fitness-focused commuter e-bike is designed for speed, simplicity, and zero compromises. With a maximum torque of 50Nm, it delivers reliable power for quick takeoffs and confident hill climbs. Riders can effortlessly switch between torque or cadence sensors to match their preferred ride style.

The bike is sleek and minimalist on the outside while being fully tech-equipped on the inside. A color Bluetooth display keeps you informed on speed, range, and more. Its slimmed-down build makes it easy to carry upstairs or lift into a car. The UL-2271 Certified 10Ah battery with Samsung® Cells offers a solid range for daily urban rides, with an optional 252Wh piggy-back battery available to extend range further.

Features:

  • Lightweight frame and rigid aluminum fork
  • 50Nm maximum torque
  • Switchable torque or cadence sensor modes
  • Color Bluetooth display
  • UL-2271 Certified 10Ah battery with Samsung® Cells
  • Optional 252Wh piggy-back battery
Technical Information
  • Frame Size
    Small (5'0" - 5'5"), Medium (5'5" - 5'10"), Large (5'9" - 6'4")
  • Wheel Size
    27.5" x 1.75"
  • Max Speed
    Up to 20 MPH (throttle) / 25 MPH (pedal assist)
  • Range
    Up to 45 miles / 65 miles with range extender
  • Weight Limit
    300 lbs total (245 lbs rider / 55 lbs rear rack)
  • Net Weight
    47 lbs
  • Motor
    Jiabo Hub-Drive, 36V/500W+ peak power, 50Nm peak torque
  • Battery
    36V/10Ah (360Wh) Samsung cells, UL-2271 certified
  • Pedal Assist
    0-5 levels
  • Brakes
    Tektro hydraulic with brake sensors
  • Rotors
    180mm / 160mm
  • Frame Material
    6061-T6 Aluminum
  • Fork
    Rigid Aluminum, 700c, 1.5" tapered
  • Drivetrain
    Shimano Altus 8-speed
  • Tires
    KENDA K-1266 Urban 27.5" x 1.75"
  • Handlebar
    Zoom Alloy, 31.8mm x 700mm, 20mm rise, 9 degree backsweep
  • Seat Post
    Alloy, 30.9mm x 400mm, adjustable
Sizing Information
Measurement Small Medium Large
Frame Size 5'0" - 5'5" (153 - 166 cm) 5'5" - 5'10" (166 - 178 cm) 5'9" - 6'4" (176 - 193 cm)
Wheel Size 27.5" x 1.75" 27.5" x 1.75" 27.5" x 1.75"
A - Seat Tube Length 394 mm 445 mm 495 mm
B - Seat Tube Angle 74° 74° 74°
C - Head Tube Length 140 mm 145 mm 155 mm
D - Head Tube Angle 69° 69° 69°
E - Effective Top Tube Length 552 mm 590 mm 609 mm
F - Bottom Bracket Height 285 mm 285 mm 285 mm
G - Bottom Bracket Drop 62 mm 62 mm 62 mm
H - Chainstay Length 455 mm 455 mm 455 mm
I - Fork Offset 45 mm 45 mm 45 mm
J - Wheelbase 1082 mm 1121 mm 1141 mm
K - Frame Reach 388 mm 425 mm 441 mm
L - Frame Stack 571 mm 576 mm 585 mm
Fork Travel 0 mm 0 mm 0 mm
Fork Height 420 mm 420 mm 420 mm
Specification Details
Max Speed Up to 20 mph on throttle / Up to 25 mph on pedal assist
Range Up to 45 miles per charge / Up to 65 miles with range extender
Weight Limit Maximum load: 300 lbs / Rider: 245 lbs / Rear rack: 55 lbs
Net Weight 47 lbs

E-Systems

Component Specification
Motor Jiabo Hub-Drive Motor 36V/500W+ Peak Power, 50Nm Peak Torque
Battery UL-2271 Certified, Internal, Removable, Lithium Ion, 36V/10Ah (360Wh) with Samsung Cells, Optional 252Wh Range Extender Battery (36V/7A)
Display Stem-Integrated Color Display, Bluetooth, with Turn Signals and Multi-Function Remote
Sensor Switchable Torque and Cadence Sensor Modes
Pedal Assist 0-5 Level Pedal Assist
Charger 2A / 100-240V Input / 42V Output
Lights Front Light and Rear Light
Controller 36Vx15A/12V

Components

Component Specification

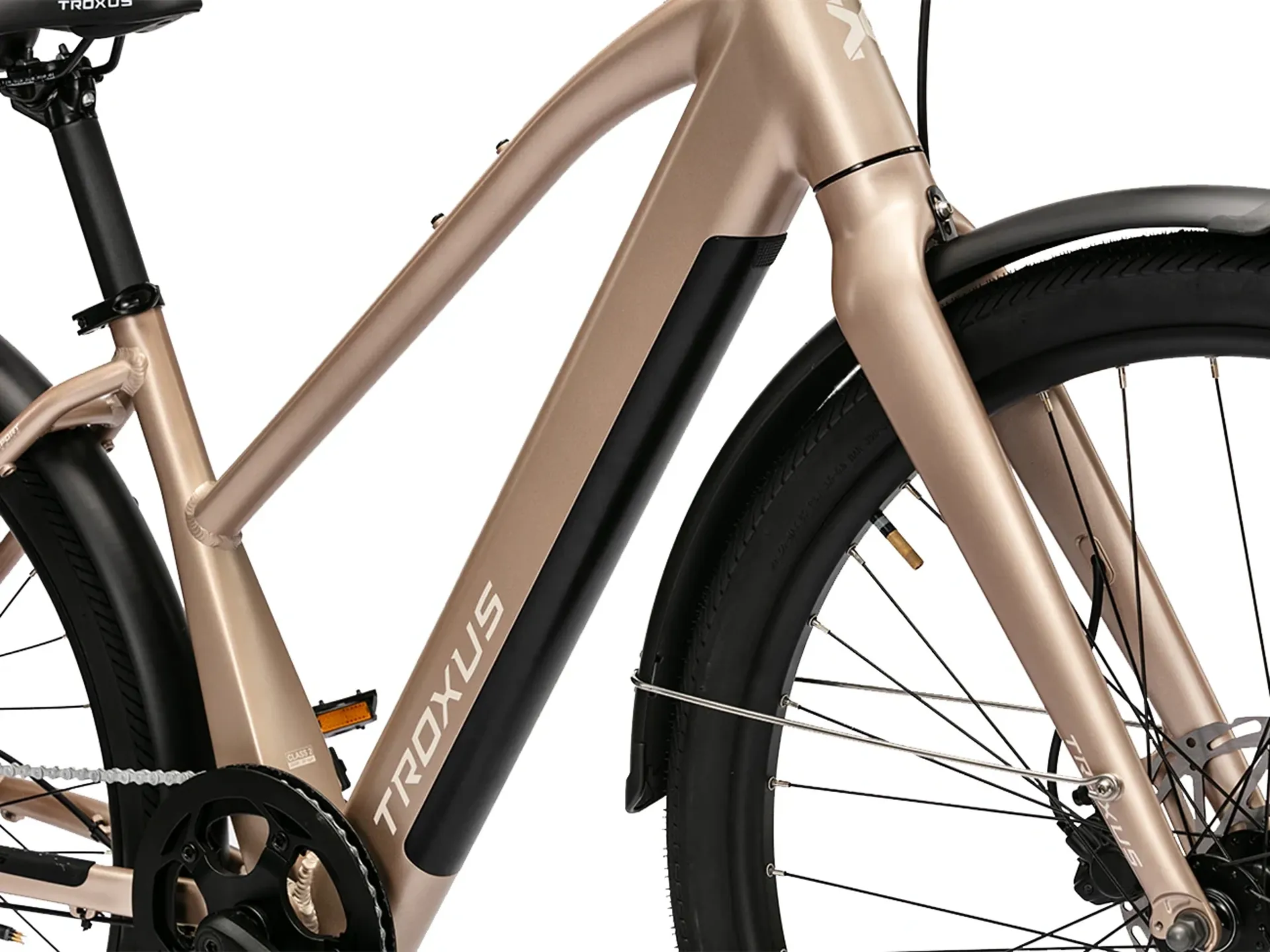

Frame 6061-T6 Aluminum, Mid-Step and Step-Over
Fork Rigid Aluminum, 700c, Tapered 1.5", Internal Front Brake Routing
Chain KMC 1/2" x 3/32"
Crankset Aluminum, 46T, with Alloy Chainring and Single Chainguard, Square Taper, 170mm

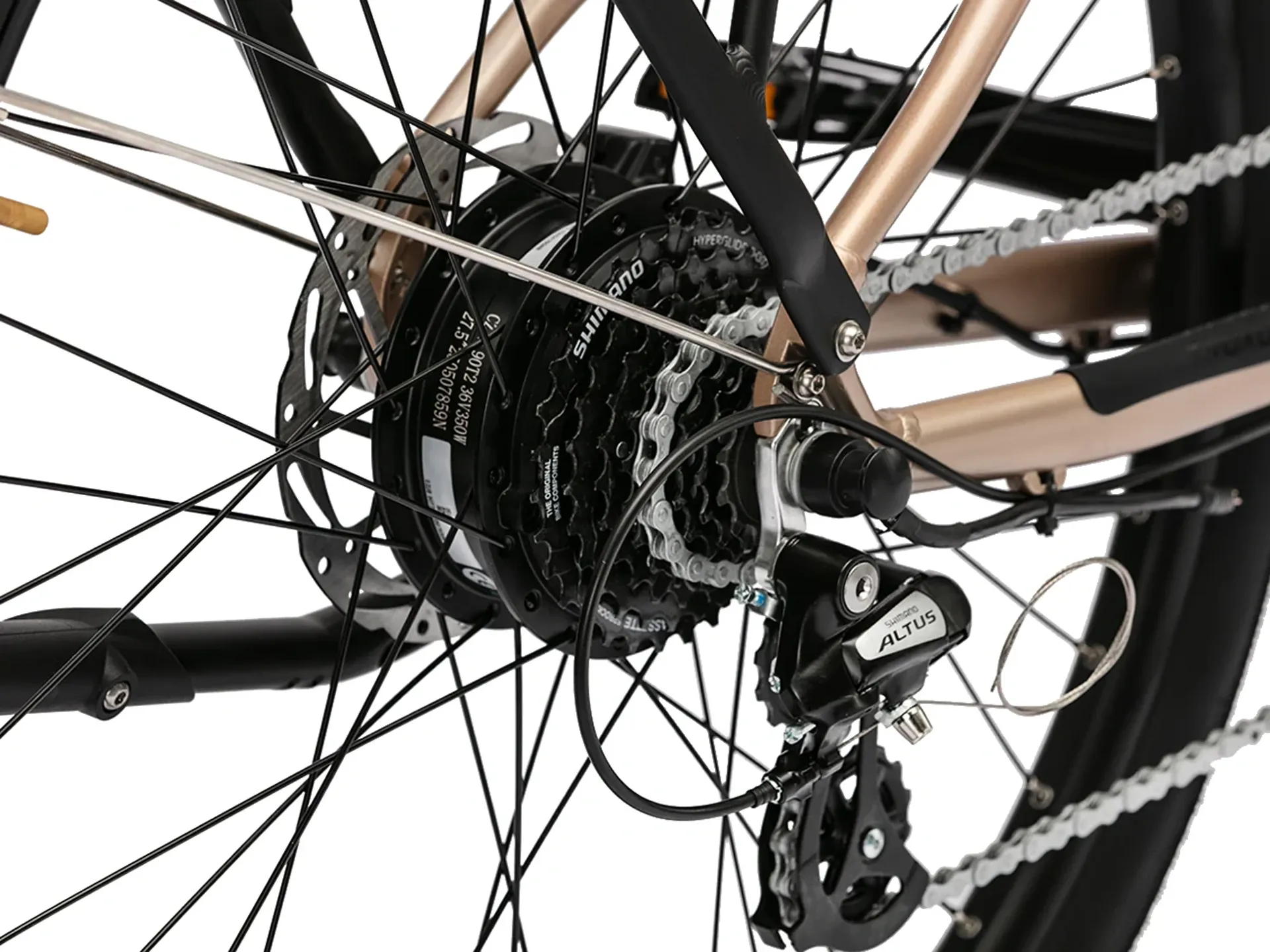

Rear Derailleur Shimano RD-M310-L, Altus, 8-Speed
Cassette Shimano 8-Speed, 12-32T
Shifter Shimano 8-Speed
Bottom Bracket Square Taper Sealed Bearings, Torque and Cadence Sensors Included
Tires KENDA K-1266 Urban 27.5" x 1.75"
Front Hub Alloy, 14Gx36H, O.L.D. 100mm, 3/8" Axle, with Nuts

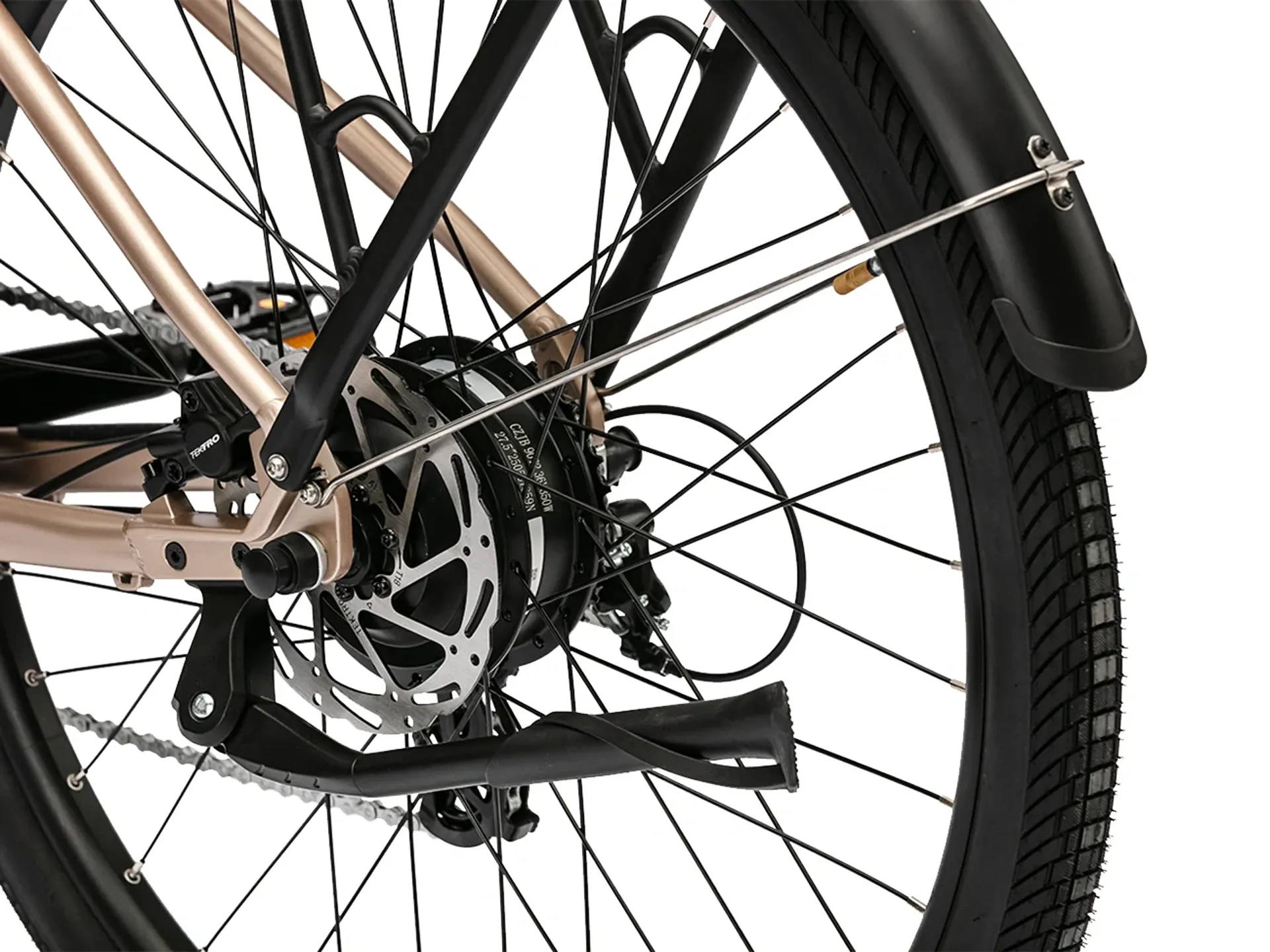

Rear Hub Jiabo 36V 350W+, 25 mph, 50Nm
Rims Alloy Double Wall, 27.5" x 2.0" with Eyelets
Spokes Stainless 14G Front / 13G Rear

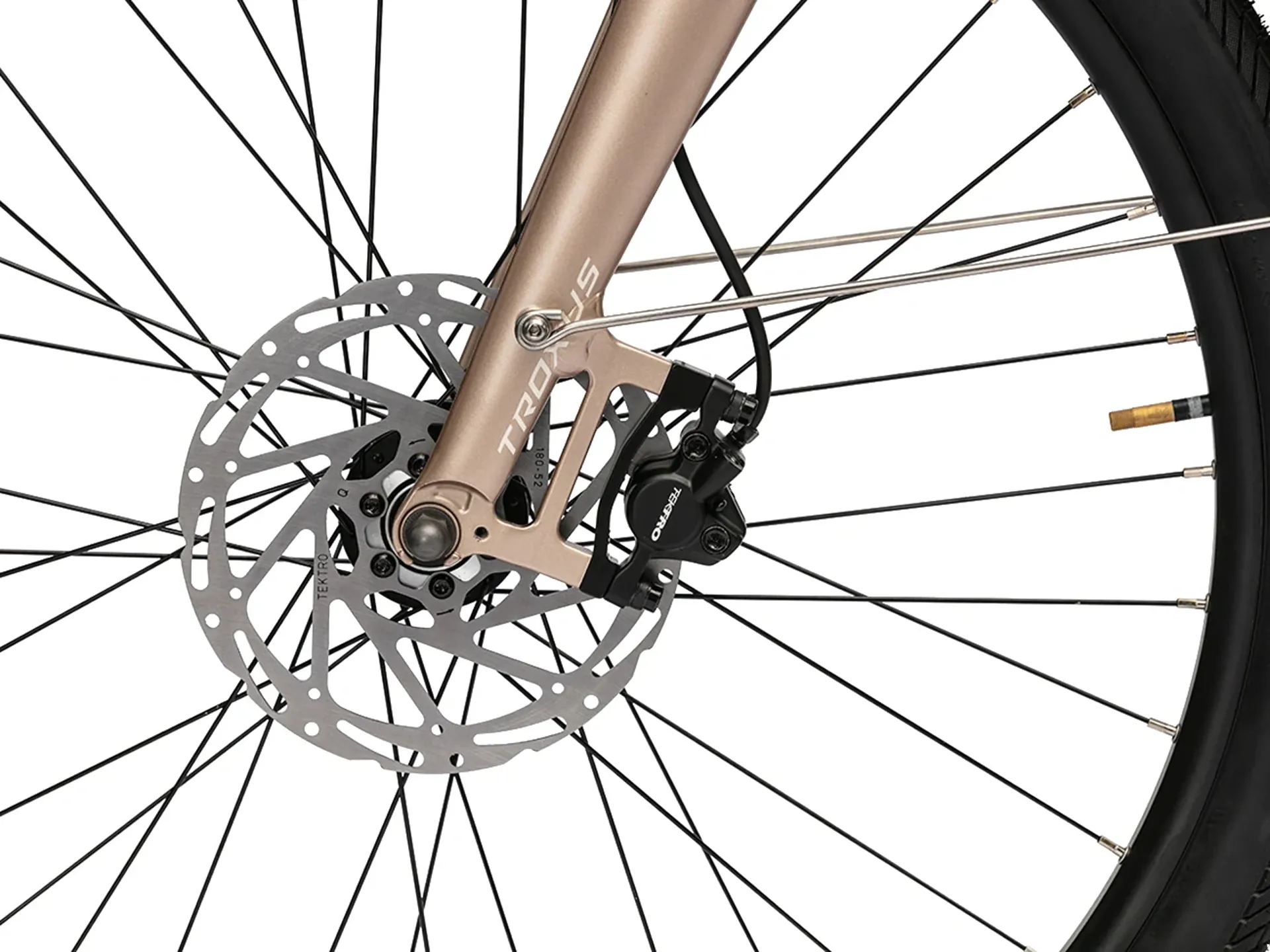

Brakes Tektro Hydraulic, with Brake Sensors
Rotors 180mm / 160mm

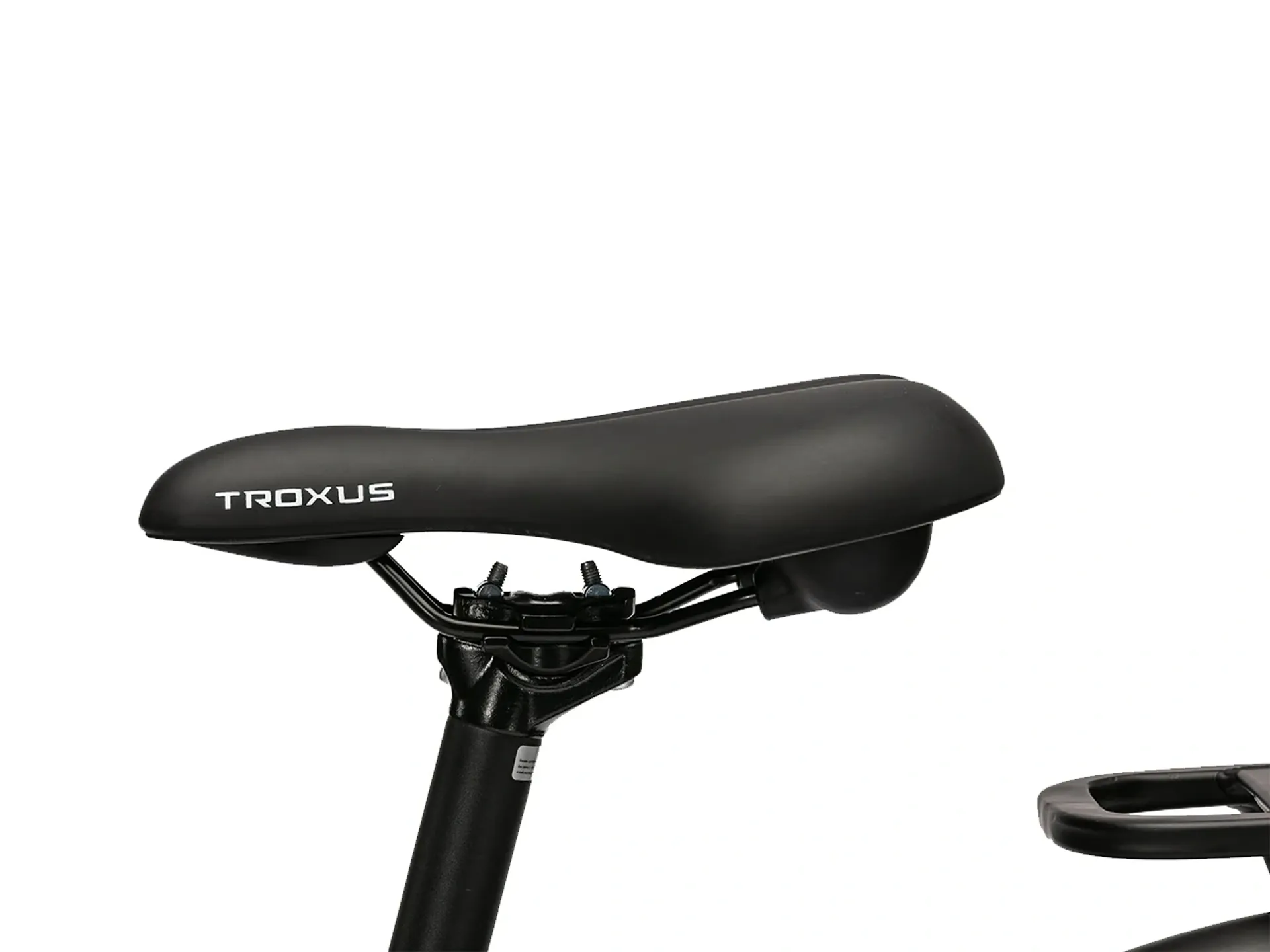

Saddle Troxus Comfort, 195mm Wide
Seat Post Alloy, 30.9 x 400mm, Adjustable
Seat Post Clamp Alloy, 35mm with Quick Release

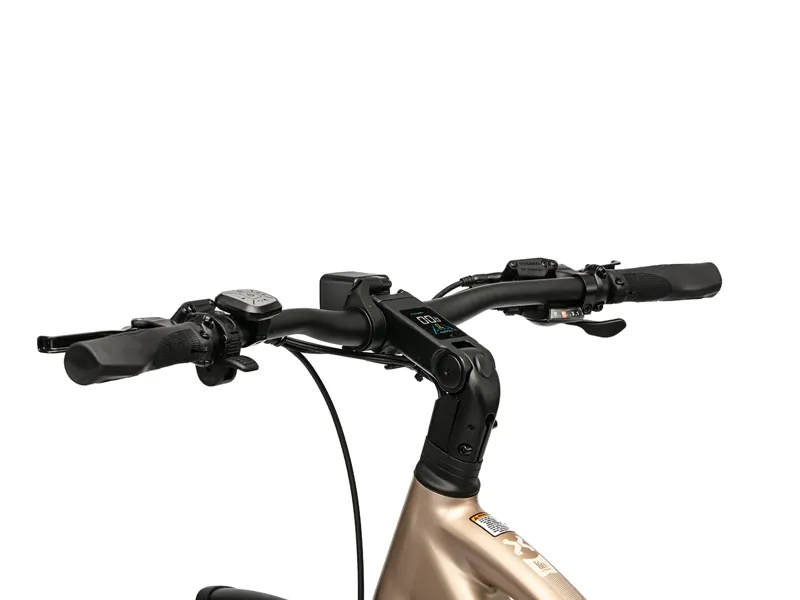

Stem Alloy, Forged, Adjustable, with Integrated Display, Ext. 110mm, with Internal Cable Routing
Handlebar Zoom Alloy, 31.8mm x 700mm Wide, 20mm Rise, 9 Deg. Backsweep
Grips Ergonomic Comfort
Pedals 9/16" Alloy Platform with Reflectors
Headset ICR Type, Threadless, Internal 57/62mm, with Internal Cable Routing

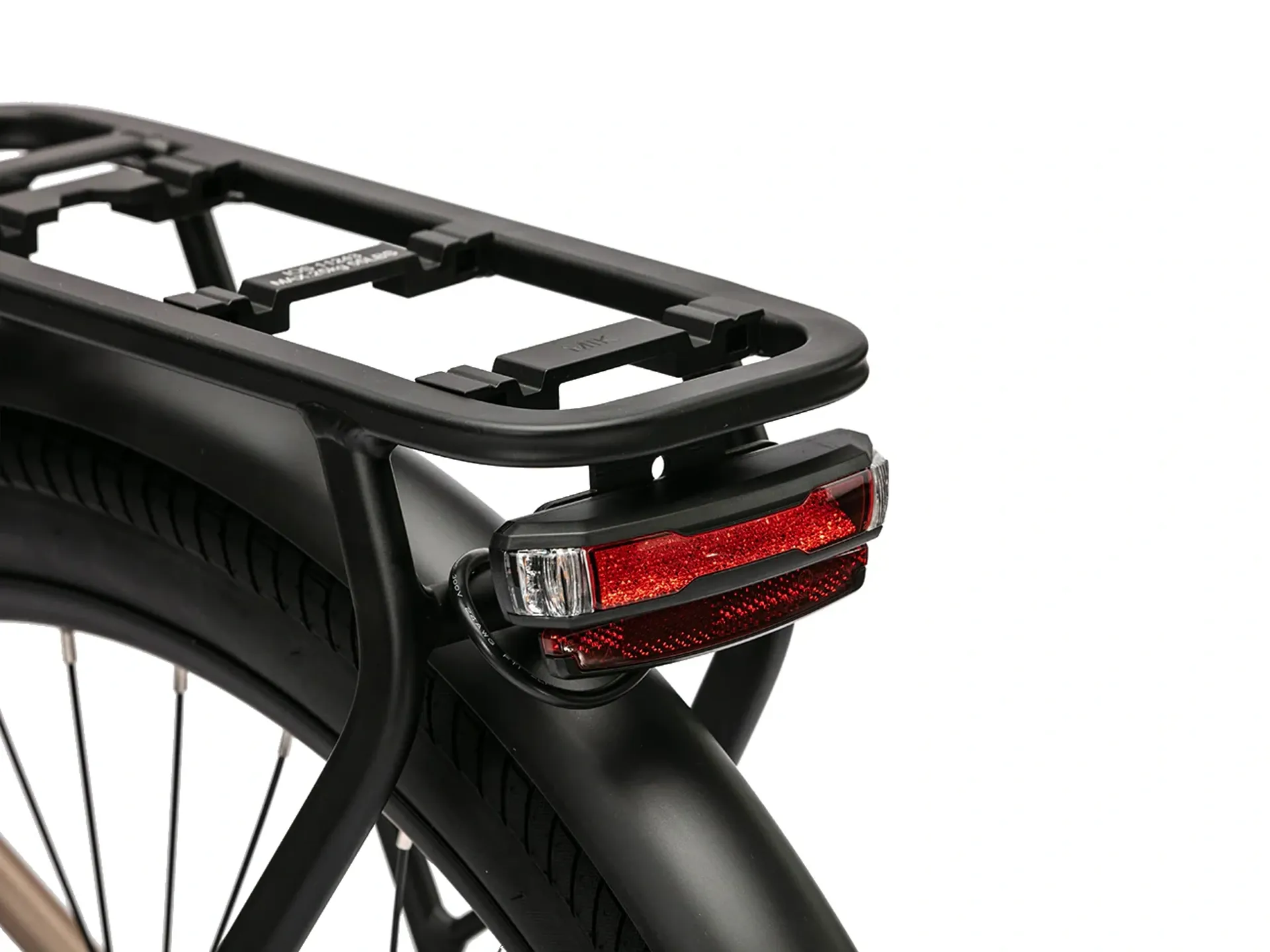

Rack Lightweight Alloy Rear Model, MIK-Compatible
Fender Plastic 27.5"
Kickstand Adjustable Side Kickstand
