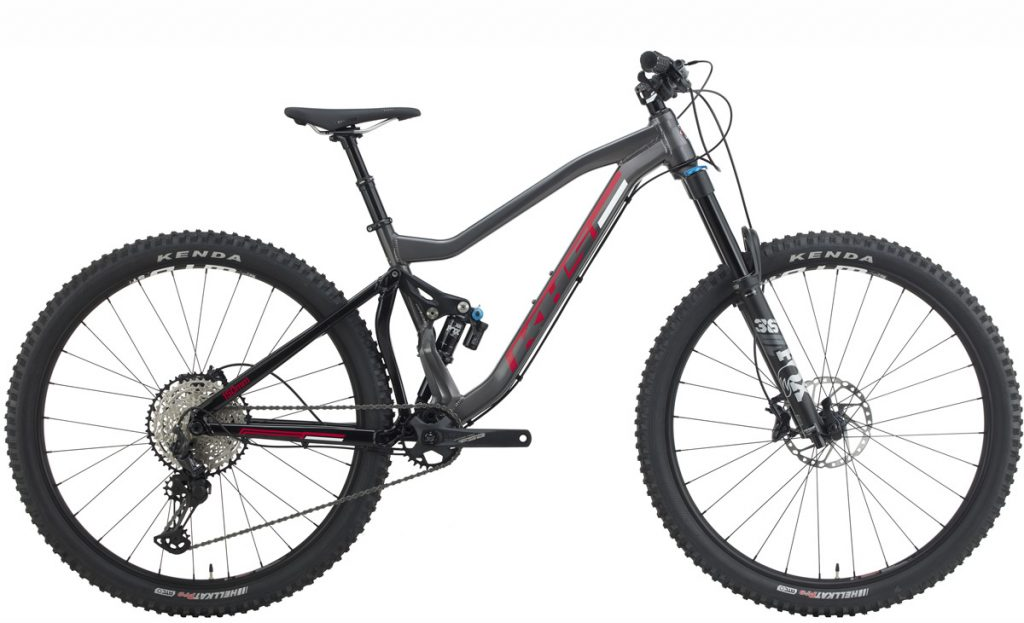

KHS 7500

KHS 7500
$3,999.00 - $4,759.00
Dark Gray
Please select options
Order now and pick up in-store for free


- 12-speed
- 150mm travel aluminum frame
- 800mm wide FSA Grid handlebar
- Fox Float fork & shock
- Shimano M6120 4-Piston hydraulic disc brakes

Wheel size:
- Size Small: 27.5-inch
- Sizes Medium – X-Large: 29-inch


Frame FSS 29/650B+ 150mm, 6061 Aluminum w/Custom Formed Double Butted T/T & D/T, 1.5 Taper, 12 x 148 Boost Rear Axle, w/Replaceable Derailleur Hanger, 29x2.4
Fork FOX Float 36, 29 Evol Air, Performance, 160mm, Grip w/3-Pos. Lever., Ext Rebound Adj., 1-1/8~1.5 Taper, 15mm x 110 QR Boost, 29 x 2.6 Compatible
Rear Shock FOX Float DPX2 Trunnion, Performance, 3-Pos, Evol w/LV Eyelet
Rims WTB ST, S: i35, M-XL: i29 TCS, Disc, Double Wall, 28H, Tubeless-Ready
Hubs Front: Shimano HB-M7110-B CenterLock Disc, 15x110mm Axle, Boost
Rear: Shimano FH-M7110-B Disc Cassette, 12 x 148mm, Boost
Spokes 14/15G Double Butted Stainless, Black w/Aluminum Nipples, 28x28
Tires Kenda Hellkat, S: 27.5 x 2.6, M-XL: 29 x 2.4, ATC, 120 TPI Folding, Tubeless-Ready
Bottom Bracket FSA Mega EXO, Outboard Bearing
Crankset FSA Gamma Pro, 2-pc., 30T Megatooth, Boost, Mega EXO, S: 170, M-XL: 175
Shifters Shimano New SLX, SL-M7100, 12s, Trigger, Right Only, I-Spec EV
Rear Derailleur Shimano XT, RD-M8100
Cassette/Freewheel Shimano CS-M7100, 10-51T, 12-Speed
Chain Shimano CN-M7100
Brakes Shimano M6120 4-Piston, Hydraulic Disc, Servo Wave, 180/160mm
Rotors RT64 CenterLock
Brake Levers Shimano M6100, Servo Wave, I-Spec EV
Handlebars FSA Grid 35mm, 800mm x 20mm
Tape/Grips Q2 Lock-on
Stem FSA Grid 3D Forged, 35mm
Headset FSA Orbit 1.5E, Zero Stack, 1-1/8"~1.5
Seatpost Kind Shock Rage-I, Integra w/Remote, Travel Adjust, 31.6mm
Saddle WTB High Tail, CrMo Rail
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Dark Gray / Small / 27.5-inch 756928919848 911750000
Dark Gray / Medium / 29-inch 756928919855 911750001 210000033756
Dark Gray / Large / 29-inch 756928919862 911750002 210000033757
Dark Gray / X-Large / 29-inch 756928919879 911750003 210000033758
